Exquisite Aerial Photography Camera Gimbal Stabilizer Helicopter Drone Vibration Protection GR3-30D-A Compact Wire Rope

By building your own Camera Gimbal, the GR Series compact wire rope isolators is your best choice!

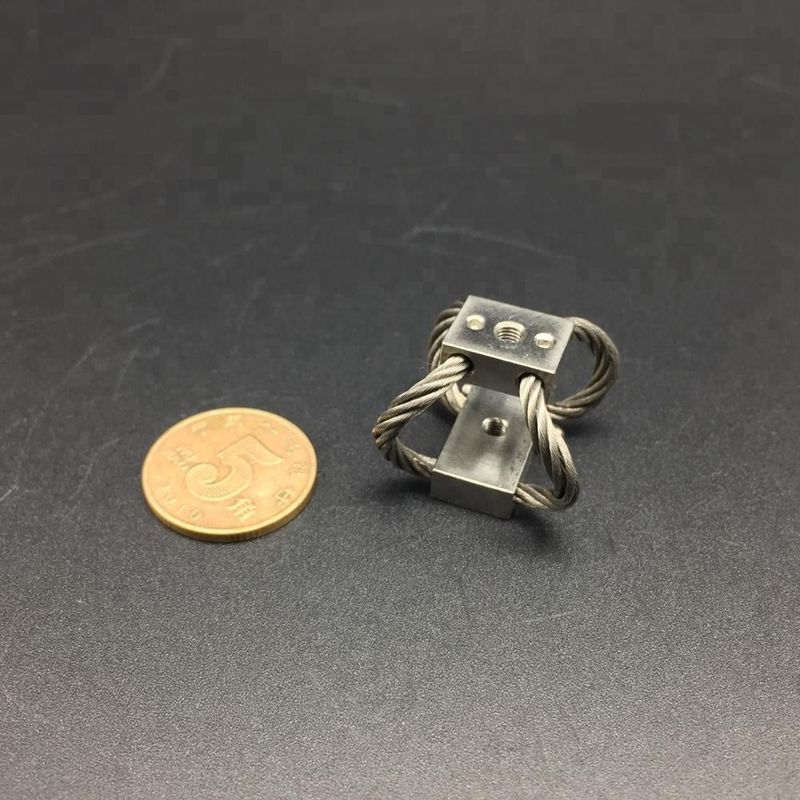

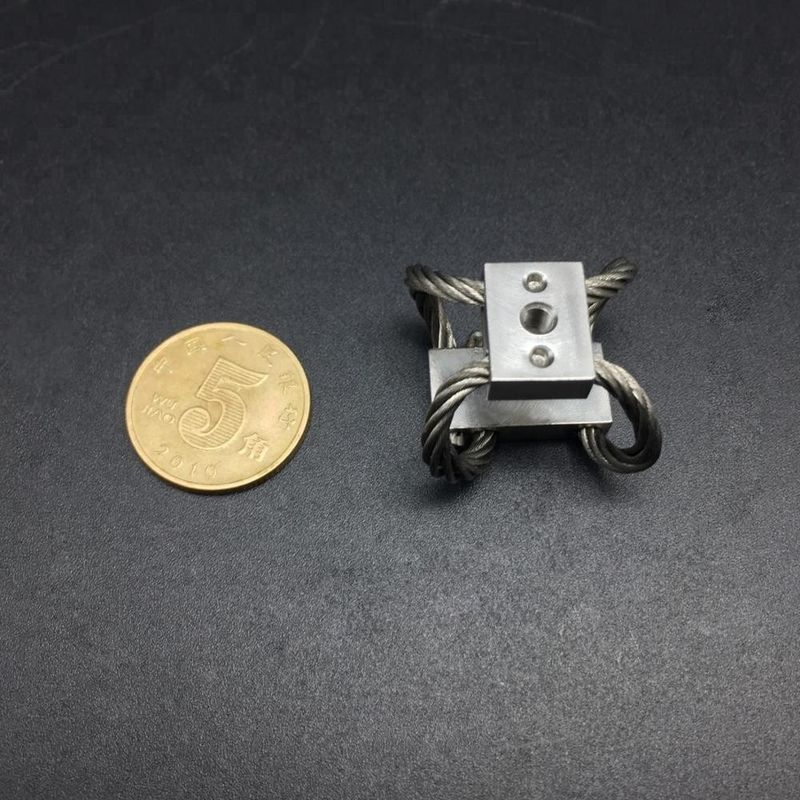

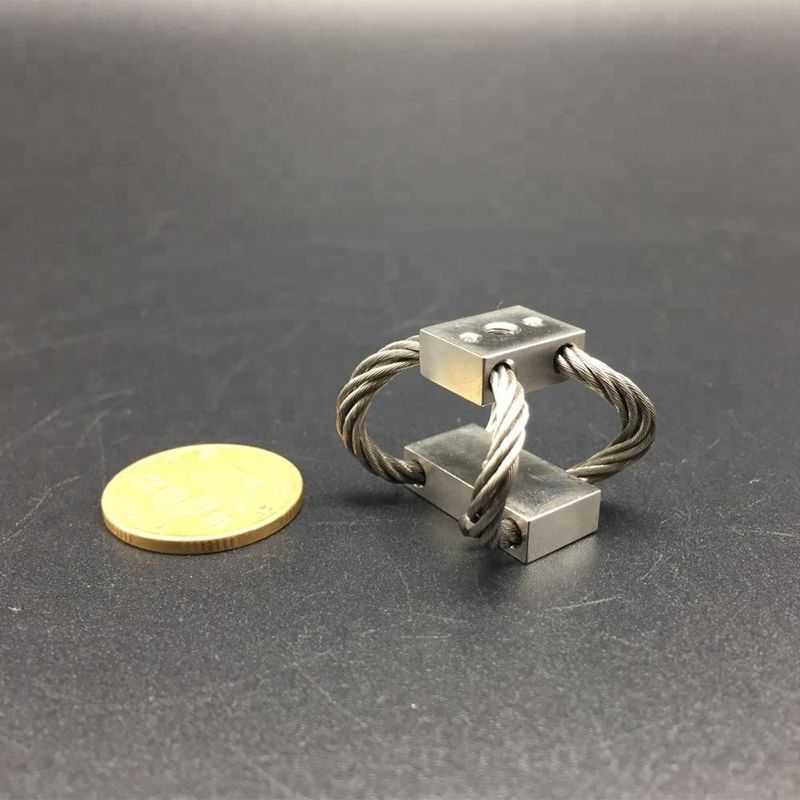

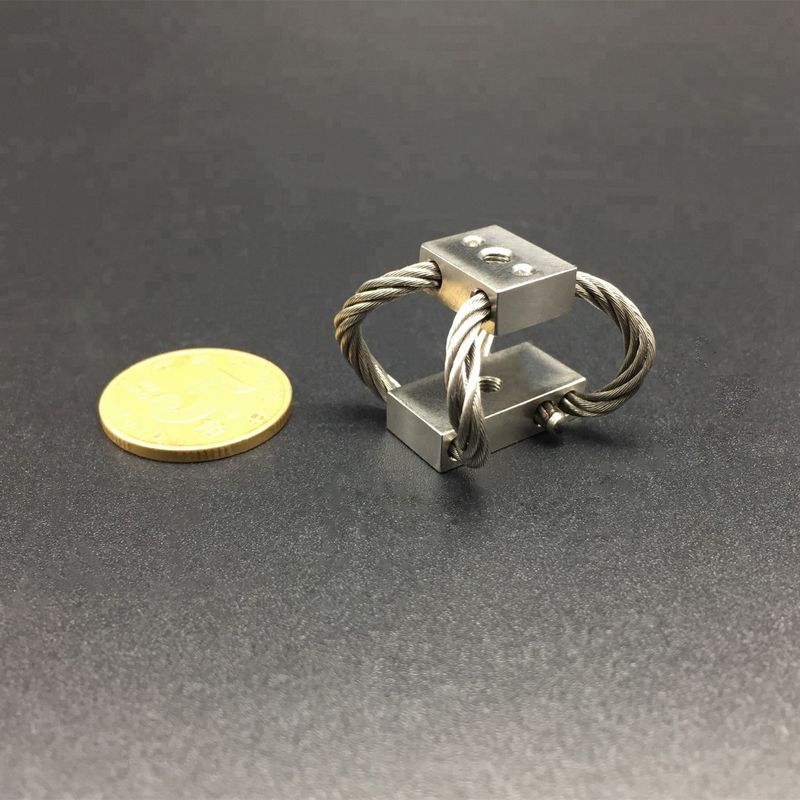

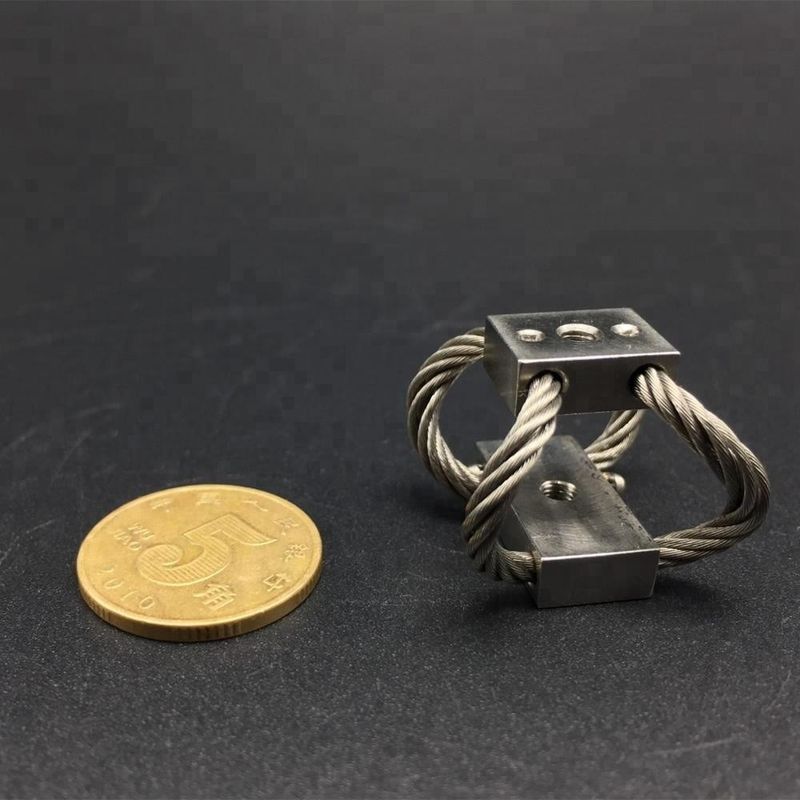

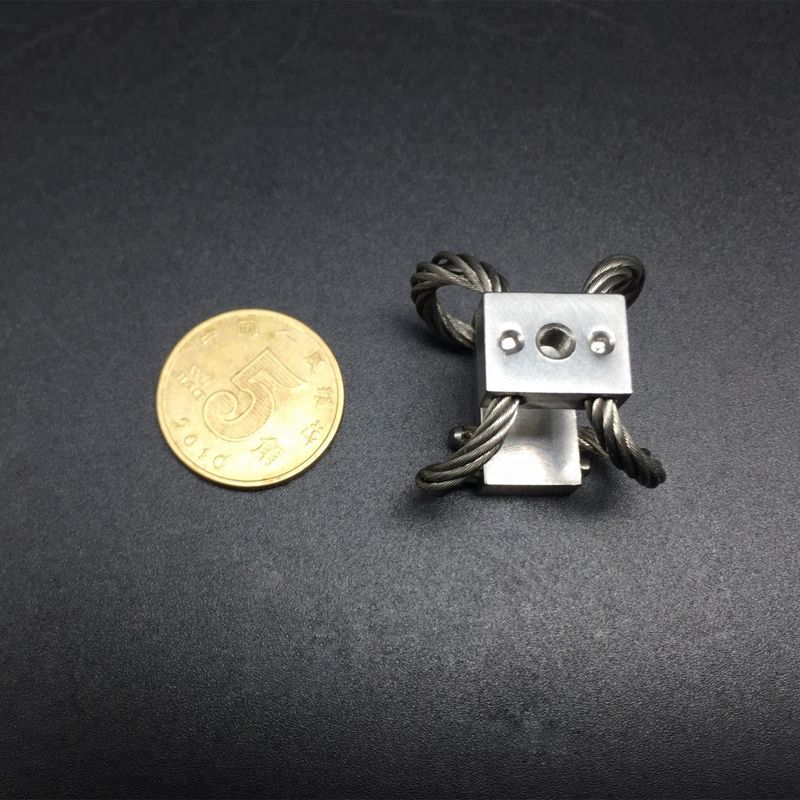

The GR3-30D-A compact wire rope isolator is one type aerial photography camera vibration isolators from the GR3 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

The maximum static load of GR3-30D-A is 30N (3.06kg), which is specially used for helicopter drone with cameras.

The GR3-30D-A model can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.

Both compact wire rope isolators and wire rope isolators can be used on galley components where motors and fans produce vibrations onto surrounding structures. They can also be used to control vibration and thermal expansion.

Nowadays, the GR series isolators are used widely in the field of RC car aerial drone systems stabilizer, helicopter drone gimbal stabilizer, video project stabilizer, drone shooting stabilizer, UAV camera and camera stabilizer, etc.

• Model Number Code Ordering of GR3-30D-A:
• Structural Diagram of GR3-30D-A:
• Dimension of GR3-30D-A:
• Mounting Options of GR3-30D-A:
• Compression of GR3-30D-A:
• 45° Compression of GR3-30D-A:
• Shear/Roll of GR3-30D-A:

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Applications of Wire Rope Isolators *

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.

Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.

Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.

Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
