Aluminum Small Shock Isolators Helicopter Drone Shock And Vibration Mounts

By building your own Camera Cinema Gimbal or Camera Crane, the GR4 Series is your best choice!

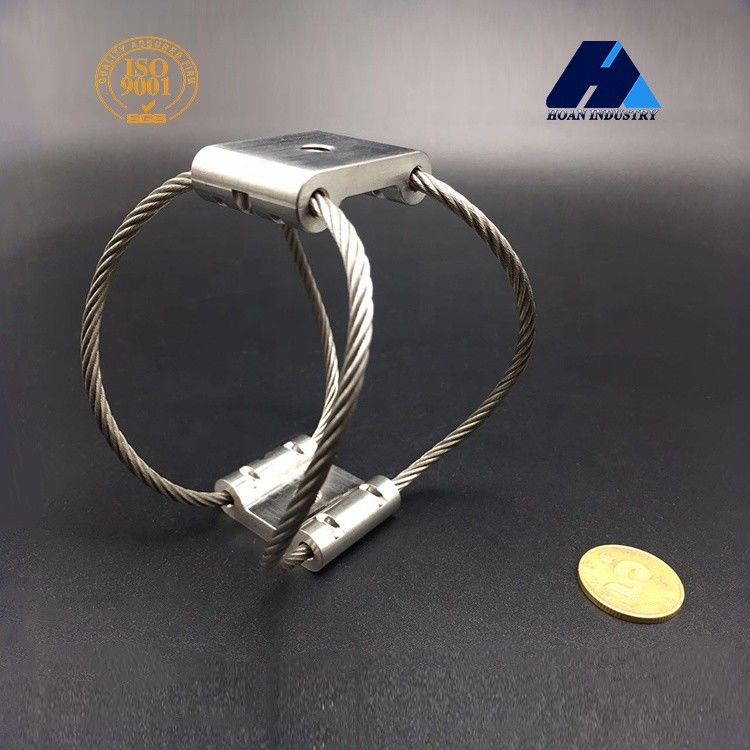

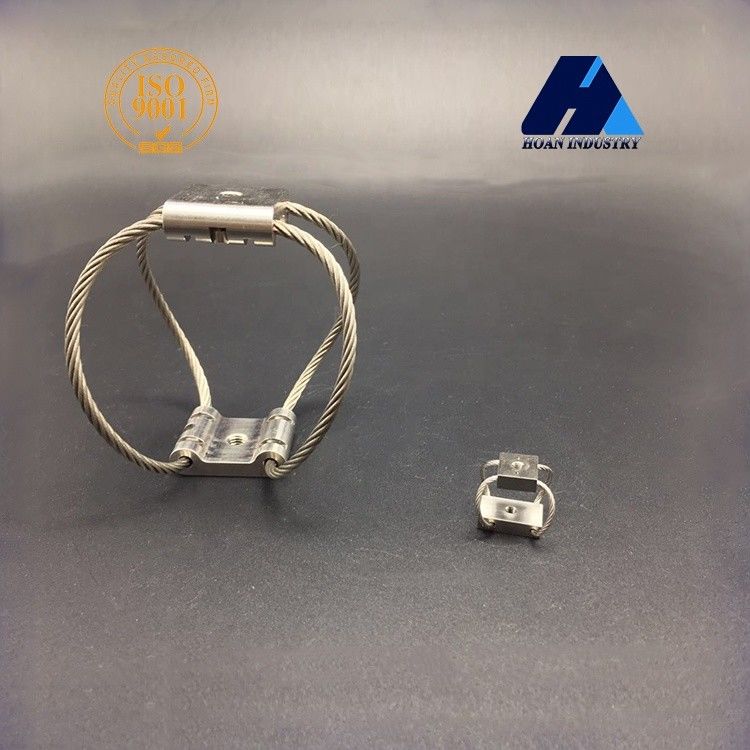

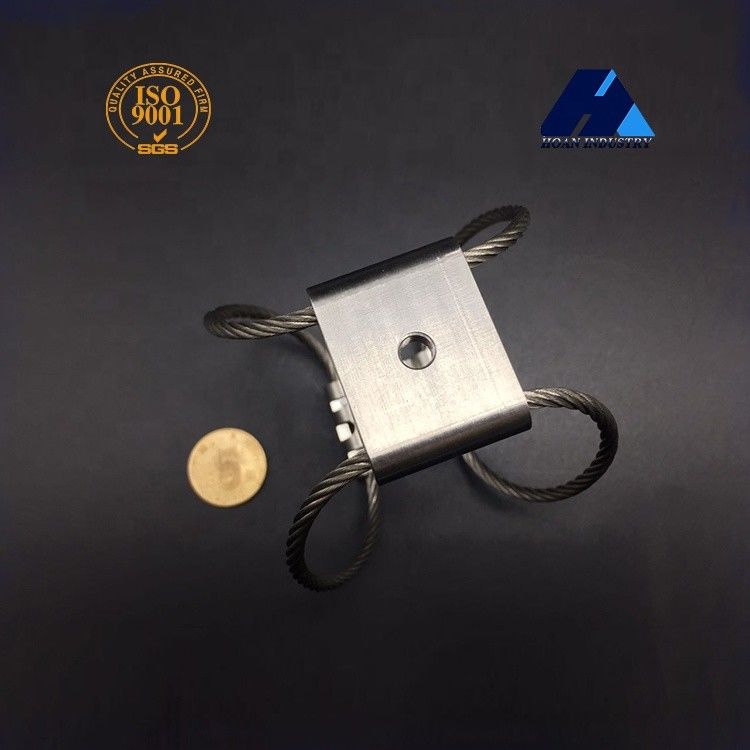

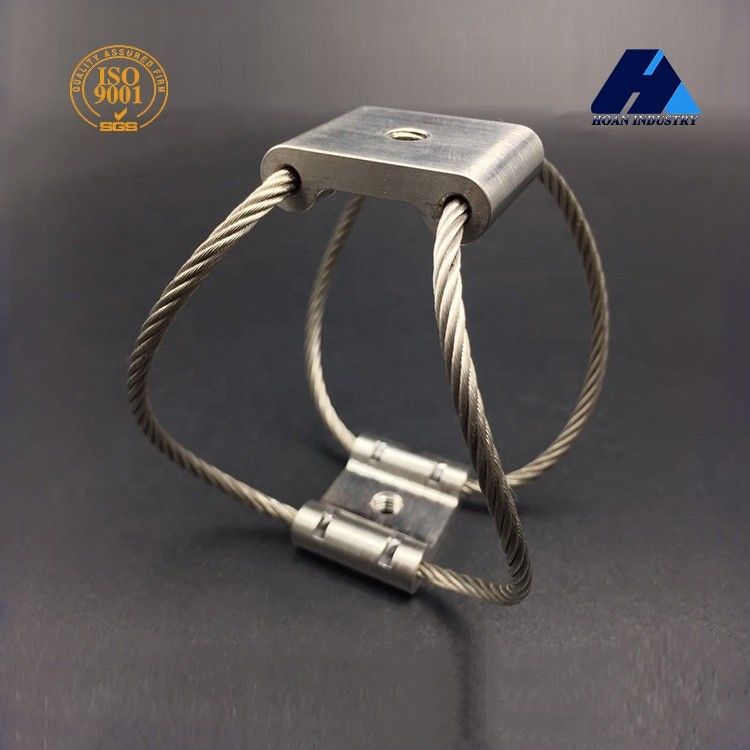

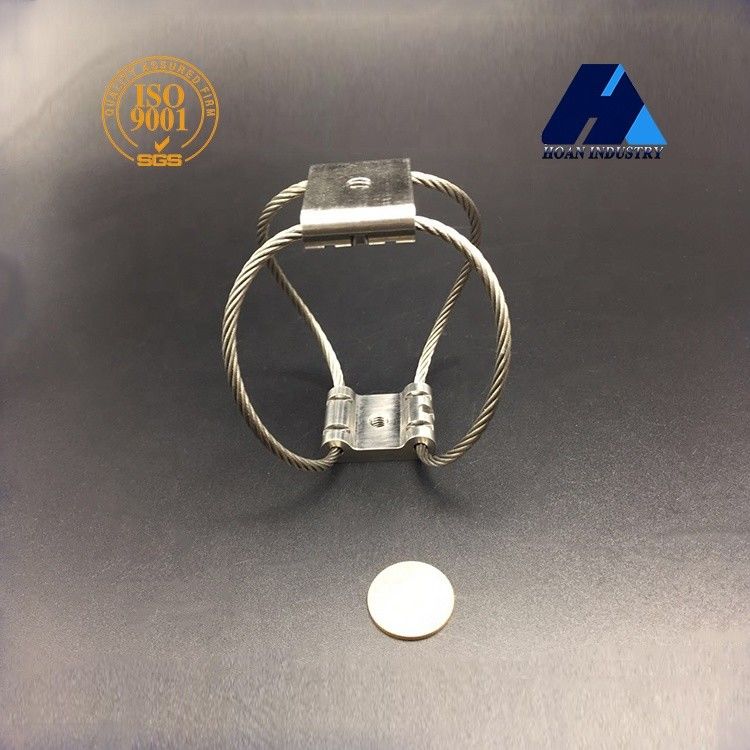

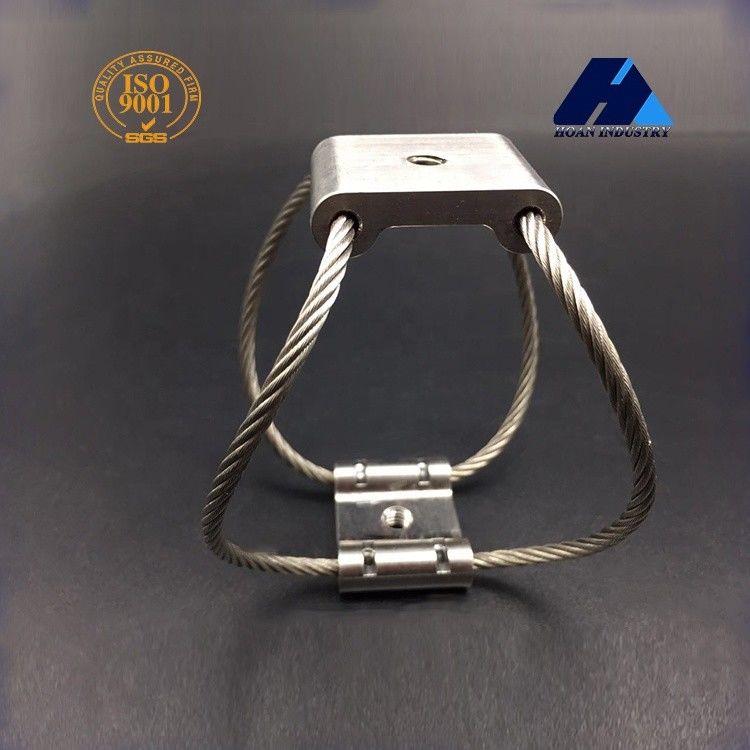

The GR4 Series compact wire rope isolators is made by the 3.2mm diameter wire ropes winded in the two mounting bars, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

There are 4 models included in the GR4 series, which has the max static load from 6.7N (0.68kg) to 24N (2.45kg).

The GR4 Series isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce. With stainless steel material, the GR series isolators have perfect performance of water-proof, anticorrosion as well as durability.

Nowadays, the GR series isolators are used widely in the field of photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.

Both compact wire rope isolators and wire rope isolators can be used on galley components where motors and fans produce vibrations onto surrounding structures. They can also be used to control vibration and thermal expansion.

• Model Number Code Ordering of GR4 Series:
• Structural Diagram of GR4 Series:
• Dimension of GR4 Series:
• Mounting Options of GR4 Series:
• Compression of GR4 Series:
• 45° Compression of GR4 Series:
• Shear/Roll of GR4 Series:
•

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Main Applications of Compact Wire Rope Isolators *

* Aerial Photography Camera Gimbal Applications Show*
