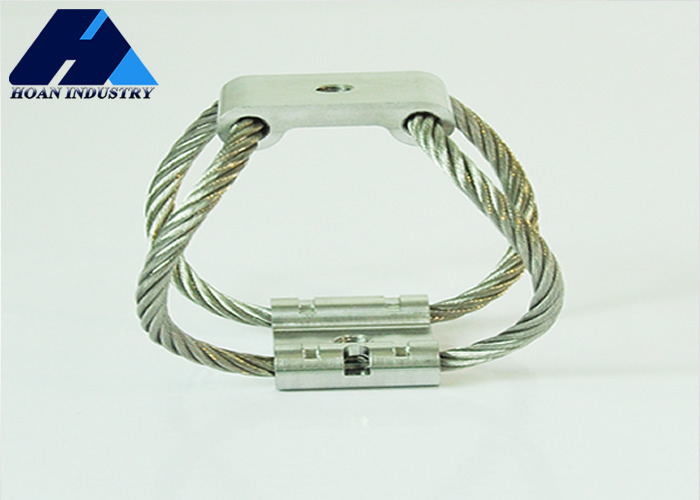

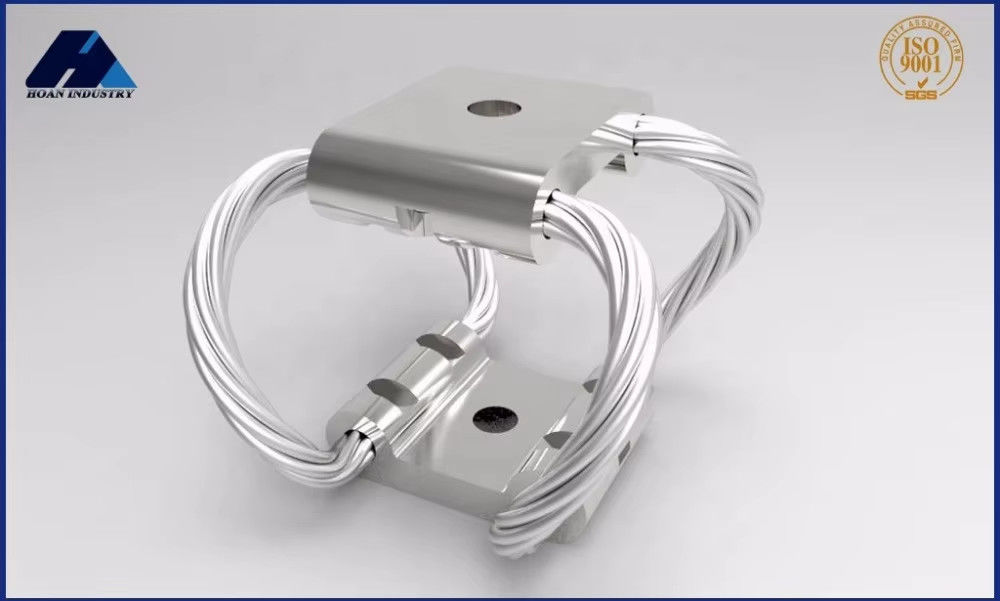

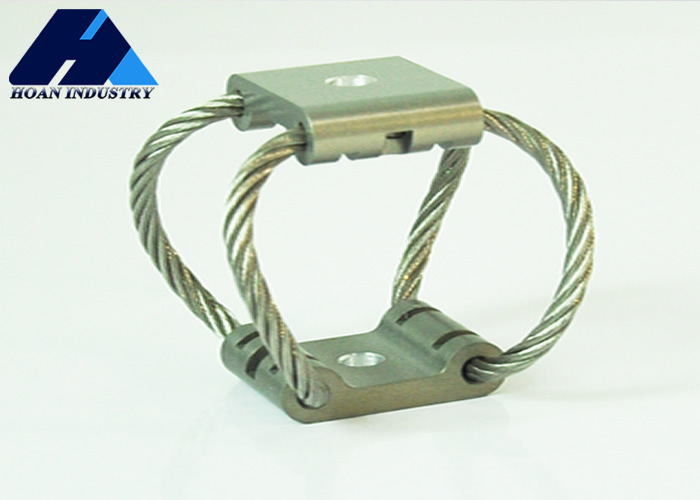

Name: GR4-13A-A Wire Rope Vibration Isolator 13N Load 59mm Width
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR4-13A-A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

GR4-13A-A Wire Rope Vibration Isolator 13N Load 59mm Width

wire rope vibration isolator 13N load

wire rope isolator 59mm width

GR4-13A-A vibration isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015 Certificate

Model Number:

GR4-13A-A

Document:

GR series.pdf

Request A Quote

GR4-13A-A Wire Rope Vibration Isolator 13N Load 59mm Width

Product Details

Number Of Strands:

Axial Stiffness:

50N/mm

Compression Ratio:

1:2

Working Temperature:

-55~120

Isolation Frequency Range:

5Hz To 100Hz

Number Of Wires:

Port:

Xi'an Or Specified

Installation Type:

Horizontal/Vertical

Weight:

0.2kg

Flexibility:

High

Installation Orientation:

Vertical Or Horizontal

Overall Width:

59mm

Highlight:

wire rope vibration isolator 13N load

wire rope isolator 59mm width

GR4-13A-A vibration isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

GR4-13A-A Wire Rope Vibration Isolator 13N Load 59mm Width

Get Best Price

GR4-18A-A Wire Rope Vibration Isolator 18N Load 10Hz Frequency

Get Best Price

GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments

Get Best Price

Video

Wire Rope Vibration Isolator 1/4 Inch Galvanized Steel 12 Inch Length

Get Best Price

86-29-88292913

Contact Now

Product Description

GR4-13A-A Sustainable Vibration Control with Environmentally Friendly Wire Rope Vibration Isolators

Product Specifications

Number Of Strands: 6

Axial Stiffness: 50N/mm

Compression Ratio: 1:2

Working Temperature: -55~120

Isolation Frequency Range: 5Hz to 100Hz

Number Of Wires: 7

Port: Xi'an or Specified

Installation Type: Horizontal/Vertical

Weight: 0.2kg

Flexibility: High

Installation Orientation: Vertical or Horizontal

Overall Width: 59mm

GR4 Series Overview

The GR series from Xi'an Hoan Microwave represents sustainable development in vibration control through innovative material and design solutions.

Environmental Advantages

Zero-pollution materials: Free of rubber and grease, eliminating aging pollution
Recyclable design: Stainless steel construction with over 90% recovery rate, reducing industrial waste
Energy consumption optimization: Reduces equipment vibration energy consumption, indirectly lowering carbon emissions

Dimension Parameters

Model	Height±1.5(mm)	Width (mm)	Weight(kg)	Mounting Options	Thru Hole(mm)	Thread(mm)	C'sink(°)
GR4-24A-A	42	47	0.63	A,B,C,D,E,S	∅7	M6*1.0	90
GR4-18A-A	53	54	0.63
GR4-13A-A	60	59	0.68
GR4-6.7A-A	75	68	0.77

Static-Load Performance

Mounting Bar Options

Material Options: Stainless Steel or Aluminum

Surface Treatments for Aluminum:

White Anodizing: Standard treatment that maintains aluminum's natural color while increasing surface hardness
Hard Anodizing: Provides superior hardness with darker finish, ideal for demanding applications

Customer Installation Example
