Name: GR4-18A-A Wire Rope Vibration Isolator 18N Load 10Hz Frequency
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR4-18A-A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

GR4-18A-A Wire Rope Vibration Isolator 18N Load 10Hz Frequency

wire rope vibration isolator 18N load

wire rope isolator 10Hz frequency

GR4-18A-A vibration isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015 Certificate

Model Number:

GR4-18A-A

Document:

GR series.pdf

Request A Quote

GR4-18A-A Wire Rope Vibration Isolator 18N Load 10Hz Frequency

Product Details

Isolation Frequency:

5Hz

Machinery Test Report:

Not Available

Type:

SHOCK ABSORBER

Shock And Vibration Resistance:

Excellent

Vibration Isolation Type:

Passive

Installation Method:

Vertical Or Horizontal

Length:

50mm

Relative Product:

Backdraft Damper

Manufacturer:

HoanCompany

Damping Ratio:

0.5

Height:

53mm

Shock Absorption:

Yes

Port:

Xi'an

Natural Frequency:

10 Hz

Highlight:

wire rope vibration isolator 18N load

wire rope isolator 10Hz frequency

GR4-18A-A vibration isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

GR4-13A-A Wire Rope Vibration Isolator 13N Load 59mm Width

Get Best Price

GR4-18A-A Wire Rope Vibration Isolator 18N Load 10Hz Frequency

Get Best Price

GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments

Get Best Price

Video

Wire Rope Vibration Isolator 1/4 Inch Galvanized Steel 12 Inch Length

Get Best Price

86-29-88292913

Contact Now

Product Description

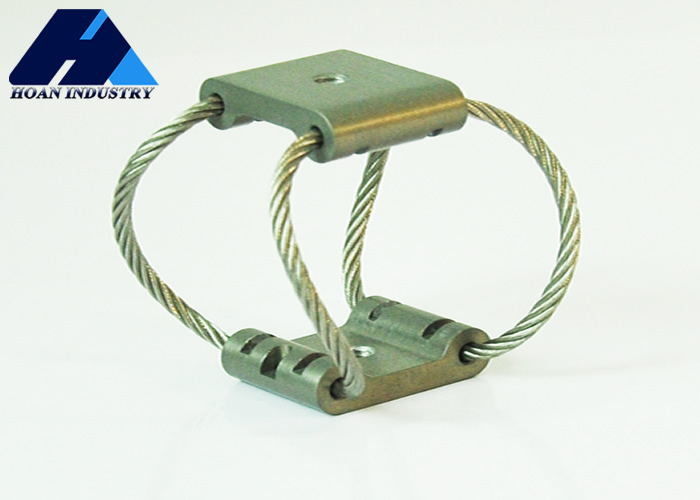

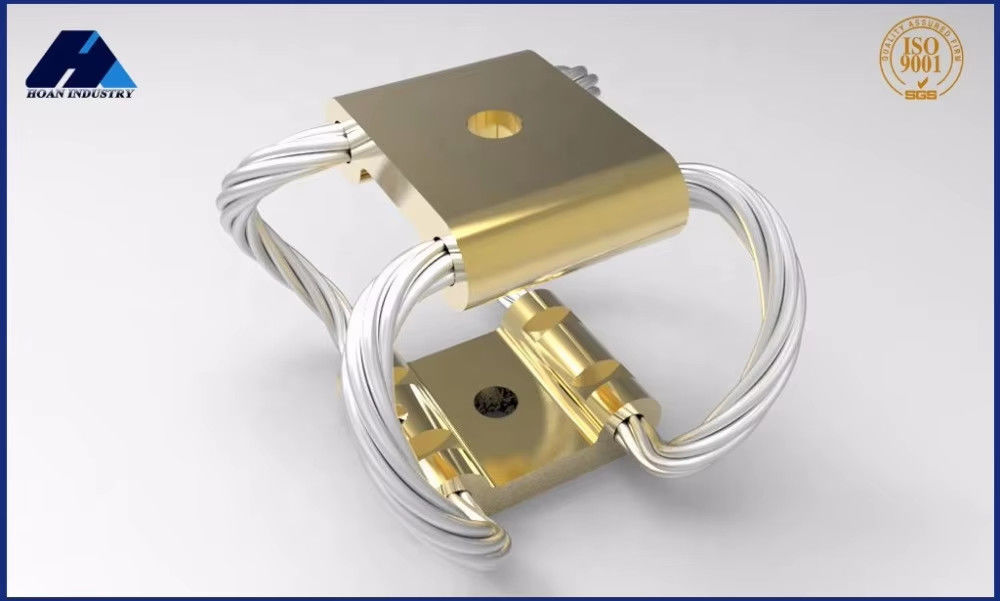

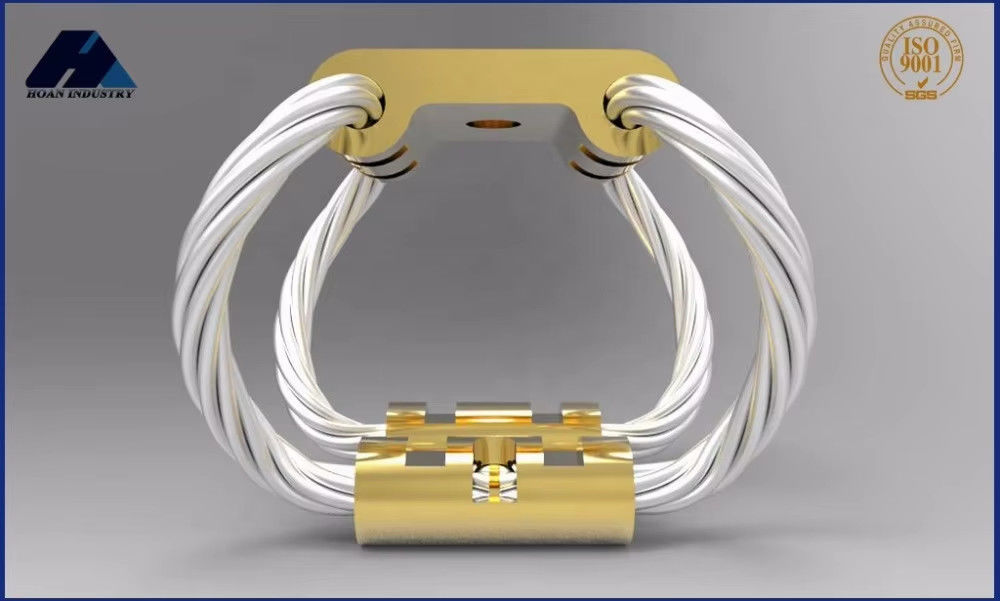

GR4-18A-A Wire Rope Vibration Isolator

Nonlinear Stiffness Characteristics for Wide-Frequency Vibration Isolation

Product Specifications

Attribute	Value
Isolation Frequency	5Hz
Type	SHOCK ABSORBER
Shock And Vibration Resistance	Excellent
Vibration Isolation Type	Passive
Installation Method	Vertical or Horizontal
Length	50mm
Height	53mm
Damping Ratio	0.5
Natural Frequency	10 Hz
Shock Absorption	Yes
Manufacturer	HoanCompany
Port	Xi'an

Product Description

GR Series Wire Rope Vibration Isolators

The GR series wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd. provide an innovative solution for vibration control in precision equipment. These isolators feature a unique multi-strand stainless steel wire rope design that delivers wide-frequency vibration isolation through nonlinear stiffness characteristics, effectively suppressing mechanical vibrations and shocks in the 5Hz-500Hz range.

Key Advantages

Environmental Adaptability: Resistant to extreme temperatures (-60°C to 200°C) and corrosion, suitable for harsh environments including shipborne and airborne applications
Long-life Design: No aging issues with a fatigue life exceeding 10 million cycles
Proven Performance: Demonstrated 70% reduction in micro-vibration displacement in satellite ground station applications

This technology is ISO9001 and GJB9001C certified, representing a significant advancement in the domestic high-end vibration isolator market.

Dimension Parameters

Model	Height±1.5(mm)	Width (mm)	Weight(kg)	Mounting Options	Thru Hole(mm)	Thread(mm)	C'sink(°)
GR4-24A-A	42	47	0.63	A,B,C,D,E,S	∅7	M6*1.0	90
GR4-18A-A	53	54	0.63
GR4-13A-A	60	59	0.68
GR4-6.7A-A	75	68	0.77

Static-Load Curve

Performance Data

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR4-24A-A	24	19.6	12	5.8
2	GR4-18A-A	18	29.7	6	2.5
3	GR4-13A-A	13	35.8	4.4	1.6
4	GR4-6.7A-A	6.7	49.3	2.2	0.7
