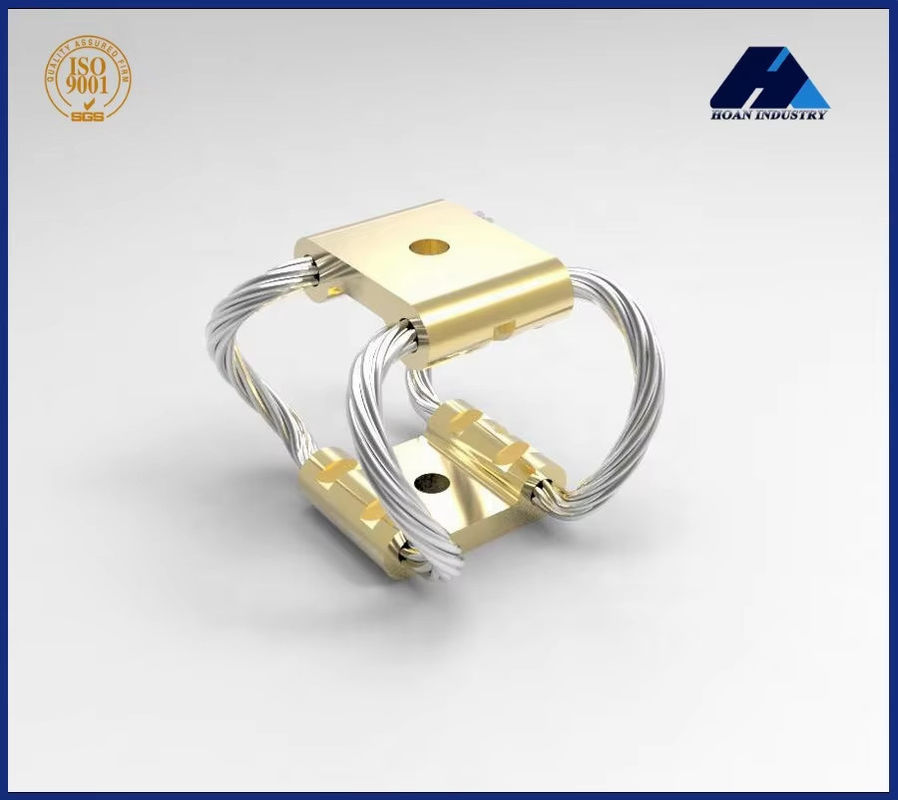

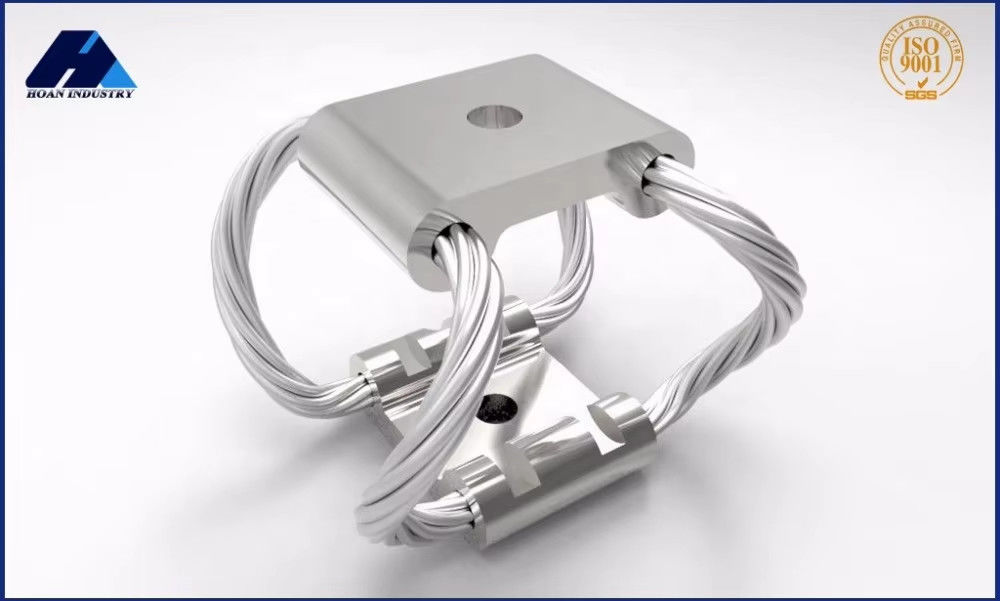

GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments

GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments

wire rope vibration isolator for precision instruments

GR4-24A-A vibration isolator with warranty

precision instrument wire rope isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015 Certificate

Model Number:

GR4-24A-A

Document:

GR series.pdf

Contact Us
Request A Quote
GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments
Product Details
Product Keywords:
Wire Vibration Damper
Working Temperatu:
: -55 ~ +120
Installation Type:
Vertical
Usage:
Vacuum Pump
Wire Rope Diameter:
3.2mm
Color:
Silver
Wire Rope Material:
Galvanized Steel
Spring Rate:
100-500 Lbs/in
Marketing Type:
Hot Product 2024
Application:
Vibration Isolation
Shock Rsistance:
30g/11ms
Highlight:

wire rope vibration isolator for precision instruments

,

GR4-24A-A vibration isolator with warranty

,

precision instrument wire rope isolator

Payment & Shipping Terms
Minimum Order Quantity
4
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
RELATED PRODUCTS
Good price GR4-13A-A Wire Rope Vibration Isolator 13N Load 59mm Width online

GR4-13A-A Wire Rope Vibration Isolator 13N Load 59mm Width

Get Best Price
Good price GR4-18A-A Wire Rope Vibration Isolator 18N Load 10Hz Frequency online

GR4-18A-A Wire Rope Vibration Isolator 18N Load 10Hz Frequency

Get Best Price
Good price GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments online

GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments

Get Best Price
Good price Wire Rope Vibration Isolator 1/4 Inch Galvanized Steel 12 Inch Length online Video

Wire Rope Vibration Isolator 1/4 Inch Galvanized Steel 12 Inch Length

Get Best Price
Contact Us
86-29-88292913
Contact Now
Product Description
GR4-24A-A Wire Rope Vibration Isolators
The ideal solution for precision instruments and high-end manufacturing applications requiring superior vibration control.
Product Specifications
Product Keywords wire vibration damper
Working Temperature -55°C to +120°C
Installation Type Vertical
Usage Vacuum pump
Wire Rope Diameter 3.2mm
Color Silver
Wire Rope Material Galvanized Steel
Spring Rate 100-500 lbs/in
Shock Resistance 30g/11ms
GR Series Wire Rope Vibration Isolators

An innovative solution for vibration control of industrial equipment, particularly in precision instruments, communication equipment, and high-end manufacturing applications where vibration interference affects equipment stability.

Technical Highlights
  • Multi-strand stainless steel wire rope spiral winding structure
  • Absorbs wide-frequency vibration energy (5Hz-500Hz range)
  • Superior corrosion resistance compared to traditional rubber or spring isolators
  • Extended service life exceeding 10 years
Application Scenarios

Successfully implemented in high-precision machine tools, optical platforms, and vehicle-mounted communication equipment. Performs reliably in temperatures from -40°C to 120°C. Field tests show a 60% reduction in vibration transmission rate for gearbox applications, significantly extending maintenance cycles.

Dimension Parameters
Model Height±1.5(mm) Width (mm) Weight(kg) Mounting Options Thru Hole(mm) Thread(mm) C'sink(°)
GR4-24A-A 42 47 0.63 A,B,C,D,E,S ∅7 M6*1.0 90
GR4-18A-A 53 54 0.63 Same as above
GR4-13A-A 60 59 0.68 Same as above
GR4-6.7A-A 75 68 0.77 Same as above
Static-Load Curve
GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments 0
No. Model Max Static Load (N) Max Deflection (mm) Kv(Vibration) (KN/m) Ks(Shock) (KN/m)
1 GR4-24A-A 24 19.6 12 5.8
2 GR4-18A-A 18 29.7 6 2.5
3 GR4-13A-A 13 35.8 4.4 1.6
4 GR4-6.7A-A 6.7 49.3 2.2 0.7
Mounting Bars Options
  • Material Options: Stainless Steel or Aluminum
  • Surface Treatments for Aluminum:
    • White Anodizing: Standard treatment that maintains aluminum's natural color while increasing surface hardness
    • Hard Anodizing: Provides superior hardness with darker finish, recommended for demanding applications
Customer Installation Example
GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments 1
