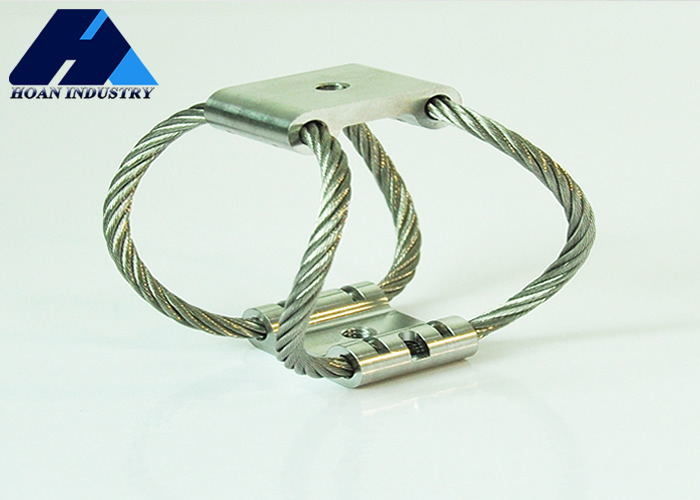

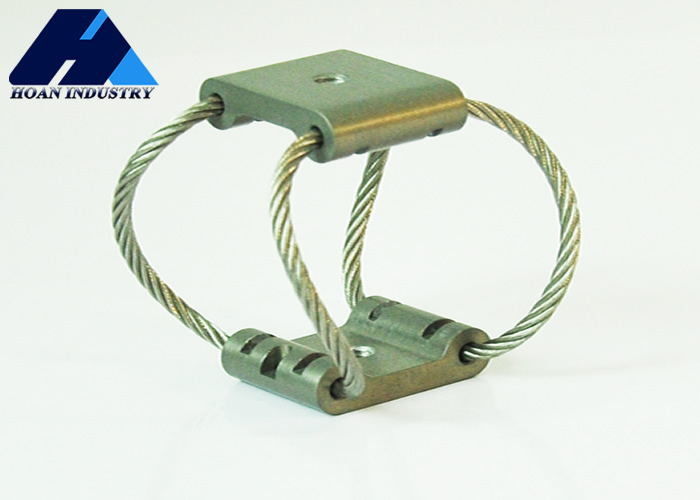

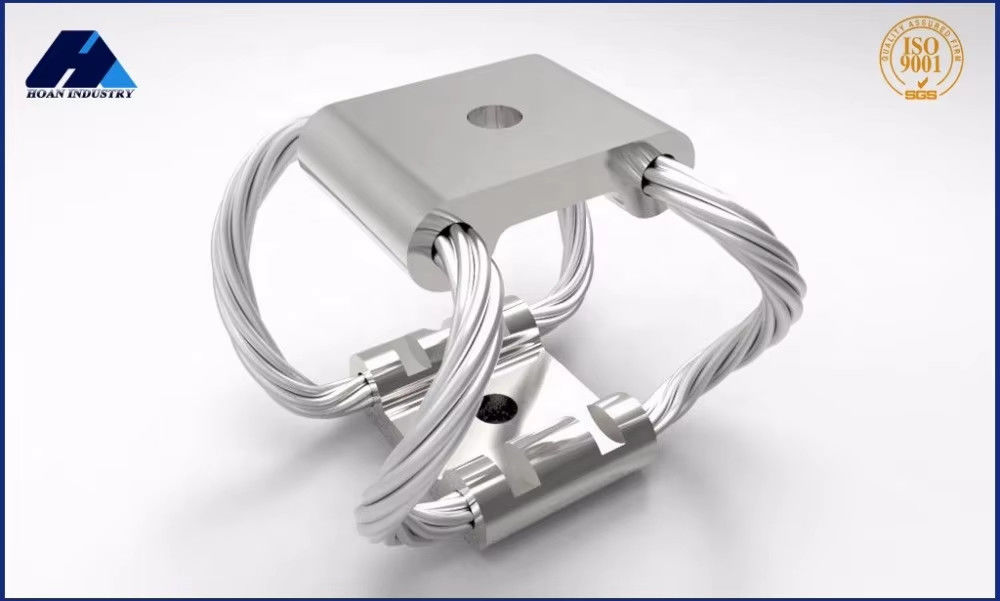

Name: GR4-6.7A-A Wire Rope Vibration Isolator for Energy & Mining
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR4-6.7A-A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

GR4-6.7A-A Wire Rope Vibration Isolator for Energy & Mining

wire rope vibration isolator for mining

GR4-6.7A-A vibration isolator

energy industry wire rope isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015 Certificate

Model Number:

GR4-6.7A-A

Document:

GR series.pdf

Request A Quote

GR4-6.7A-A Wire Rope Vibration Isolator for Energy & Mining

Product Details

Adjustable Height:

Yes

Max Static Load:

20-47N(2kg-4.8Kg)

Applicable Industries:

Energy & Mining

Construction:

Braided Wire Rope

Wire Rope Diameter:

3.2mm

Load Capacity:

1000 Lbs

Installation Method:

Vertical Or Horizontal

Vibration Isolation Type:

Passive

Condition:

New

Number Of Wire Ropes:

Accessories:

Net

Operating Temperature:

-40°C To 120°C

Maintenance:

Low

Highlight:

wire rope vibration isolator for mining

GR4-6.7A-A vibration isolator

energy industry wire rope isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

GR4-13A-A Wire Rope Vibration Isolator 13N Load 59mm Width

Get Best Price

GR4-18A-A Wire Rope Vibration Isolator 18N Load 10Hz Frequency

Get Best Price

GR4-24A-A Wire Rope Vibration Isolator for Precision Instruments

Get Best Price

Video

Wire Rope Vibration Isolator 1/4 Inch Galvanized Steel 12 Inch Length

Get Best Price

86-29-88292913

Contact Now

Product Description

Intelligent Development of New Energy Ships High Reliability with GR4-6.7A-A Wire Rope Vibration Isolators

Product Specifications

Attribute	Value
Adjustable Height	Yes
Max Static Load	20-47N(2kg-4.8Kg)
Applicable Industries	Energy & Mining
Construction	Braided Wire Rope
Wire Rope Diameter	3.2mm
Load Capacity	1000 lbs
Installation Method	Vertical or Horizontal
Vibration Isolation Type	Passive
Condition	New
Number Of Wire Ropes	4
Accessories	Net
Operating Temperature	-40°C to 120°C
Maintenance	Low

Product Description

GR4 Series Vibration Control in Marine and Vehicle Environments

On mobile platforms such as ships and special vehicles, equipment often faces the dual test of random vibration and instantaneous impact. The GR series wire rope vibration isolators from Xi'an Hoan Microwave, validated through military-grade design, provide reliable protection for mobile equipment.

Core Performance

Multi-directional vibration isolation: 3D equal stiffness design, 360° absorption of vibrations from ocean waves and bumpy roads.
Temperature adaptability: Stable performance in the environment of -50℃~150℃, superior to rubber materials.

Application Cases

After a marine exploration equipment manufacturer adopted the GR-300 series, the signal-to-noise ratio of the sonar detector increased by 40%, and the failure rate decreased by 60%.

Industry Trends

With the intelligent development of new energy ships, the high reliability of the GR series may become a standard configuration for related equipment.

Dimension Parameters

Model	Height±1.5(mm)	Width (mm)	Weight(kg)	Mounting Options	Thru Hole(mm)	Thread(mm)	C'sink(°)
GR4-24A-A	42	47	0.63	A,B,C,D,E,S	∅7	M6*1.0	90
GR4-18A-A	53	54	0.63
GR4-13A-A	60	59	0.68
GR4-6.7A-A	75	68	0.77

Static-Load Curve

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR4-24A-A	24	19.6	12	5.8
2	GR4-18A-A	18	29.7	6	2.5
3	GR4-13A-A	13	35.8	4.4	1.6
4	GR4-6.7A-A	6.7	49.3	2.2	0.7
