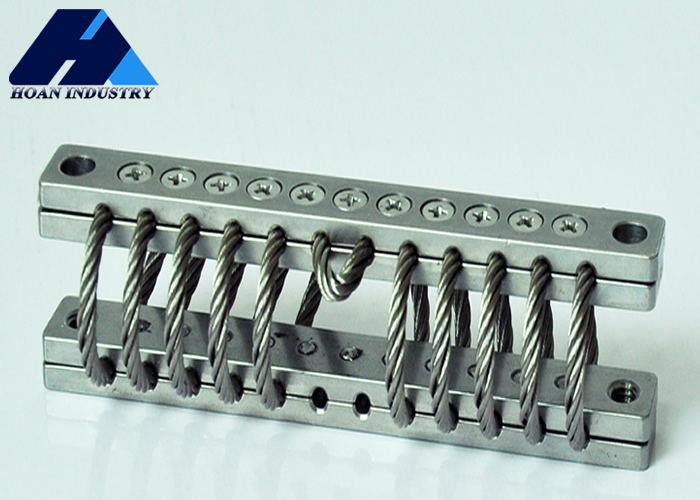

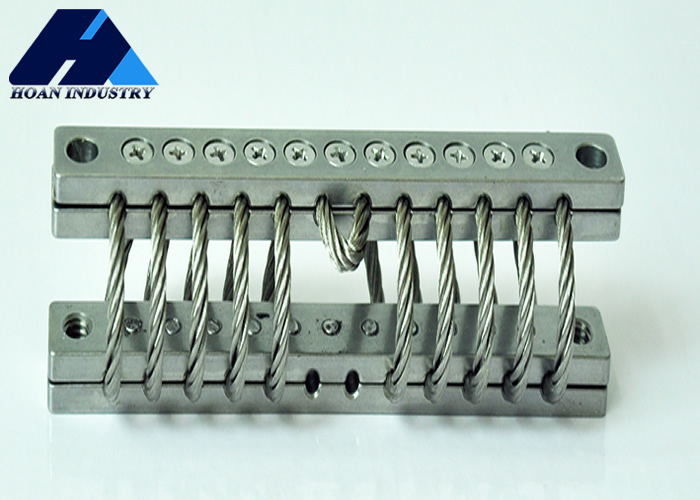

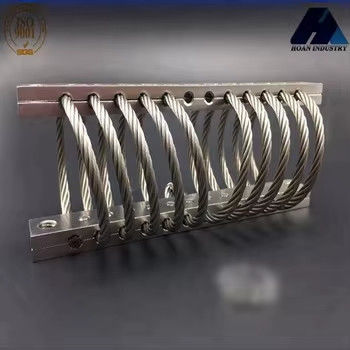

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems

Navigation Systems Wire Rope Vibration Isolators

JGX-0320A-16A Wire Rope Vibration Isolators

16A Wire Rope Vibration Isolators

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0320A-16A

Request A Quote

Product Details

Corrosion Resistance:

High

Applications:

Small Devices

Working Temperatu:

: -55 ~ +120

Wire Rope Diameter:

3mm

Number Of Strands:

Installation Method:

Vertical Or Horizontal

Compression Ratio:

1:2

Operating Temperature:

-40°F To 250°F

Application:

Industrial, Marine, Aerospace

Natural Frequency:

7Hz-15Hz

Isolator Type:

Helical

Resonant Frequency:

15Hz

After Warranty Service:

Online Support

Characteristic:

Wide Working Frequency, Long Life Span

Temperature Range:

-40℃ To 80℃

Highlight:

Navigation Systems Wire Rope Vibration Isolators

JGX-0320A-16A Wire Rope Vibration Isolators

16A Wire Rope Vibration Isolators

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

JGX-0320A-12A Automatic Damping Adjustment Wire Rope Vibration Isolator for Consistent Vibration Control

Get Best Price

Video

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

Get Best Price

JGX-0320A-14.5A Vibration Isolator Effective Damping of 0.5 for Stable Working Environment and Accurate Measurement Data

Get Best Price

Video

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0320 Series

The accuracy of the navigation system is of utmost importance, and the wire rope vibration isolators of Xi'an Hoan Microwave Co., Ltd. are a powerful assistant for enhancing its stability. In satellite navigation and launch systems, even the slightest vibration can affect signal transmission and positioning accuracy.

Relying on its own nonlinear characteristics, the wire rope vibration isolators of Hoan can effectively weaken the impact of complex external vibrations on the navigation system. When the system is subjected to an impact, the vibration isolator can absorb a large amount of impact energy through the friction, extrusion, and slippage between the steel wires, preventing the equipment from being damaged due to the impact. Its performance of being resistant to high and low temperatures ensures that the equipment in the navigation system can operate normally in extreme weather conditions. Thus, it guarantees the safety protection and accurate positioning of the navigation system, enabling users to obtain reliable navigation guidance regardless of where they are.

Product size parameters

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems 0

Model

Height(mm)

±1.5

Width(mm)

Weight(Approx)

Mounting Options

Thru Hole

(mm)

Thread

(mm)

C'sink(℃)

JGX-0320A-16A

0.247

A,B,C

E,D,S

Ø6.9±0.13

M6x1.0

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems 1

Static Load Curve

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems 2

No.	Model	Max Deflection (mm)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0320A-22A	22	9.7	154	91
2	JGX-0320A-20A	20	11.7	124	68
3	JGX-0320A-17A	17	13.7	95	51
4	JGX-0320A-16A	16	16.8	78	39
5	JGX-0320A-14.5A	14.5	18.8	67	32
6	JGX-0320A-13.5A	13.5	21.8	57	25
7	JGX-0320A-12A	12	23.9	46	21

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems 3

No.	Model	Max Deflection (mm)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0320A-22A	15.2	13.7	86	46
2	JGX-0320A-20A	14.1	17.3	70	35
3	JGX-0320A-17A	12.0	19.8	53	25
4	JGX-0320A-16A	11.3	23.9	44	20
5	JGX-0320A-14.5A	10.4	26.9	39	16
6	JGX-0320A-13.5A	9.6	31	32	12
7	JGX-0320A-12A	8.6	34	26	11

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems 4

No.	Model	Max Deflection (mm)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0320A-22A	11.3	9.7	56	56
2	JGX-0320A-20A	10.0	11.7	43	43
3	JGX-0320A-17A	9.5	14.7	31	31
4	JGX-0320A-16A	8.7	17.8	25	25
5	JGX-0320A-14.5A	8.2	19.8	19	19
6	JGX-0320A-13.5A	7.2	22.9	16	16
7	JGX-0320A-12A	6.3	25.9	12	12

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
