JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock

JGX-0400A-31.5A Wire Rope Vibration Isolator

31.5A Wire Rope Vibration Isolator

Vertical Mounting Wire Rope Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JXG-0400

Request A Quote

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock

Product Details

Isolation Type:

Passive

Application:

Vibration Isolation

Design Style:

Industrial

Applications:

Industrial Engine Mounts

Relative Product:

Backdraft Damper

Function:

Anti Shock

Mounting Orientation:

Vertical

Mounting Holes:

M12

Certifications:

ISO 9001, RoHS

Load Capacity:

Varies Depending On Size And Configuration

Port:

Xi'an Or Specified

Wire Rope Material:

Galvanized Steel

Highlight:

JGX-0400A-31.5A Wire Rope Vibration Isolator

31.5A Wire Rope Vibration Isolator

Vertical Mounting Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,MoneyGram,Western Union

JGX-0320A-12A Automatic Damping Adjustment Wire Rope Vibration Isolator for Consistent Vibration Control

Get Best Price

Video

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

Get Best Price

JGX-0320A-14.5A Vibration Isolator Effective Damping of 0.5 for Stable Working Environment and Accurate Measurement Data

Get Best Price

Video

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0400 Series

Are you still troubled by the interference of vibration and shock on your equipment? The JGX - 0400 series of wire rope isolators features an ingenious structural design.

This isolator can withstand a static load of 17.5 - 37 kg and has an extremely wide application range. Whether it is for airborne, vehicle - mounted, or ship - mounted electronic and mechanical equipment, or for the key systems of missiles and satellites, it can perform exceptionally well. With its strong capabilities of corrosion resistance, impact resistance, and high and low - temperature resistance, it can operate stably even in harsh environments, serving as a solid shield for your equipment.

In terms of the working principle, when subjected to large - scale excitation and shock, friction occurs between the wire rope strands, dissipating energy to reduce the intensity of vibration and shock. When the vibration amplitude is small, the wire rope strands are tightly twisted together, exhibiting excellent linear elasticity to maintain stability. This characteristic enables it to effectively handle complex vibration and shock situations, preventing strong resonance and shock damage to the equipment. Choosing the JGX - 0400 series of wire rope isolators means investing in the safe and efficient operation of your equipment, relieving you of the worries caused by vibration.

Mounting Options

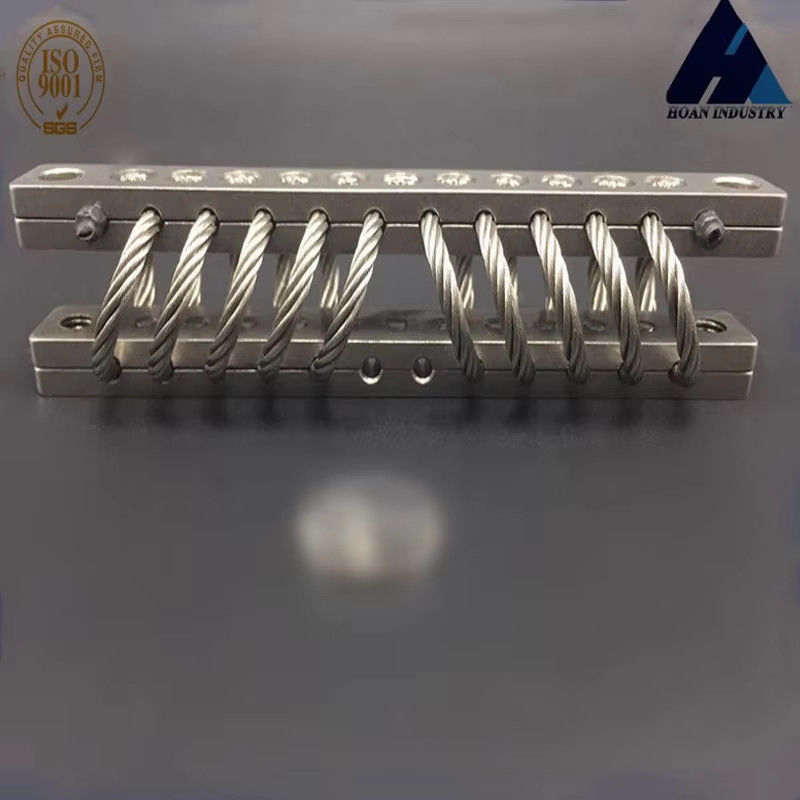

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock 0

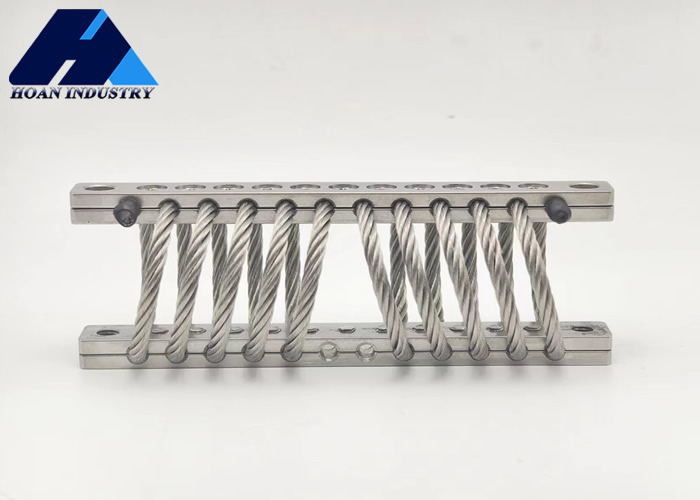

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock 1

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	C'sink(°)
JGX-0400D-37A	30	41	0.24	B,D,E	∅6.9±0.13	M6×1.0	90
JGX-0400D-31.5A	33	43	0.24	A,B,C,D,E,S
JGX-0400D-26A	38	48	0.256
JGX-0400D-22A	46	53	0.272
JGX-0400D-17.5A	53	64	0.288

Technical Data Sheet:

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness KN/m)	Impact stiffness(KN/m)
1	JGX-0400D-37A	37.0	12.7	222	117
2	JGX-0400D-31.5A	31.5	14.7	170	88
3	JGX-0400D-26A	26.0	19.8	116	54
4	JGX-0400D-22A	22.0	24.9	84	37
5	JGX-0400D-17.5A	17.5	32.0	58	23

45 ° directional load:

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock 3

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0400D-37A	25.9	17.8	123	60
2	JGX-0400D-31.5A	22.2	21.8	96	42
3	JGX-0400D-26A	18.6	27.9	66	28
4	JGX-0400D-22A	15.4	35.6	48	18
5	JGX-0400D-17.5A	11.7	44.7	31	11

Lateral load:

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock 4

Curve number	Model	Maximum static load(N)	Maximum static load(N)	Vibration stiffness(KN/m)	Impact stiffness(KN/m
1	JGX-0400D-37A	18.2	12.7	73	73
2	JGX-0400D-31.5A	15.9	15.7	53	53
3	JGX-0400D-26A	13.6	20.8	33	33
4	JGX-0400D-22A	11.3	25.9	23	23
5	JGX-0400D-17.5A	4.1	33.5	7.9	7.9

characteristic:
1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
