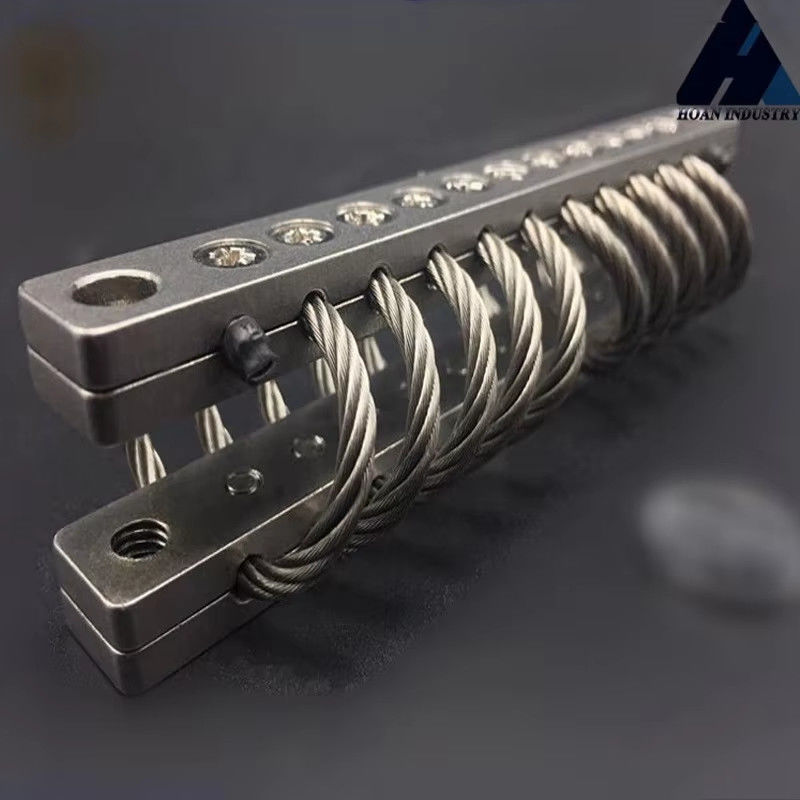

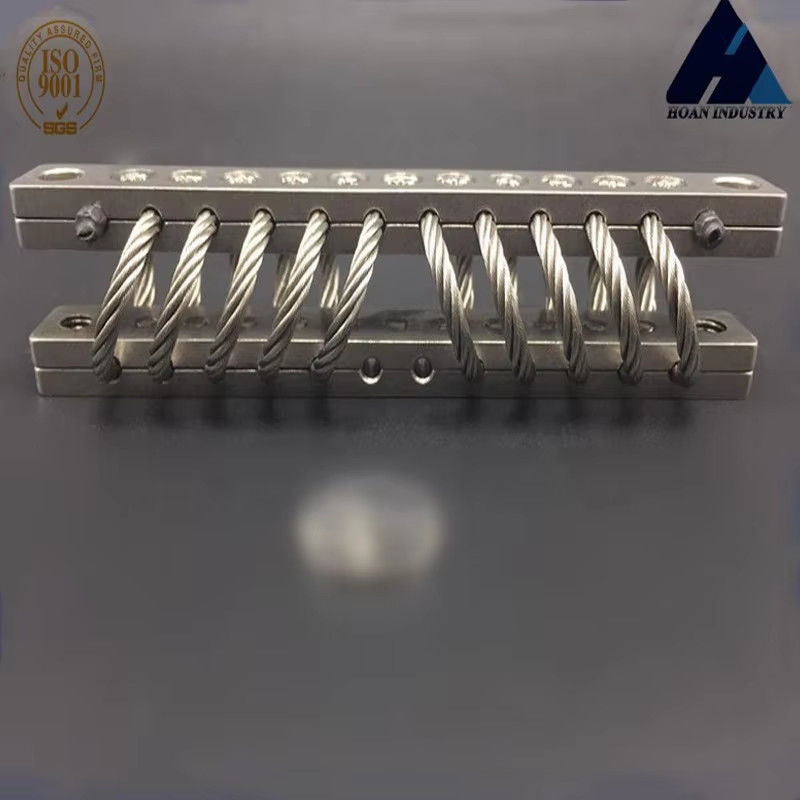

JGX-0400 Series
The JGX-0400 series wire rope vibration isolators have remarkable advantages, providing reliable guarantee for the stable operation of numerous devices.
In terms of load-bearing capacity, the JGX-0400D-26A performs outstandingly, capable of withstanding a large static load of 26 kg. It can adapt to various devices of different weights and is widely used for vibration isolation and buffering of electronic, mechanical equipment and instruments in airborne, vehicle-mounted, shipboard and other complex scenarios to meet the needs of various complex environments.
Its environmental adaptability is unparalleled, with excellent corrosion resistance, impact resistance and high/low temperature resistance. Whether facing harsh natural environments such as salt spray, humidity and ozone, or extreme industrial environments such as high/low temperatures and chemical pollution, it can operate stably, effectively isolate vibrations, and has a service life far exceeding that of ordinary vibration isolators.
In terms of vibration isolation performance, the JGX-0400 has a wide vibration isolation frequency band, which can balance the characteristics of vibration isolation, buffering and reduction of high/low frequency noise of elastic support elements. When the external load changes, its stiffness characteristics can be flexibly adjusted. The deformation is approximately linear under small loads, but when the load increases to a certain extent, the slip between wire rope strands occurs, and the stiffness becomes "soft", effectively absorbing and dissipating vibration energy, significantly improving the stability of equipment operation and reducing equipment wear and failure risks.
In addition, this vibration isolator also has the advantages of convenient installation and low maintenance cost. With a compact structural design, it is easy to install quickly in various devices. Later maintenance usually only requires simple regular inspections to ensure its long-term stable operation, saving users a lot of time and economic costs.
Specification
Company Profile
Xi'an Hoan Microwave Co., Ltd. was established in 2005. The company is located in the High-tech Zone of Xi'an. The company covers an area of 800 square meters, including 500 square meters of production area and 300 square meters of office area. It is a professional enterprise specializing in the development, production, sales and technical services of civilian electronic components, cable assemblies, high-precision electrical connectors, vibration isolators, microwave antennas, waterproof breathable valves and other products.Our products are widely used in electronic equipment, aviation communications, postal and telecommunications, civilian electrical appliances, instrumentation and other technical fields. The products are sold all over the country. At present, there are more than 100 civilian customers.
Hoan has obtained ISO9001:2005 quality management system certification and GJB equipment quality management system certification.Since its establishment, the company has strictly organized and implemented operations in accordance with the standard requirements of the quality management system. The product quality is stable and reliable. There have been no customer complaints about quality and leakage accidents, and no production safety accidents.
HOAN primarily develops vibration isolators, LC filters, connectors, and microwave communication antennas based on GJB standards.We also design custom products to meet specific customer requirements. Hundreds of high-demand clients have established long-term partnerships with us. In addition to independent product development, HOAN actively fosters collaboration between industry, academia, and research institutions.
Product Applications
| Applications |
Typical Equipment |
Protection From |
Operational Advantages |
| Ship board |
Electronics,
Computers,
Machinery
|
Explosive blast,
Inherent vibration,
Storms
|
Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection |
| Rough Terrain Vehicls |
Instrumentation, Generators,
Electronics |
Rough terrain,
Poor road conditions,
Collision |
Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation |
| Aircraft |
Electronics, Computers |
High-G maneuvering,
Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers |
Optics, Instruments, Missiles, Electronics |
Transit, Handling drop,
Loading/Unloading
|
Long life, Maintenance-free,
Exposure to moisture, Repeated use
|
| Industrial Equipment |
Centrifuge,
Dryers,
Pumps
|
Unbalanced dynamic loads,
Fluid hammer, Inherent vibration, Foundation weakness
|
Long life, Maintenance-free,
Corrosive environments
|
| Ordnance Equipment |
Tank artillery, Computer controls, Electronics |
Rough terrain, Railroad humping, Transit |
Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment
necessary for patient care
|
Vibration from moving parts, Mobile carts-Transport shock |
Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers,
Measuring devices
|
Wind causing resonant
frequencies, Stack gas causing turbulence near scrubber, etc.
|
Maintenance-free, Temperature extremes, Corrosive environments |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
