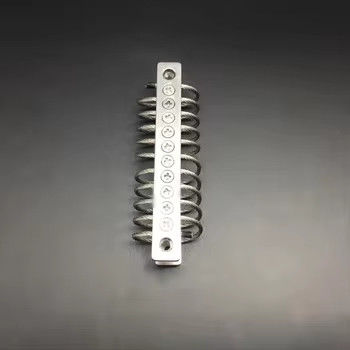

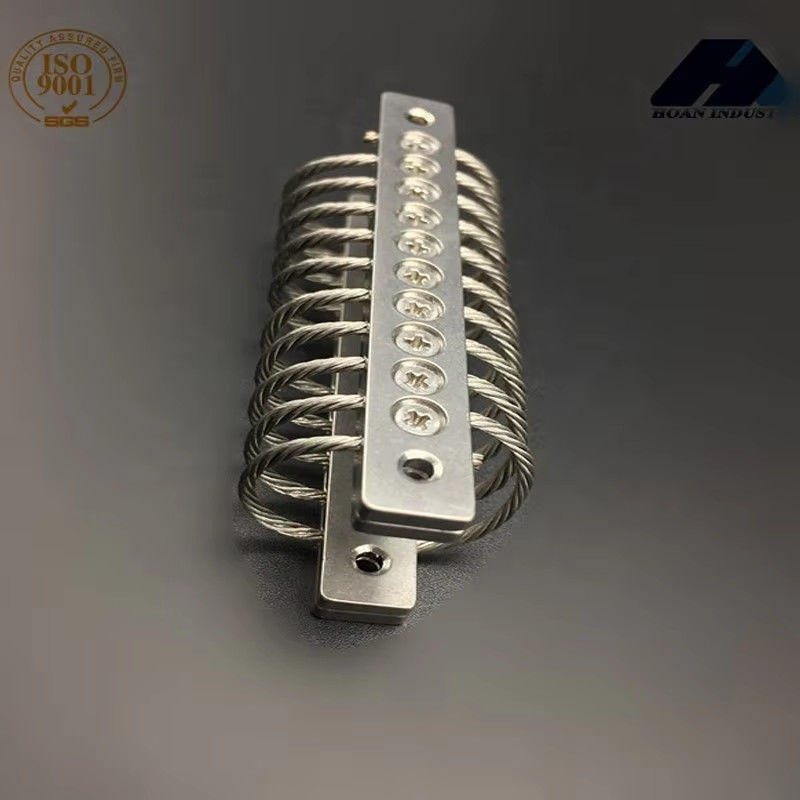

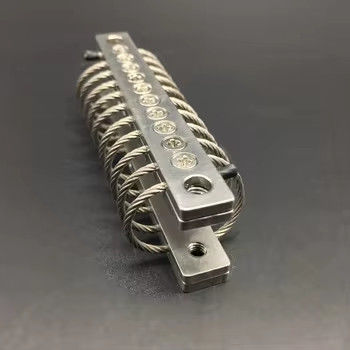

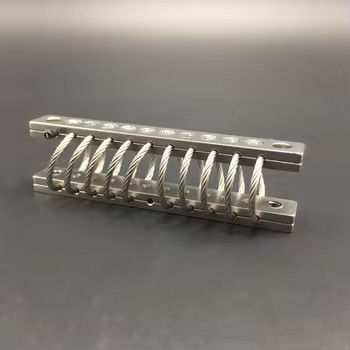

JGX-0480 Series
The JGX-0480 series steel wire rope vibration isolators are widely used in **high-precision instrument protection** and **vibration reduction for equipment in complex working conditions**. In communication base stations, they can reduce the impact of wind vibration and equipment self-vibration on microwave components, improving signal transmission quality. In laboratory scenarios, they provide ultra-quiet environments for electron microscopes and optical platforms, ensuring measurement accuracy. Their lightweight design (single piece weight < 1.5kg) and compact structure make them particularly suitable for vehicle-mounted and shipboard equipment with limited space.
Xi'an Hoan Microwave provides **customized services**, supporting non-standard dimensions, load range optimization, and environmental adaptability enhancement to meet special customer needs. By adopting the JGX-0480 series, users can extend equipment life by more than 30%, reduce failure rates, and decrease calibration frequency caused by vibration, significantly improving operational efficiency. At present, this product has been successfully applied in national defense, scientific research, intelligent manufacturing and other fields, winning industry reputation with its excellent performance.
Mounting Options
SIZE PARAMETER:
| Model |
“H”±3.30 |
“W” |
Unit weight |
Mounting options |
Thru hole
(mm)
|
Thread
(mm)
|
C'sink(°) |
| JGX-0480A-75A |
30 |
36 |
0.304 |
D |
∅6.9±0.13 |
M6×1.0 |
90 |
| JGX-0480A-72A |
33 |
38 |
0.32 |
| JGX-0480A-61A |
36 |
41 |
0.336 |
B,D,E |
| JGX-0480A-59A |
38 |
43 |
0.336 |
A,B,C,D,E,S |
| JGX-0480A-52A |
41 |
46 |
0.352 |
| JGX-0480A-50A |
43 |
48 |
0.4 |
| JGX-0480A-37A |
51 |
58 |
0.416 |
| JGX-0480A-24A |
54 |
75 |
0.432 |
| JGX-0480A-18A |
62 |
88 |
0.448 |
| JGX-0480A-12A |
81 |
107 |
0.464 |
Technical Data Sheet:
Vertical load
| No. |
Model |
Maximum static load(N) |
Maximum deformation(mm) |
Vibration stiffness
(KN/m)
|
Impact stiffness
(KN/m)
|
| 1 |
JGX-0480A-75A |
75 |
8.6 |
578 |
363 |
| 2 |
JGX-0480A-72A |
72 |
11.7 |
455 |
252 |
| 3 |
JGX-0480A-61A |
61 |
13.7 |
347 |
189 |
| 4 |
JGX-0480A-59A |
59 |
15.7 |
301 |
152 |
| 5 |
JGX-0480A-52A |
52 |
18.8 |
244 |
117 |
| 6 |
JGX-0480A-50A |
50 |
20.8 |
212 |
96 |
| 7 |
JGX-0480A-37A |
37 |
26.9 |
136 |
58 |
| 8 |
JGX-0480A-24A |
24 |
29.5 |
82 |
33 |
| 9 |
JGX-0480A-18A |
18 |
36.6 |
54 |
21 |
| 10 |
JGX-0480A-12A |
12 |
52.8 |
29 |
10 |
45 ° directional load:
| No. |
Model |
Maximum static load(N) |
Maximum deformation(mm) |
Vibration stiffness(KN/m) |
Impact stiffness
(KN/m)
|
| 1 |
JGX-0480A-75A |
54.5 |
12.7 |
341 |
179 |
| 2 |
JGX-0480A-72A |
52.2 |
16.8 |
258 |
126 |
| 3 |
JGX-0480A-61A |
44.1 |
19.8 |
197 |
93 |
| 4 |
JGX-0480A-59A |
41.7 |
22.9 |
172 |
75 |
| 5 |
JGX-0480A-52A |
38.1 |
26.9 |
141 |
58 |
| 6 |
JGX-0480A-50A |
35.7 |
29 |
123 |
49 |
| 7 |
JGX-0480A-37A |
26.5 |
38.1 |
77 |
28 |
| 8 |
JGX-0480A-24A |
18.1 |
41.7 |
49 |
18 |
| 9 |
JGX-0480A-18A |
13.9 |
51.3 |
33 |
11 |
| 10 |
JGX-0480A-12A |
9.3 |
74.7 |
18 |
5.3 |
Lateral load:
| No. |
Model |
Maximum static load(N) |
Maximum static load(N) |
Vibration stiffness(KN/m) |
Impact stiffness
(KN/m)
|
| 1 |
JGX-0480A-75A |
36.3 |
8.6 |
224 |
224 |
| 2 |
JGX-0480A-72A |
36.3 |
11.7 |
156 |
156 |
| 3 |
JGX-0480A-61A |
34.1 |
14.7 |
112 |
112 |
| 4 |
JGX-0480A-59A |
31.7 |
16.8 |
93 |
93 |
| 5 |
JGX-0480A-52A |
29.5 |
19.8 |
70 |
70 |
| 6 |
JGX-0480A-50A |
27.2 |
21.8 |
60 |
60 |
| 7 |
JGX-0480A-37A |
20.4 |
27.9 |
35 |
35 |
| 8 |
JGX-0480A-24A |
5.9 |
31.0 |
11 |
11 |
| 9 |
JGX-0480A-18A |
4.1 |
38.1 |
5.3 |
5.3 |
| 10 |
JGX-0480A-12A |
2.2 |
55.9 |
2.3 |
2.3 |
