Precision Instruments JGX-0480A-52A Wire Rope Vibration Isolators for End Equipment Isolation Frequency 5-50 Hz

End Equipment Wire Rope Vibration Isolators

Precision Instruments Wire Rope Vibration Isolators

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0480A-52A

Request A Quote

Product Details

Mounting Type:

Single Or Multiple Mounts

Working Temperatu:

: -55 ~ +120

Maximum Deflection:

10mm

Height:

50mm

Port:

Xi'an Or Specified

Marketing Type:

Hot Product 2024

Mounting Orientation:

Vertical

Vibration Frequency:

10-100Hz

Number Of Wires:

Wire Rope Diameter:

3mm

Mounting Holes:

Wire Rope Construction:

7x7 Or 7x19

Type:

Helical

Width:

46mm

Isolation Frequency:

5-50 Hz

Highlight:

End Equipment Wire Rope Vibration Isolators

Precision Instruments Wire Rope Vibration Isolators

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

D/A,L/C,T/T,D/P,MoneyGram,Western Union

JGX-0320A-12A Automatic Damping Adjustment Wire Rope Vibration Isolator for Consistent Vibration Control

Get Best Price

Video

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

Get Best Price

JGX-0320A-14.5A Vibration Isolator Effective Damping of 0.5 for Stable Working Environment and Accurate Measurement Data

Get Best Price

Video

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0480A series

The JGX - 0480A series steel wire rope vibration isolators developed by Xi'an Hoan Microwave Co., Ltd. are shock - absorbing devices specially designed for high - precision equipment, which are widely used in aerospace, electronic communication, precision instruments and other fields. The product is formed by winding high - quality stainless steel wire ropes. Through a unique structural design, it realizes multi - directional vibration isolation, effectively absorbs the vibration and impact energy during equipment operation, and protects sensitive components from damage.

The JGX - 0480A series has the characteristics of strong bearing capacity, corrosion resistance and long service life, and can work stably in extreme environments from - 40℃ to + 120℃. Its compact design is suitable for a variety of installation spaces. At the same time, it provides good impact resistance, which is particularly suitable for the vibration reduction needs of vehicle - mounted, ship - borne and airborne equipment. With military - grade manufacturing standards, this product has become a preferred solution in the field of vibration reduction for high - end equipment.

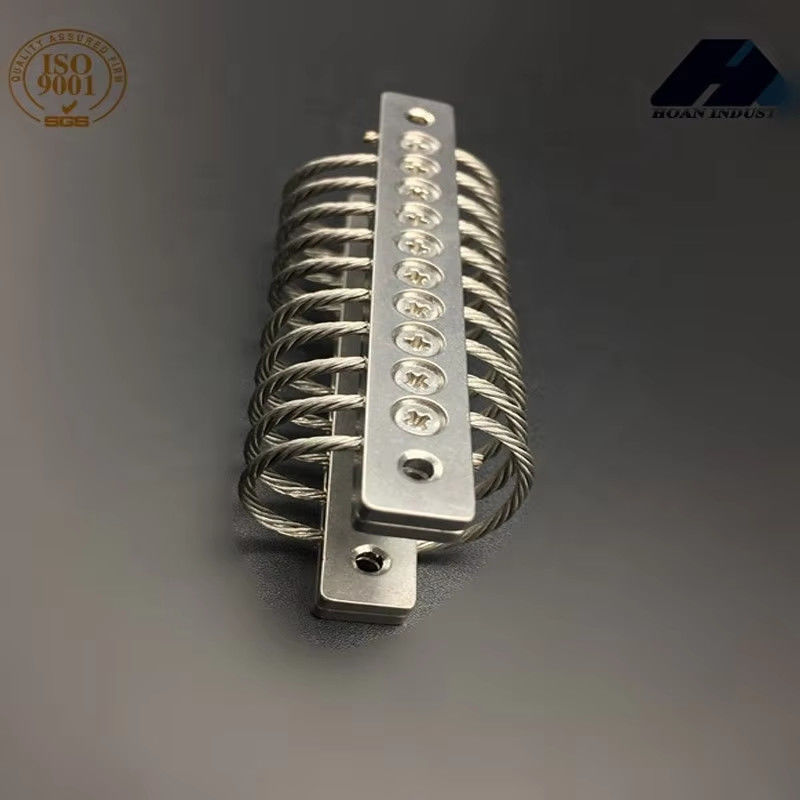

Precision Instruments JGX-0480A-52A Wire Rope Vibration Isolators for End Equipment Isolation Frequency 5-50 Hz 0

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole (mm)	Thread (mm)	C'sink(°)
JGX-0480A-75A	30	36	0.304	D	∅6.9±0.13	M6×1.0	90
JGX-0480A-72A	33	38	0.32	D
JGX-0480A-61A	36	41	0.336	B,D,E
JGX-0480A-59A	38	43	0.336	A,B,C,D,E,S
JGX-0480A-52A	41	46	0.352
JGX-0480A-50A	43	48	0.4
JGX-0480A-37A	51	58	0.416
JGX-0480A-24A	54	75	0.432
JGX-0480A-18A	62	88	0.448
JGX-0480A-12A	81	107	0.464

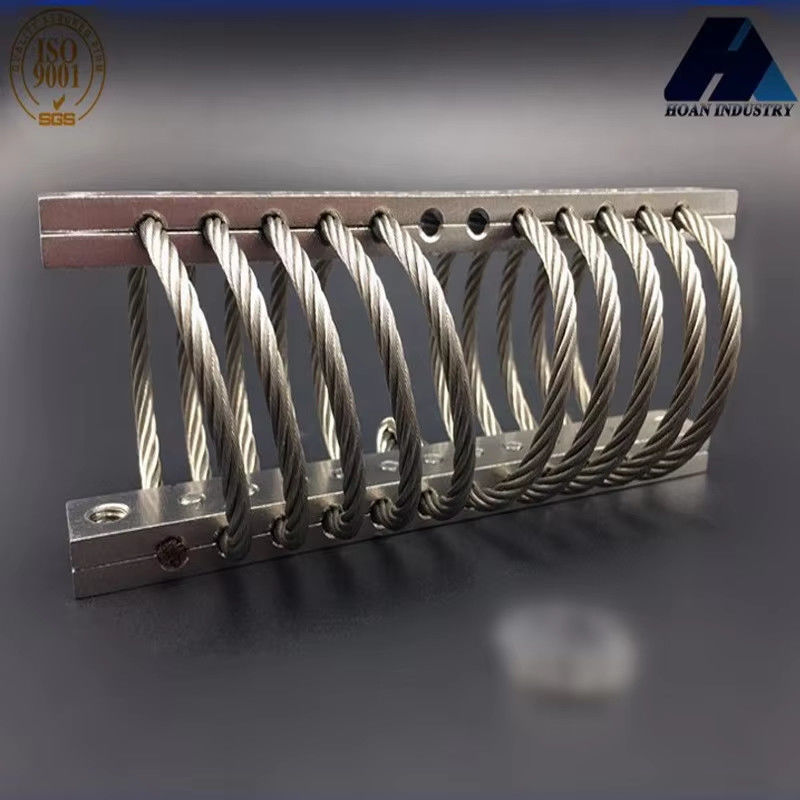

Precision Instruments JGX-0480A-52A Wire Rope Vibration Isolators for End Equipment Isolation Frequency 5-50 Hz 1

Static-Load Curve

Precision Instruments JGX-0480A-52A Wire Rope Vibration Isolators for End Equipment Isolation Frequency 5-50 Hz 2

No.	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0480A-75A	75	8.6	578	363
2	JGX-0480A-72A	72	11.7	455	252
3	JGX-0480A-61A	61	13.7	347	189
4	JGX-0480A-59A	59	15.7	301	152
5	JGX-0480A-52A	52	18.8	244	117
6	JGX-0480A-50A	50	20.8	212	96
7	JGX-0480A-37A	37	26.9	136	58
8	JGX-0480A-24A	24	29.5	82	33
9	JGX-0480A-18A	18	36.6	54	21
10	JGX-0480A-12A	12	52.8	29	10

Precision Instruments JGX-0480A-52A Wire Rope Vibration Isolators for End Equipment Isolation Frequency 5-50 Hz 3

No.	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0480A-75A	54.5	12.7	341	179
2	JGX-0480A-72A	52.2	16.8	258	126
3	JGX-0480A-61A	44.1	19.8	197	93
4	JGX-0480A-59A	41.7	22.9	172	75
5	JGX-0480A-52A	38.1	26.9	141	58
6	JGX-0480A-50A	35.7	29	123	49
7	JGX-0480A-37A	26.5	38.1	77	28
8	JGX-0480A-24A	18.1	41.7	49	18
9	JGX-0480A-18A	13.9	51.3	33	11
10	JGX-0480A-12A	9.3	74.7	18	5.3

Precision Instruments JGX-0480A-52A Wire Rope Vibration Isolators for End Equipment Isolation Frequency 5-50 Hz 4

No.	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0480A-75A	36.3	8.6	224	224
2	JGX-0480A-72A	36.3	11.7	156	156
3	JGX-0480A-61A	34.1	14.7	112	112
4	JGX-0480A-59A	31.7	16.8	93	93
5	JGX-0480A-52A	29.5	19.8	70	70
6	JGX-0480A-50A	27.2	21.8	60	60
7	JGX-0480A-37A	20.4	27.9	35	35
8	JGX-0480A-24A	5.9	31.0	11	11
9	JGX-0480A-18A	4.1	38.1	5.3	5.3
10	JGX-0480A-12A	2.2	55.9	2.3	2.3

* The material of the mounting splint *

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy plywood *

 * White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;

 * Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

Tags：

Precision Instruments JGX-0480A-52A Wire Rope Vibration Isolators for End Equipment Isolation Frequency 5-50 Hz

End Equipment Wire Rope Vibration Isolators

Precision Instruments Wire Rope Vibration Isolators

End Equipment Wire Rope Vibration Isolators

Precision Instruments Wire Rope Vibration Isolators

JGX-0320A-12A Automatic Damping Adjustment Wire Rope Vibration Isolator for Consistent Vibration Control

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

JGX-0320A-14.5A Vibration Isolator Effective Damping of 0.5 for Stable Working Environment and Accurate Measurement Data

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems

Vibration Damper

wire rope isolator damping

wire rope vibration damper
