GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity

GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity

steel wire rope vibration isolator

wire rope isolator 500 lbs capacity

vibration isolator with load capacity

Place of Origin:

China

Brand Name:

Hoan

Model Number:

GR5-80A-A

Document:

GR series.pdf

Contact Us
Request A Quote
GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity
Product Details
Working Temperatu:
: -55 ~ +120
Width:
48mm
Certifications:
ISO 9001:2015
Vibration Isolation Range:
0.5 To 10 Hz
Isolator Type:
Helical
Installation Orientation:
Vertical Or Horizontal
Vibration Damping:
Yes
Isolation Frequency Range:
5Hz To 100Hz
High:
41mm
Load Capacity:
500 Lbs
Shock Rsistance:
20g/11ms
Size:
To Machine
Condition:
New
Mounting Hole Size:
8mm
Highlight:

steel wire rope vibration isolator

,

wire rope isolator 500 lbs capacity

,

vibration isolator with load capacity

Payment & Shipping Terms
Minimum Order Quantity
4
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
RELATED PRODUCTS
Good price GR5-27A-A Steel Wire Rope Vibration Isolator for Aerospace and Military online

GR5-27A-A Steel Wire Rope Vibration Isolator for Aerospace and Military

Get Best Price
Good price GR5-38A-A Steel Wire Rope Vibration Isolator 10-100Hz 53mm online

GR5-38A-A Steel Wire Rope Vibration Isolator 10-100Hz 53mm

Get Best Price
Good price GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity online

GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity

Get Best Price
Good price GR4-6.7A-A Wire Rope Vibration Isolator for Energy & Mining online

GR4-6.7A-A Wire Rope Vibration Isolator for Energy & Mining

Get Best Price
Contact Us
86-29-88292913
Contact Now
Product Description

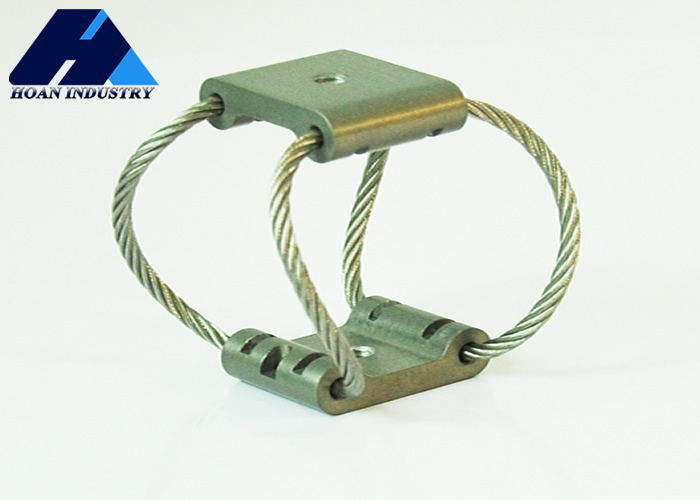

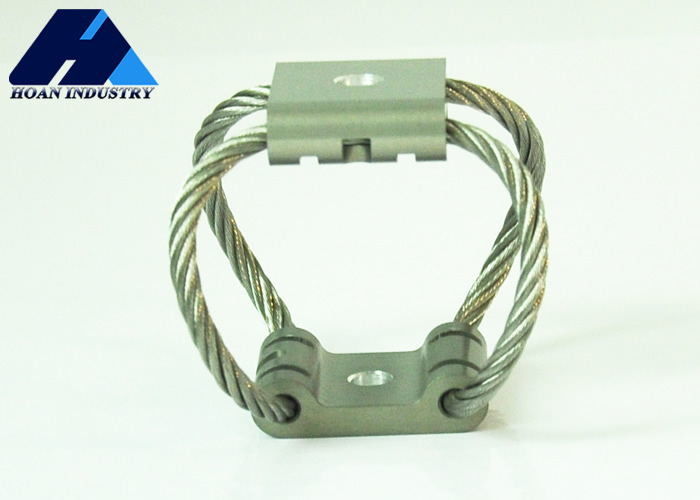

GR5-80A-A Steel Wire Rope Vibration Isolator

High-performance vibration isolation solution providing stable performance in any environment from -55°C to +120°C.

Key Specifications
Attribute Value
Working Temperature -55°C to +120°C
Dimensions (W×H) 48mm × 41mm
Load Capacity 500 lbs
Vibration Isolation Range 0.5 to 10 Hz
Shock Resistance 20g/11ms
Mounting Hole Size 8mm
Certifications ISO 9001:2015
Product Features
  • Helical steel wire rope design for superior vibration damping
  • Maintains performance in extreme temperatures and harsh environments
  • Excellent anti-fatigue properties compared to rubber isolators
  • No aging or hardening over time for long-term reliability
  • Simple installation with vertical or horizontal mounting options
  • Effective vibration isolation for precision equipment
Dimension Parameters
Model Height±1.5 (mm) Width (mm) Weight (kg) Mounting Options Thru Hole(mm) Thread (mm) C'sink(°)
GR5-80A-A 41 48 0.72 A,B,C,D,E,S ∅7 M6*1.0 90
Performance Data
Static-Load Curve
GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity 0 GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity 1 GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity 2
Material Options

Mounting splint available in:

  • Stainless Steel
  • Aluminum with surface treatment options:
    • White Anodizing (standard hardness, maintains aluminum color)
    • Hard Anodizing (increased hardness, darker finish for demanding applications)
Application Example
GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity 3
