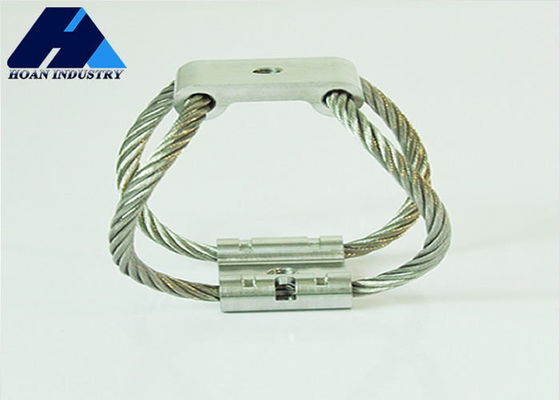

Name: GR5-38A-A Steel Wire Rope Vibration Isolator 10-100Hz 53mm
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR5-38A-A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

GR5-38A-A Steel Wire Rope Vibration Isolator 10-100Hz 53mm

steel wire rope vibration isolator 10-100Hz

wire rope isolator 53mm

GR5-38A-A vibration isolator with warranty

Place of Origin:

China

Brand Name:

Hoan

Model Number:

GR5-38A-A

Document:

GR series.pdf

Request A Quote

GR5-38A-A Steel Wire Rope Vibration Isolator 10-100Hz 53mm

Product Details

Applicable Industries:

Energy & Mining

Vibration Frequency Range:

10Hz To 100Hz

Height:

53mm

Installation Method:

Bolt-On

Design Style:

Industrial

Certifications:

ISO 9001:2015

Vibration Frequency:

10-100Hz

Width:

54 Mm

Resonant Frequency:

5-10HZ

Showroom Location:

None

Weight:

0.5kg

Compression Ratio:

1.2:1

Highlight:

steel wire rope vibration isolator 10-100Hz

wire rope isolator 53mm

GR5-38A-A vibration isolator with warranty

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

D/A,L/C,D/P,T/T,Western Union,MoneyGram

GR5-27A-A Steel Wire Rope Vibration Isolator for Aerospace and Military

Get Best Price

GR5-38A-A Steel Wire Rope Vibration Isolator 10-100Hz 53mm

Get Best Price

GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity

Get Best Price

GR4-6.7A-A Wire Rope Vibration Isolator for Energy & Mining

Get Best Price

86-29-88292913

Contact Now

Product Description

GR5-38A-A Steel Wire Rope Vibration Isolator

High-Performance Solution for Vibration Control

Product Specifications

Attribute	Value
Applicable Industries	Energy & Mining
Vibration Frequency Range	10Hz to 100Hz
Height	53mm
Installation Method	Bolt-On
Design Style	Industrial
Certifications	ISO 9001:2015
Width	54 mm
Resonant Frequency	5-10HZ
Weight	0.5kg
Compression Ratio	1.2:1

Product Description

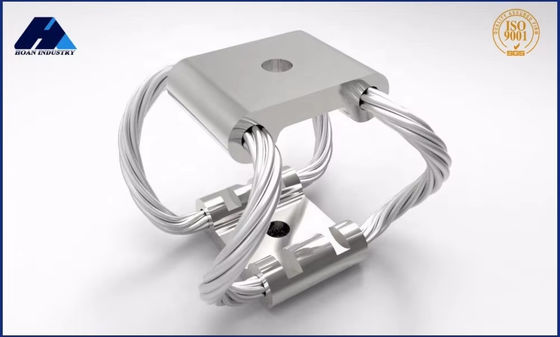

GR Series Steel Wire Rope Vibration Isolators

The GR series from Xi'an Hoan Microwave offers significant advantages in energy conservation and maintenance cost reduction. The unique metal wire structure eliminates the need for regular replacement required by rubber vibration isolators, reducing maintenance costs by over 40% throughout the equipment's lifecycle.

Energy efficiency is enhanced through effective vibration isolation. For example, industrial pumps equipped with GR5 Series isolators demonstrate approximately 15% reduction in energy loss from vibration, translating to annual electricity savings of thousands of yuan. Additionally, equipment MTBF (Mean Time Between Failures) is extended by 30%-50%.

The modular design enables quick replacement, minimizing equipment downtime. Our integrated intelligent monitoring system provides real-time vibration isolator status and predictive maintenance capabilities, successfully implemented in numerous key engineering projects.

Dimension Parameters

Model	Height±1.5 (mm)	Width (mm)	Weight (kg)	Mounting Options	Thru Hole(mm)	Thread (mm)	C'sink(°)
GR5-80A-A	41	48	0.72	A,B,C,D,E,S	∅7	M6*1.0	90
GR5-38A-A	53	54	0.77
GR5-27A-A	60	59	0.81
GR5-16A-A	76	67	0.9

Static-Load Performance Data

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer with our own production facilities, ensuring full quality control and competitive pricing for customized solutions.

Q: Can you customize products for us?

A: Yes, we provide customized solutions. Contact us with your requirements for tailored vibration isolation products.

Q: What is the lead time?

A: Samples typically take 2-5 days. Mass production requires 7-20 days, with faster delivery when stock is available.

Q: Can I get samples before placing an order?

A: Yes, sample orders are accepted.

Q: How is your shipping?

A: Worldwide shipping is available. Please contact us for current shipping costs as they vary.

Q: Do you offer bulk order discounts?

A: Yes, we provide quantity discounts based on order volume.

Customer Installation Example
