JGX-1278D-235B Wire Rope Vibration Isolator

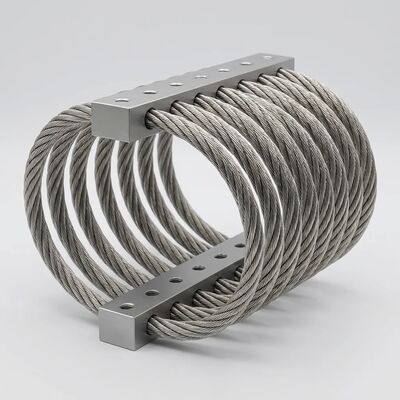

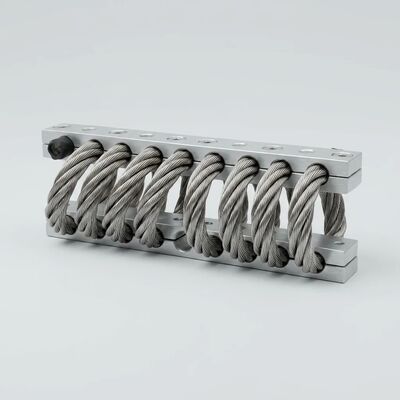

The JGX-1278D-235B is an 8-loop, 12.7mm-diameter wire rope vibration isolator that pairs galvanized steel cable with aluminum retaining bars to deliver stable, maintenance-free shock and vibration control across all axes. Its friction-damping design provides a rated static load of 235 kg and a long service life.

Anti-Overturning Stability for High-CG Machinery

The wide mounting geometry and balanced multi-axis stiffness of the JGX-1278D-235B resist overturning and rocking in machines with a high center of gravity. It keeps tall, high-center-of-gravity equipment upright and level under dynamic loading, protecting both the machine and its foundation from tipping-induced damage.

Superior Wire Bending Fatigue Life

The stranded wire rope construction is engineered for superior bending fatigue resistance, sustaining repeated flex cycles without breakage or loss of damping performance. This extended fatigue life reduces replacement frequency and total cost of ownership in continuously operating equipment.

Key Specifications

Applications

Suitable for compressors, generators, pumps, crushers, screeners, HVAC units, and other high-CG or continuously vibrating industrial machinery.

Contact our engineering team for a tailored isolation solution and quotation.
