JGX-1278D-235B Wire Rope Vibration Isolator

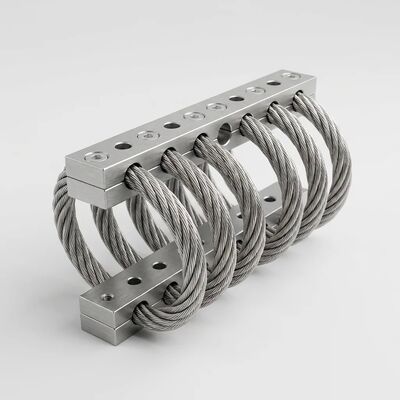

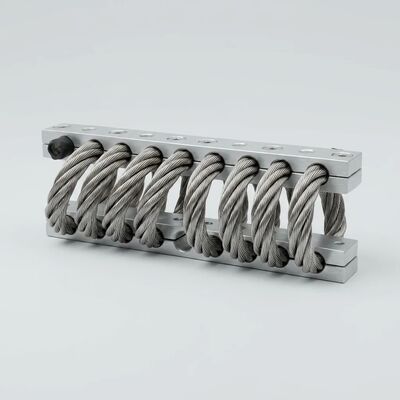

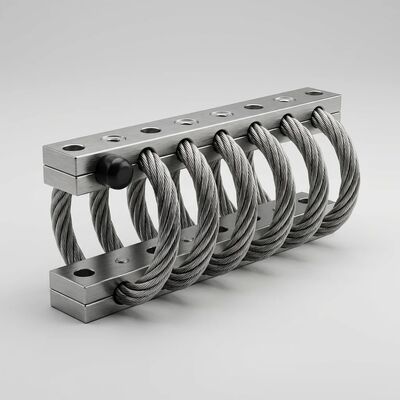

The JGX-1278D-235B is an 8-loop, 12.7mm-diameter wire rope vibration isolator built with galvanized steel cable and aluminum retaining bars for corrosion-resistant, maintenance-free isolation across all axes. Its all-metal construction supports a rated static load of 235 kg.

Hybrid Integration with Springs & Air Mounts

The JGX-1278D-235B can be combined with coil springs and pneumatic air mounts to form a hybrid isolation system that broadens the effective frequency range and load capacity. This hybrid integration tailors stiffness and damping to the specific requirements of each application.

Ultra-Low Outgassing for High-Vacuum Chambers

Fabricated entirely from metal without organic elastomers, the JGX-1278D-235B exhibits ultra-low outgassing, making it suitable for high-vacuum chamber environments. It preserves vacuum integrity while isolating vacuum pumps, coating systems, and analytical instruments from vibration.

Key Specifications

Applications

Recommended for vacuum chambers, coating and deposition systems, analytical instruments, and multi-stage isolation platforms that combine springs or air mounts.

Contact our engineering team for a tailored isolation solution and quotation.
