JGX-0240D-4.5A Wire Rope Vibration Isolator Multi-Axis Large Displacement Absorption Frequency Independent Damping

Name: JGX-0240D-4.5A Wire Rope Vibration Isolator Multi-Axis Large Displacement Absorption Frequency Independent Damping
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0240D-4.5A
Availability: InStock

Brand Name:	Hoan
Model Number:	JGX-0240D-4.5A
MOQ:	10 Pieces
Payment Terms:	L/C,D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO 9001:2015

Wire Rope Diameter:

4.5 Mm

Number Of Coils:

Wire Rope Material:

Stainless Steel 304

Operating Temperature Range:

-70°C To +200°C

Damping Ratio:

≥15%

Natural Frequency Range:

5-15 Hz

Highlight:

Multi-Axis Large Displacement Absorption

Frequency-Independent Damping Performance

High Shear Tensile Safety Rating

Product Description

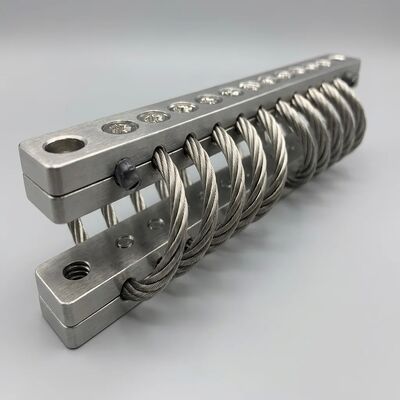

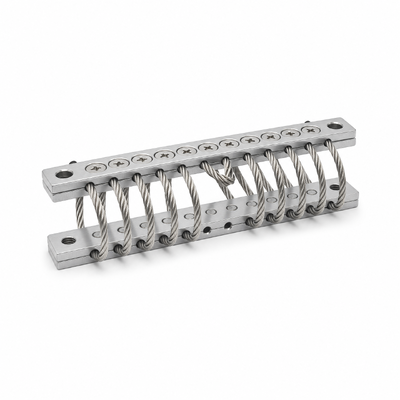

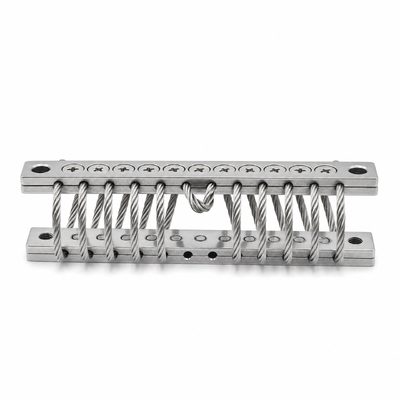

JGX-0240D-4.5A Wire Rope Vibration Isolator — Multi-Axis Industrial Damping Solution

The JGX-0240D-4.5A is a precision-engineered wire rope vibration isolator that delivers multi-axis large displacement absorption alongside frequency-independent damping performance. Built around an 8-coil stainless steel 304 wire rope architecture paired with aluminum alloy 6061-T6 mounting blocks, this isolator handles dynamic deflections across compression, shear, and roll axes simultaneously — making it a dependable choice for equipment protection in industrial automation, heavy transport, energy generation, and precision manufacturing environments.

Performance Data & Laboratory Validation

Parameter	Measured Value	Test Method
Damping Ratio	≥15%	Half-power bandwidth method
Natural Frequency Range	5-15 Hz	Swept sine excitation
Isolation Efficiency at Resonance	≥85%	Transmissibility measurement
Operating Temperature	-70°C to +200°C	Thermal chamber cycling
Fatigue Life	>10⁷ cycles at rated load	Accelerated sinusoidal testing
Drift After 10⁶ Cycles	< 3%	Continuous monitoring

Each production batch undergoes random sampling validation per ISO 10816 and ISO 1940 guidelines. Transmissibility curves and damping coefficients are documented and available upon request.

Application Scenarios

Industrial Automation

CNC machining centers, robotic work cells, and automated inspection stations benefit from multi-axis vibration isolation that preserves positioning accuracy during high-speed operation cycles.

Heavy Transport & Logistics

Onboard electronics, telemetry units, and monitoring equipment on trucks, railcars, and material handling vehicles require rugged vibration protection against road-induced shock and continuous low-frequency vibration.

Energy & Power Generation

Generator set instrumentation, turbine monitoring modules, and power conditioning units installed near rotating machinery experience broad-spectrum vibration that demands frequency-independent isolation.

Precision Measurement & Laboratory

Analytical balances, laser interferometers, and optical measurement systems achieve higher measurement repeatability when decoupled from ambient building vibration and nearby equipment disturbances.

Technical Specifications

Parameter	Specification
Model Number	JGX-0240D-4.5A
Wire Rope Diameter	4.5 mm
Number of Coils	8
Load Capacity (Compression)	0.5-2.5 kg
Load Capacity (Shear)	0.3-1.8 kg
Wire Rope Material	Stainless Steel 304
Mounting Block Material	Aluminum Alloy 6061-T6
Damping Ratio	≥15%
Natural Frequency Range	5-15 Hz
Isolation Efficiency	≥85% at Resonance
Mounting Thread	M5
Unit Weight	Approx. 35 g
Surface Treatment	Electropolished
Compliance	ISO 10816, ISO 1940

Frequently Asked Questions

How does wire rope damping differ from rubber or spring isolators?

Wire rope isolators use dry-friction damping between individual wire strands, which is inherently frequency-independent and temperature-stable. Rubber isolators exhibit frequency- and temperature-dependent stiffness changes. Metal spring isolators provide negligible inherent damping and typically require external dampers. Wire rope combines structural support and damping in a single, passive element.

What is the expected service life of the JGX-0240D-4.5A?

Laboratory testing demonstrates fatigue life exceeding 10 million cycles at rated load with less than 3% performance drift. Under normal industrial operating conditions, a service life of 8-12 years is typical before replacement is recommended.

Can this isolator be used in outdoor installations?

Yes. The SS304 wire rope and electropolished surface treatment provide adequate corrosion resistance for most outdoor industrial environments. For coastal or chemically aggressive atmospheres, please refer to our marine-grade variant featuring 316L stainless steel construction.
