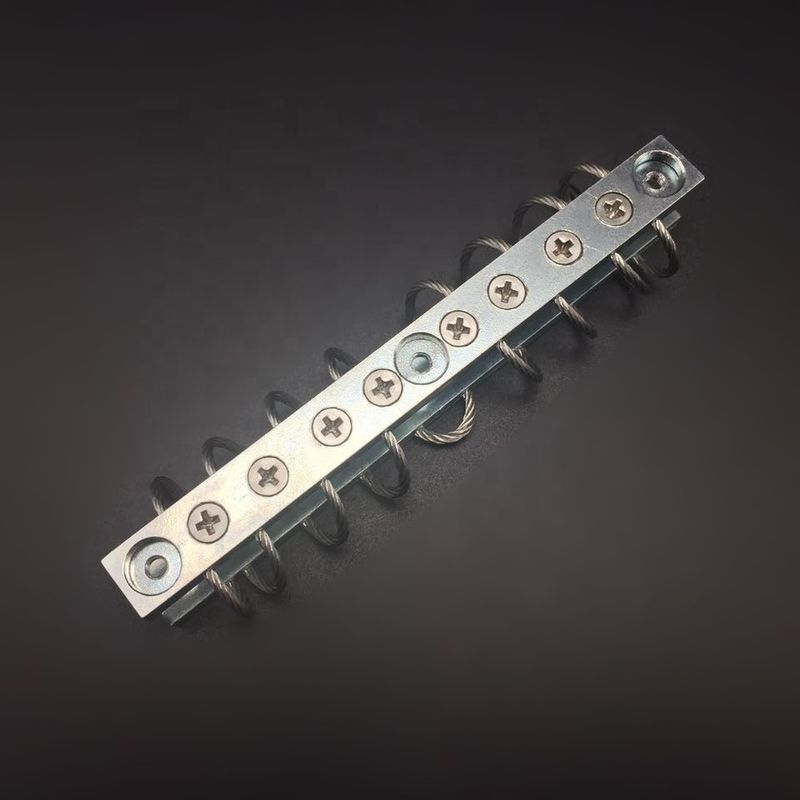

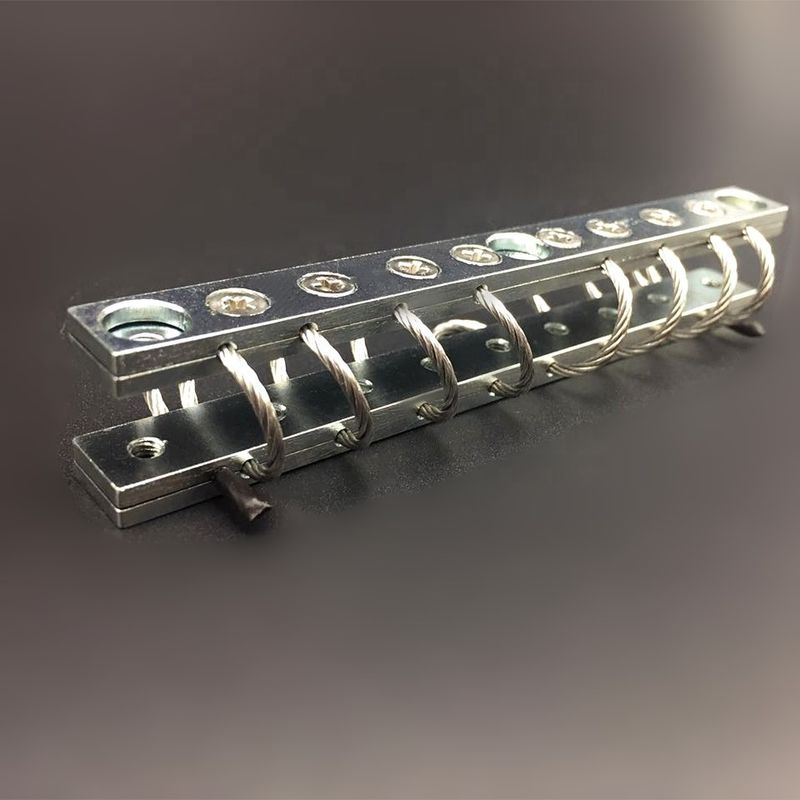

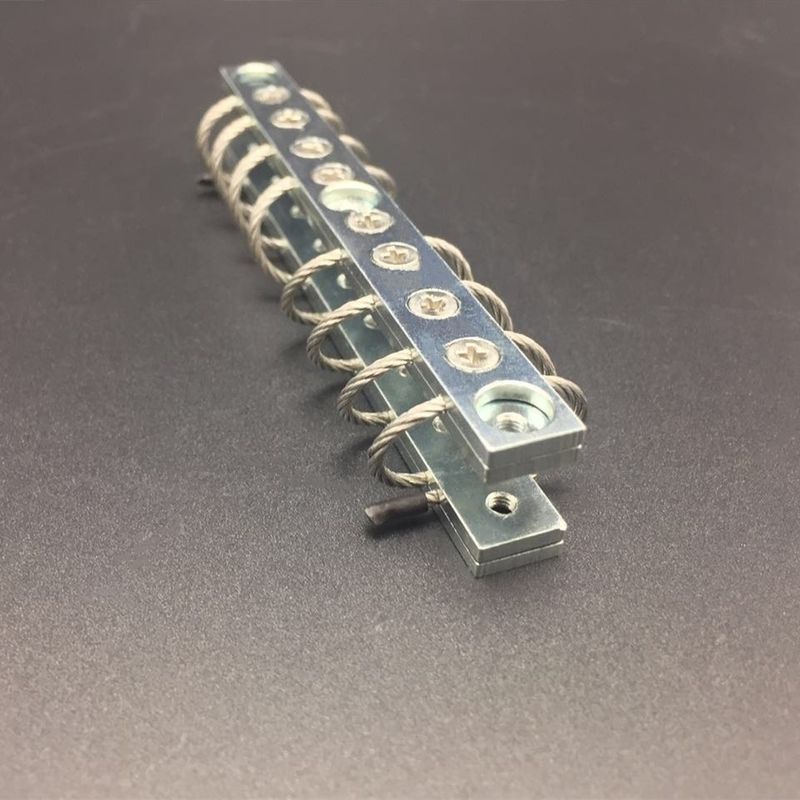

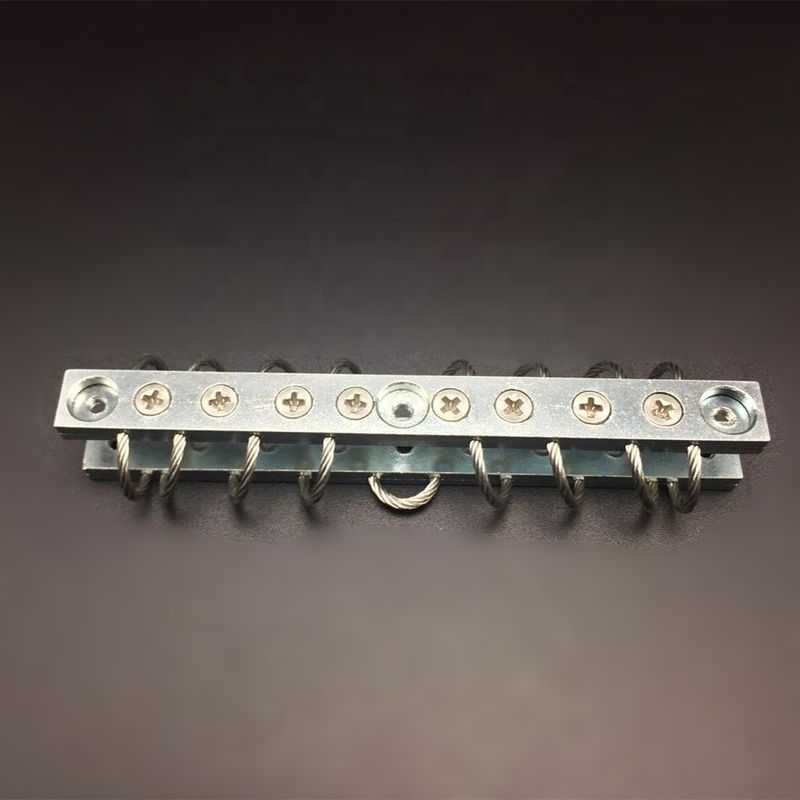

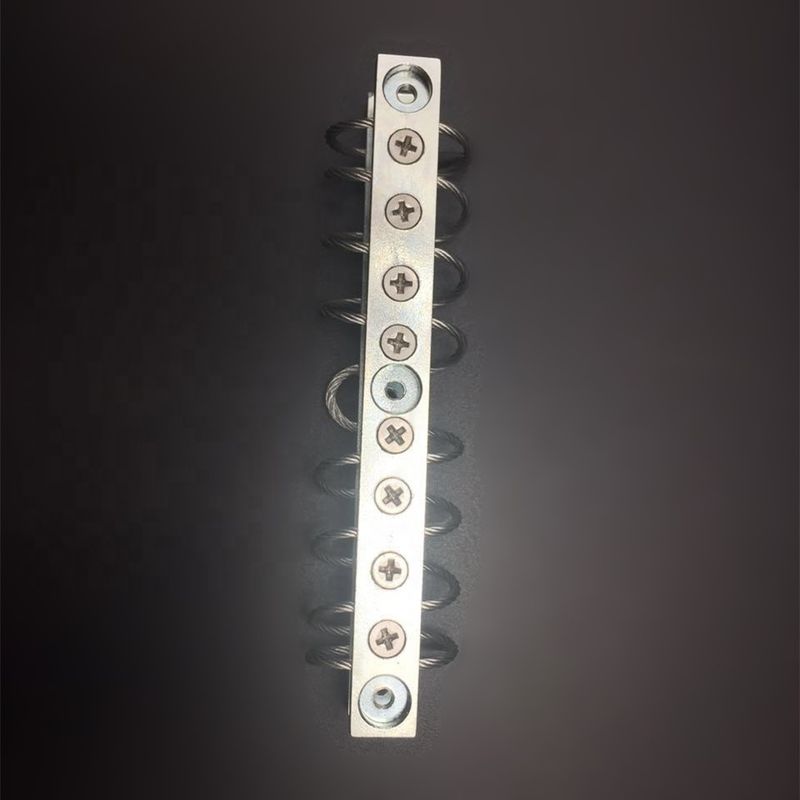

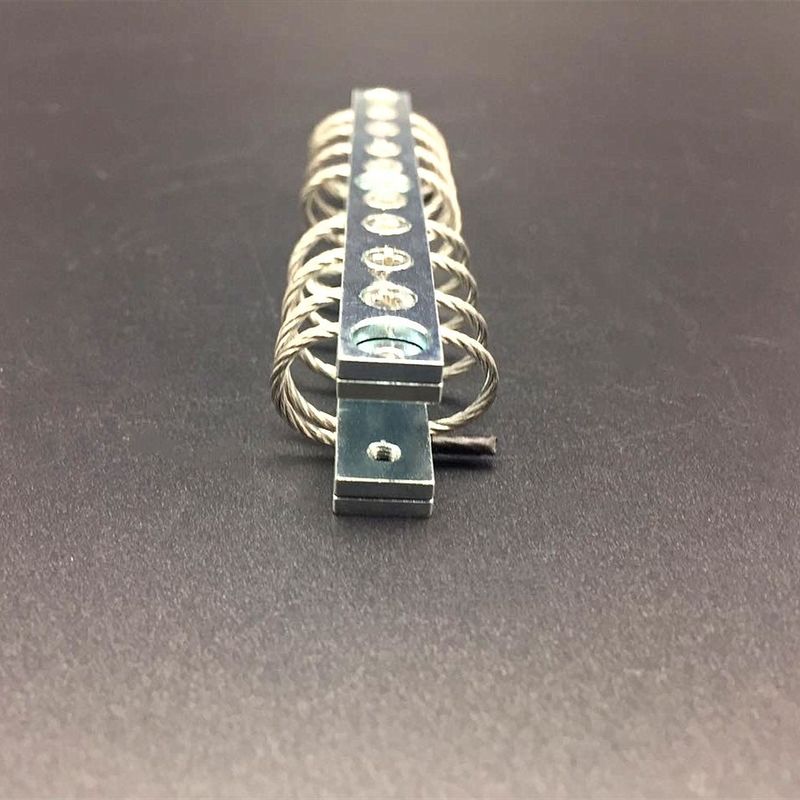

Vibration Damping Mount High Speed Rail Railway'S Cabinet Wire Rope Isolator

Wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.

This customized GH-20-3 model is the 8 loops 1.5mm diameter wire rope isolators with max static load of 2.0kg, which is designed especially for the using of noise attnuation of the high-speed rail and railway's cabinet, electric equipments and systems as well as precision equipments and systerms.

For the tinny size and aluminium material, this model wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.

We can design all the special customized viration isolators for all the customers depends on your requirements!

• Structural Diagram of GH-20-3:
• Technical Parameter Table of GH-20-3:

  Max Static Load	2.0kg
  Natural Frequency	9-16Hz
  Resonance Transfer Rate	≤3.5
  Max Static Deflection	1~3mm
  Working Tempreature	-55~+175℃
  Mounting Bars	20# Aluminium Galvanized
  Rope	Stainless Steel

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Applications of Wire Rope Isolators *

* Applications Show*

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.

Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.

Now, we are the best seller for more than 31 provinces in China and almost 35 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.

Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
