Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer

Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer

Aluminum Arch Wire Rope Isolators

Arch Circular Wire Rope Isolator

Aluminum Circular Wire Rope Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015 Certificate

Contact Us
Request A Quote
Product Details
Applicable Industries:
Translocation
Weight (KG):
1.67
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2023
Warranty:
Unavailable
Core Components:
Wirerope
Material:
Aluminum Or Stainless Steel
Application:
Land System, Shipbuilding, Transformer, Energy, Compressor, Launcher
Highlight:

Aluminum Arch Wire Rope Isolators

,

Arch Circular Wire Rope Isolator

,

Aluminum Circular Wire Rope Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 pieces
Product Description

 Land System Shipbuilding Transformer Energy Pump Compressor Launcher Shock Vibration Insulation JGX-1276D-176B Shock Abs

Product Description

 Xi’an Hoan’s extensive range of shock absorbers and elastomeric shock mounts, most equipment can be suspended successfully. Examples of common applications are electronic boxes, computers, monitors, radar units and similar. To use the correct equipment for the particular stress of your case, Hoan’s engineers performs the correct shock calculations.


The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

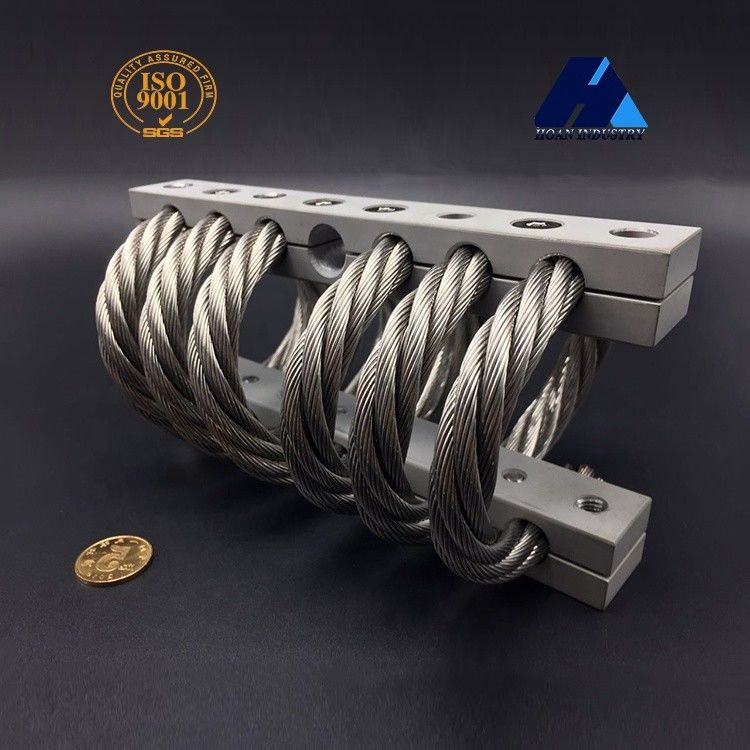

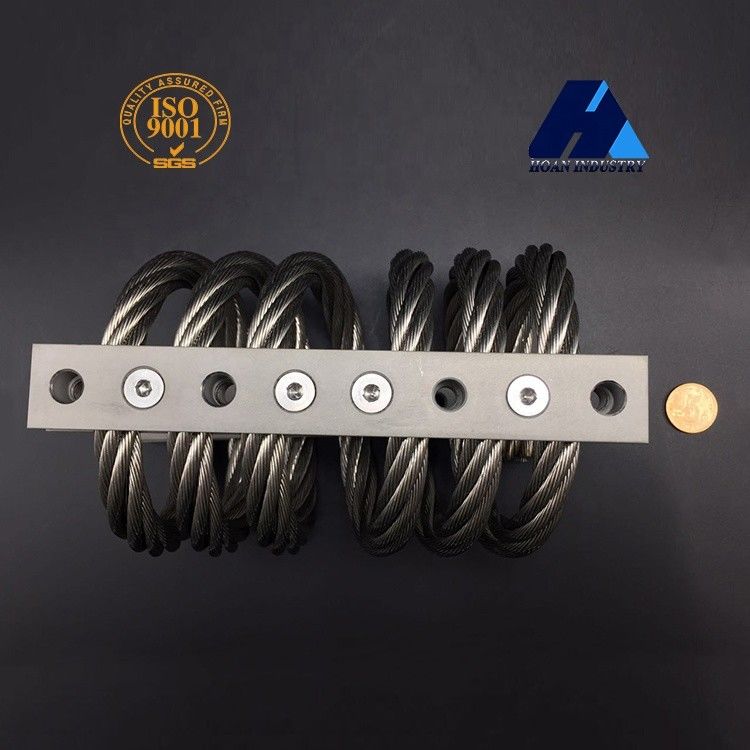

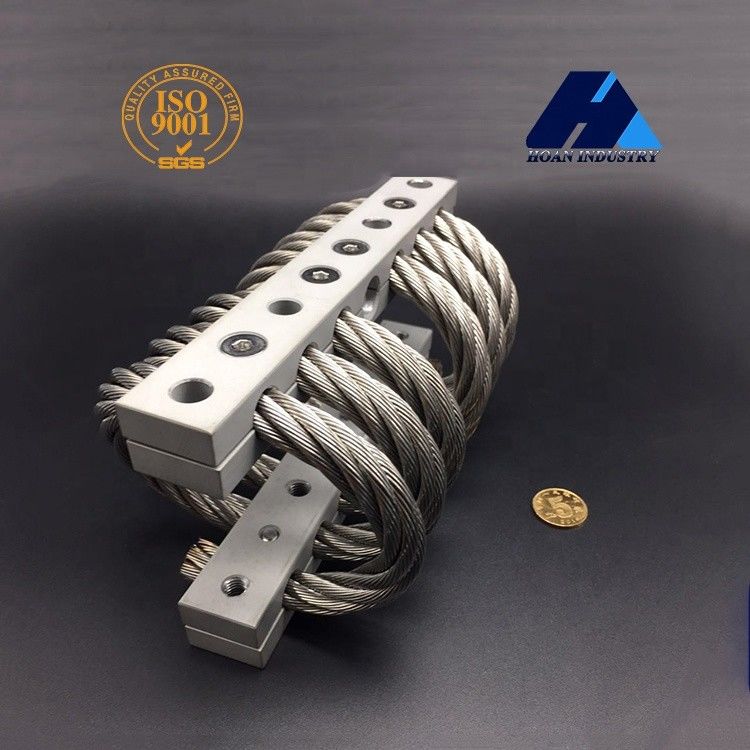

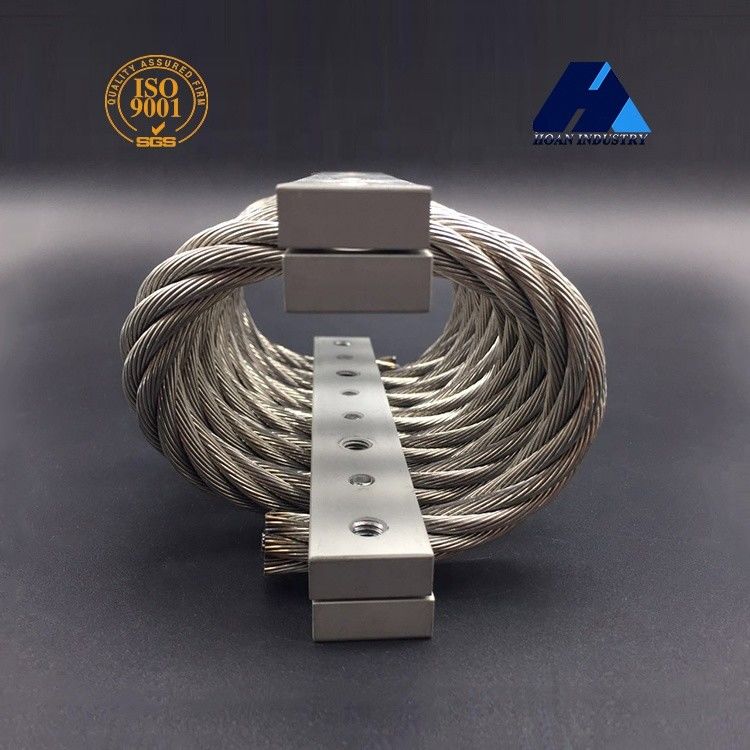

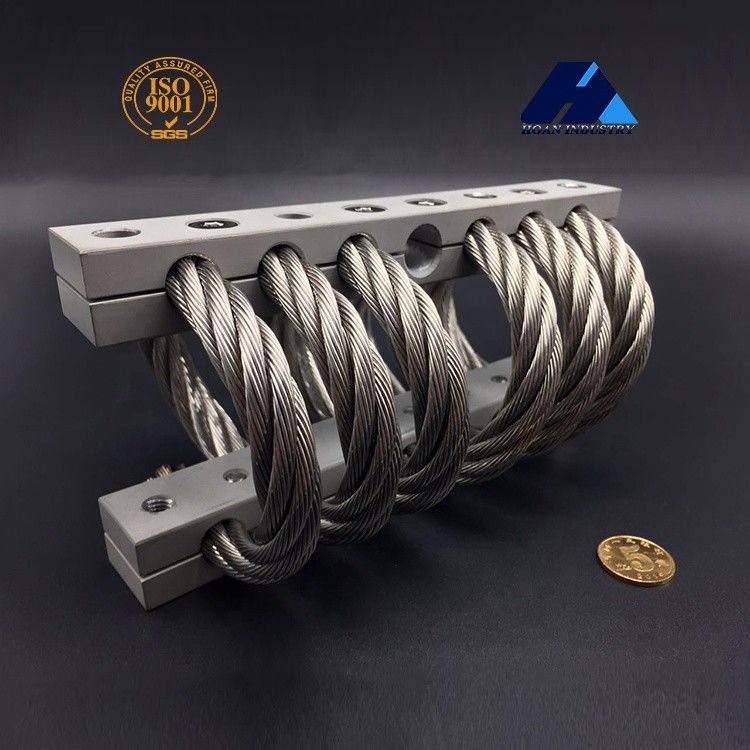

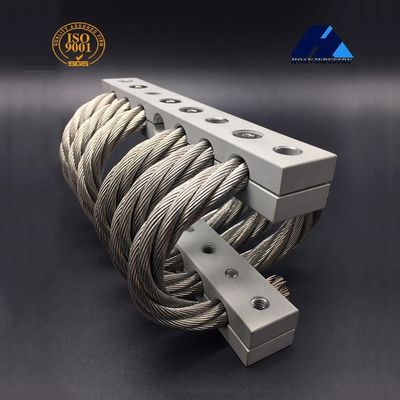

JGX-1276D-176B is the new designed 6 loops 12.7mm diameter model with max static load of 176kg, especially used in any instruments or systems for noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.



The JGX-1276D-176B model is now widely used in the field of vehicles, armored cars, launcher, highway transportation, marine, shipbuilding, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter
  • Model Number Code Ordering of JGX-1276D-176B:Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 0
  • Structural Diagram of JGX-1276D-176B:Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 1
  • Dimension of JGX-1276D-176B:Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 2
  • Mounting Options of JGX-1276D-176B:Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 3
  • Compression of JGX-1276D-176B:Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 4
  • 45° Compression of JGX-1276D-176B:Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 5
  • Shear/Roll of JGX-1276D-176B:Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 7



Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 8



Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 9



Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 10



Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 11



Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 12



Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 13



Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!

Certifications

Aluminum Arch Circular Wire Rope Isolator Land System Shipbuilding Transformer 14
