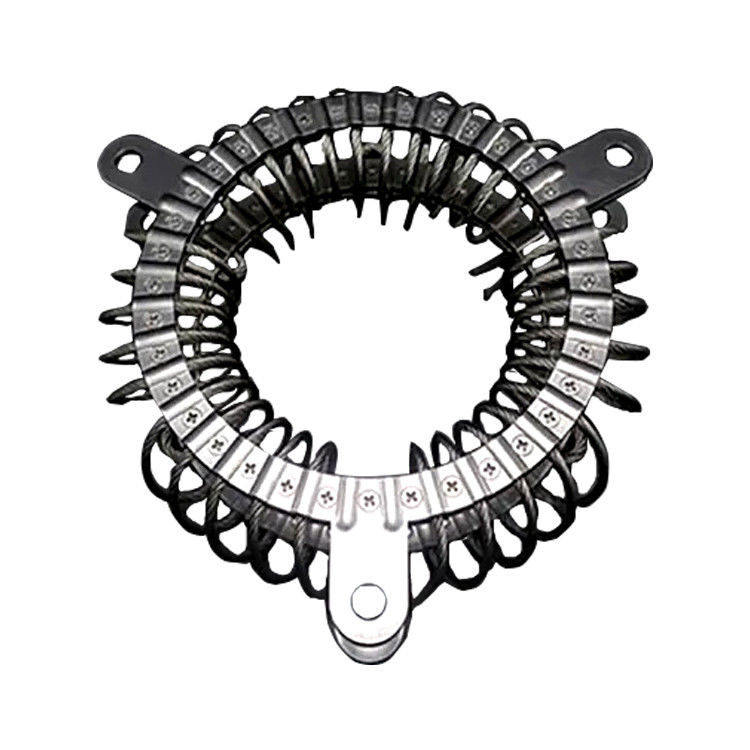

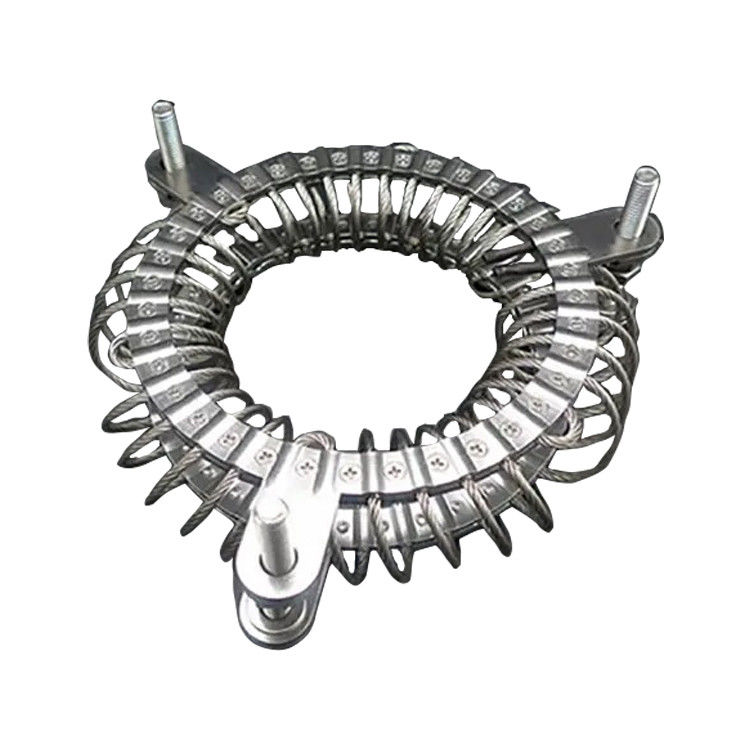

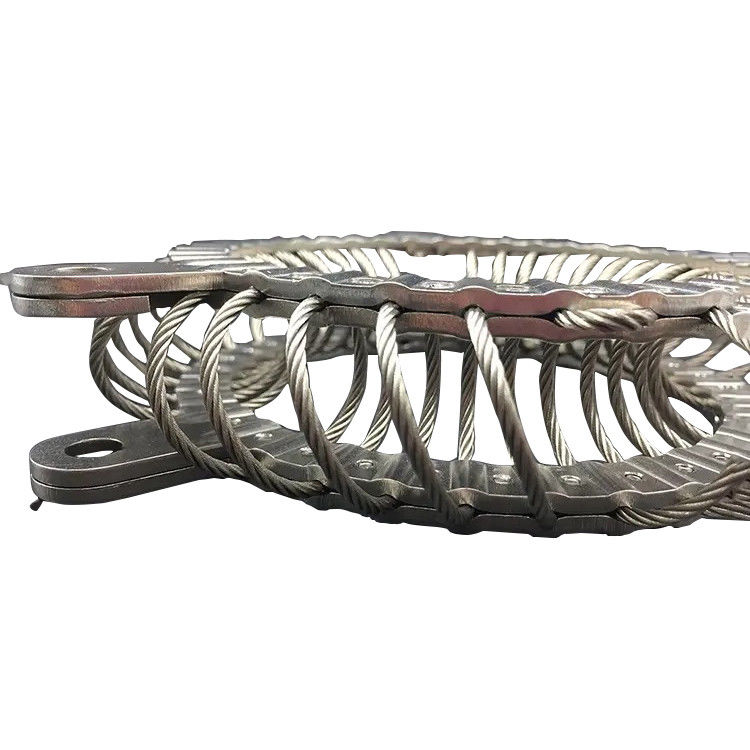

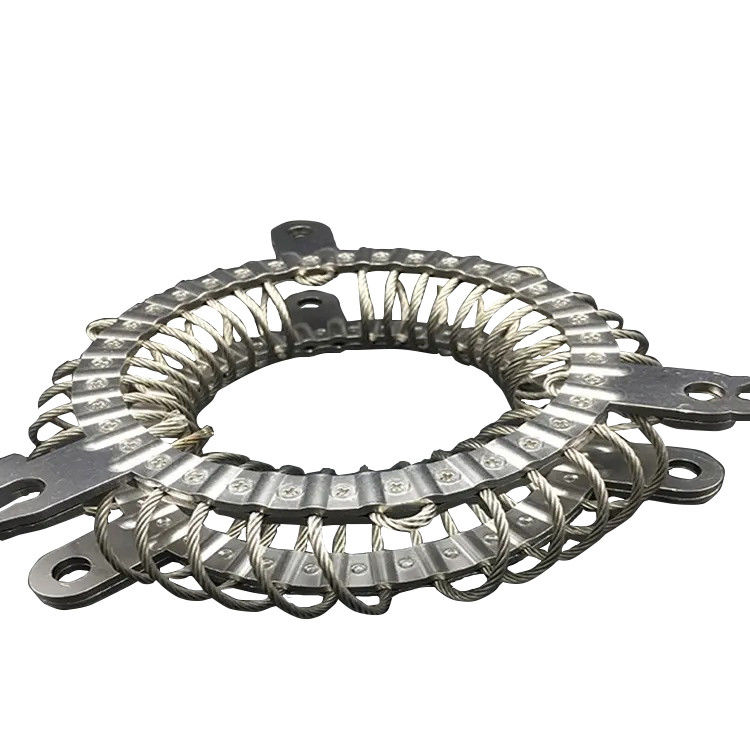

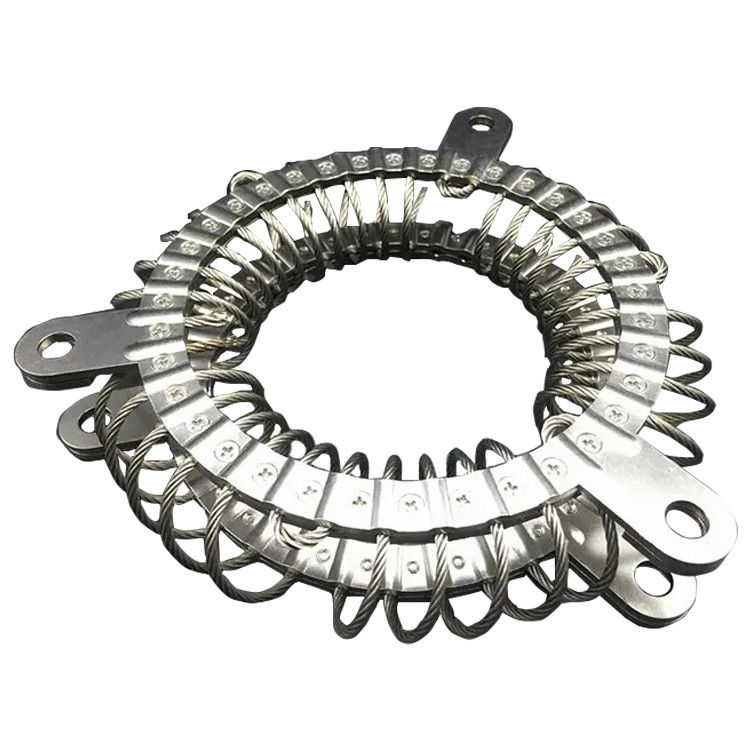

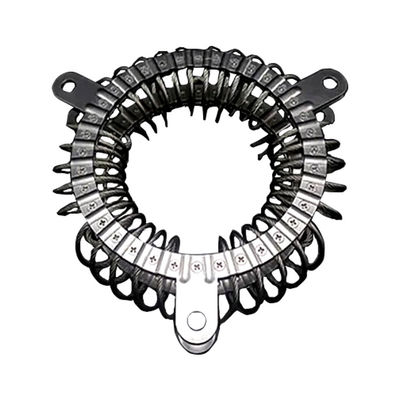

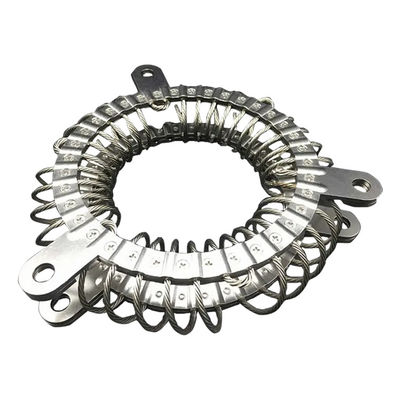

Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories

Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories

  • Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories
  • Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories
  • Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories
  • Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories
  • Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories
  • Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories
Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories
Product Details:
Brand Name: 4
Payment & Shipping Terms:
Price: $120.00 - $200.00/pieces
Packaging Details: Standard export packing or as per customers' requirements.
Supply Ability: 500 Piece/Pieces per Month
Contact Now
Detailed Product Description
Condition: New Type: SHOCK ABSORBER
Applicable Industries: Building Material Shops, Energy & Mining Weight (KG): 0.5
Showroom Location: None Video Outgoing-inspection: Not Available
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty: 1 Year Core Components: Gear

Product Description



Xi’an Hoan’s GRY series camera vibration isolators is the most versatile and customizable vibration isolation for filmmaking available. This multi-functional GRY series camera vibration isolators are used easily to build your camera gimbals to work more effectively and with less strain on its motors and bearings, which protects your shot from the jarring effects of an uneven terrain.



The max static load of the GRY series is from 5N (0.51kg) to 250N (25.51kg). The GRY series camera vibration isolator smoothes out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.



The GRY series camera vibration isolator have drastically reduce the time required to achieve smooth dynamic camera movement, reduces the amount of time necessary and the complexity involved with mounting a vibration isolator system to a vehicle.



Our GRY series camera vibration isolators can really give you the ability to find that perfect balance of resistance, not only for the camera gimbals but also for the terrain on which you will be operating.

Technical Parameter
  • Model Number Code Ordering of GRY Series:Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 0
  • Structural Diagram of GRY Series:Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 1
  • Dimension of GRY Series:Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 2
  • Technical Parameter of GRY Series:Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 3
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Main Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 4



Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 5



Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 6



Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 7



Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 8



Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 9



Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 10



Gry-100a Stainless Steel Vibration Mount The Perfect Fit for Machine Tool Accessories 11
