Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control

Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control

Place of Origin:

China

Brand Name:

Hoan

Contact Us
Request A Quote
Product Details
Condition:
New
Applicable Industries:
Building Material Shops, Energy & Mining
Weight (KG):
0.5
Showroom Location:
None
Video Outgoing-inspection:
Not Available
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty:
1 Year
Core Components:
Gear, Pump
Payment & Shipping Terms
Price
$39.00/pieces 1-99 pieces
Product Description
Product Description

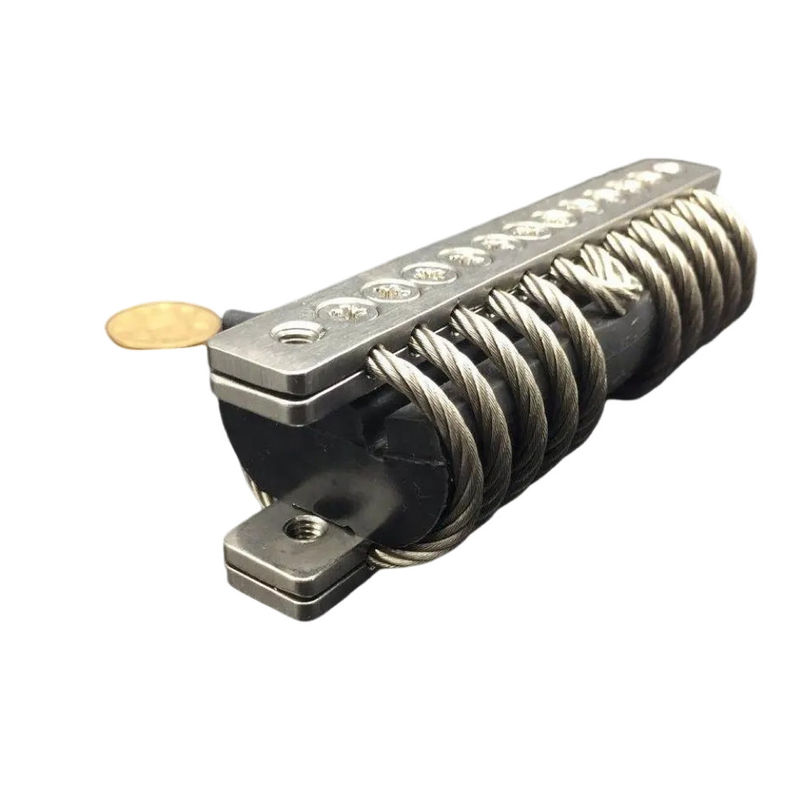

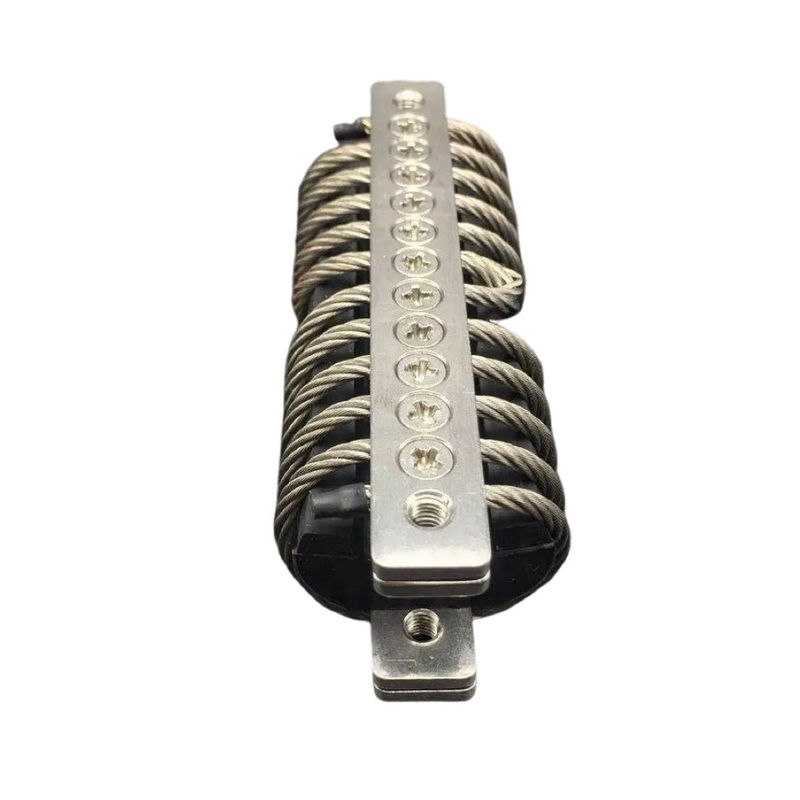

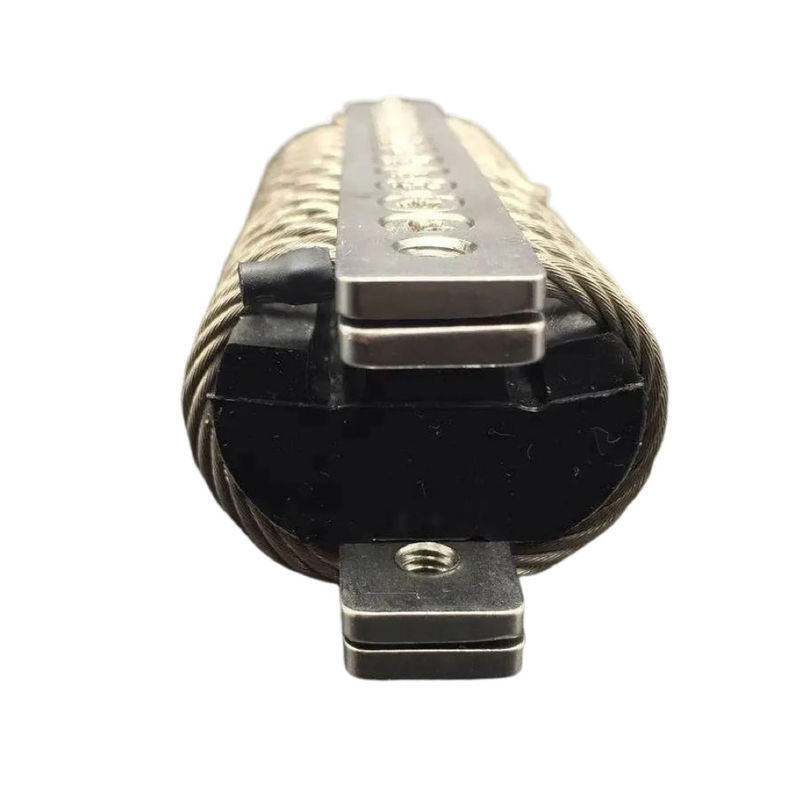

Wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.



The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

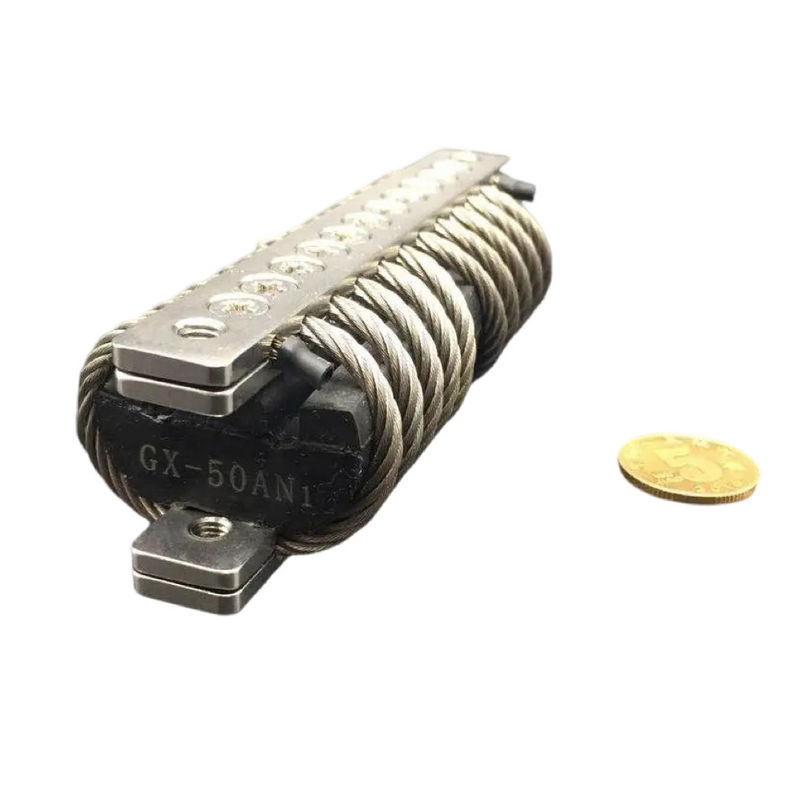

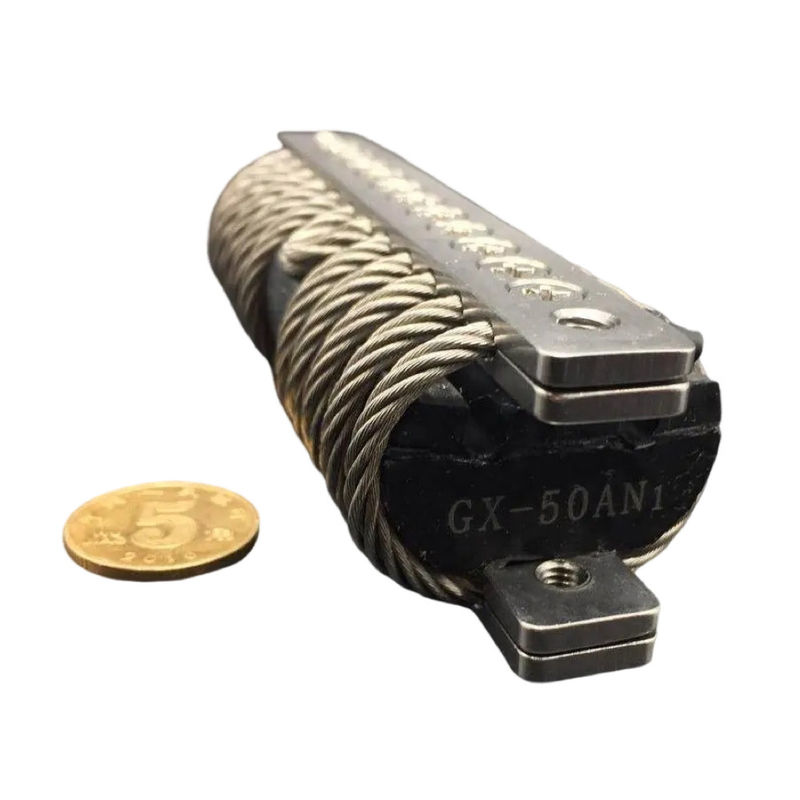

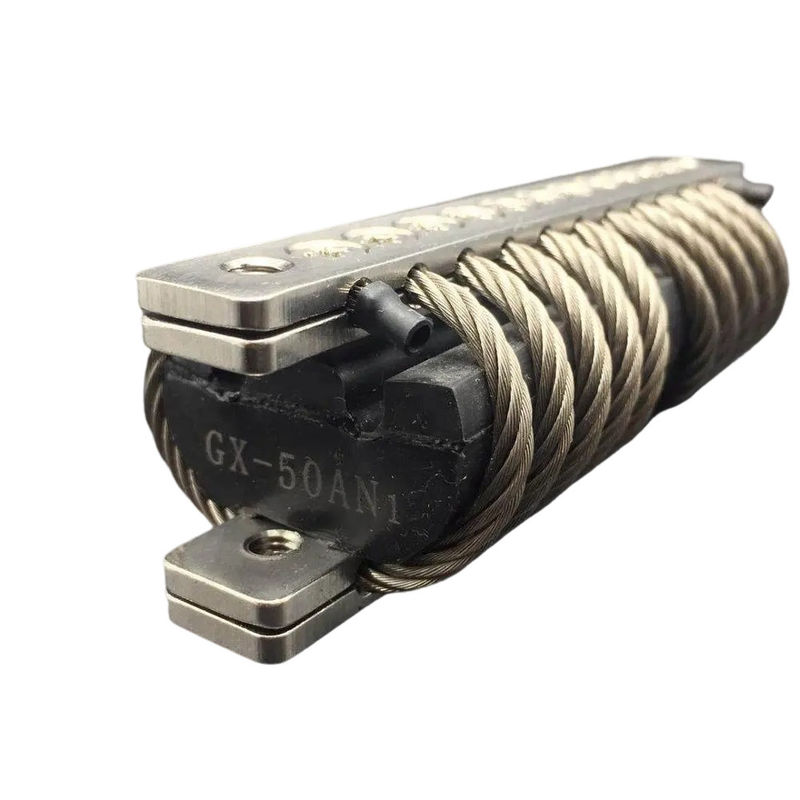

With unique oval rubbe pad in, the big impact of the GX-50AN wire rope isolators can be up to 100G. The nominal load of GX-50AN is 50N (5.10kg). This GX-N series is especially recommended for the military and defense use.



The low efficiency of side direction of the GX-N series has improved much in this new product wire rope isolator, which can be used in any exquisite equipments or systems which require for noise attenuation.



With stainless steel material, the GX series isolators have perfect performance of water-proof, anticorrosion as well as durability.



The wire rope isolators are now widely used in the field of vehicles, armored cars, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter
  • Model Number Code Ordering of GX-50AN:Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 0
  • Structural Diagram of GX-50AN:Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 1
  • Dimension of GX-50AN:Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 2
  • Technical Parameter of GX-50AN:Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 3
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments





* Applications Show *

Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 4



Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 5





 Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 6



Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 7



Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 8



Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 9



Energy Mining Applicable Wire Rope Isolator for Aerial Photography Shock Control 10
