JZP-6.0-SC1 Rubber Shock Absorber The Ideal Solution for Vibration Isolation in Harsh Environments

JZP-6.0-SC1 Rubber Shock Absorber The Ideal Solution for Vibration Isolation in Harsh Environments

Harsh Environments Rubber Shock Absorber

Vibration Isolation Rubber Shock Absorber

JZP-6.0-SC1 Rubber Shock Absorber

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JZP-6.0-SC1

Contact Us
Request A Quote
Product Details
Features:
Anchoring Holes; Oil Resistant
Product Load Capacity:
Customizable
Material:
Rubber
Vibration Reduction:
High
Warranty:
1 Year
Structure:
Solid
Wire Diameter:
0.5mm
Height:
50mm
Maximum Deflection:
1 Inch
Pressure Range:
High
Strand Construction:
7 X 19
Compression:
Customized
Core Components:
Bearing
Flexibility:
Flexible
Highlight:

Harsh Environments Rubber Shock Absorber

,

Vibration Isolation Rubber Shock Absorber

,

JZP-6.0-SC1 Rubber Shock Absorber

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

JZP-SC1 Series
The performance parameters of the JZP series friction damping isolators are excellent. It has a wide range of operating frequencies, which can adapt to the vibration frequencies of different equipment and effectively isolate the vibration of various frequencies. This series of products has good anti-damp heat, anti-salt spray, anti-mildew, high and low temperature resistance and other properties, can work stably in high and low temperature, chemical pollution and other harsh environments, can be widely used in airborne, vehicle-mounted, ship-borne and other electronic and mechanical equipment, computers and instruments and meters vibration isolation buffer, missile satellite carrier, navigation and launch system safety protection and other fields.


The JZP series of vibration isolators offers a number of significant performance advantages. First of all, it has demonstrated excellent capabilities in terms of vibration isolation performance. For low-frequency vibrations, it can accurately identify and effectively isolate to avoid equipment resonance caused by low-frequency vibrations. Low-frequency vibrations are often difficult to isolate due to their long wavelength and special energy propagation mode, but the JZP series vibration isolators can cope with this challenge well. At the same time, it also plays a significant attenuating effect on high-frequency vibrations. The high-frequency vibration isolation capability of this isolator can protect many electronic devices where high-frequency vibrations can cause signal interference, loose components, and other problems.

As a professional high-tech enterprise, Xi'an Hoan Microwave Co., Ltd. has profound technical accumulation and rich experience in the design, development and production of vibration isolators. The company has a number of senior scientific and technological personnel engaged in the research and development of electronic products, and is equipped with a number of high-precision CNC lathes and various electrical performance testing equipment, with good machining capabilities and strict quality control system, to ensure the high quality and reliability of JZP series friction damping isolators.

Product dimensions

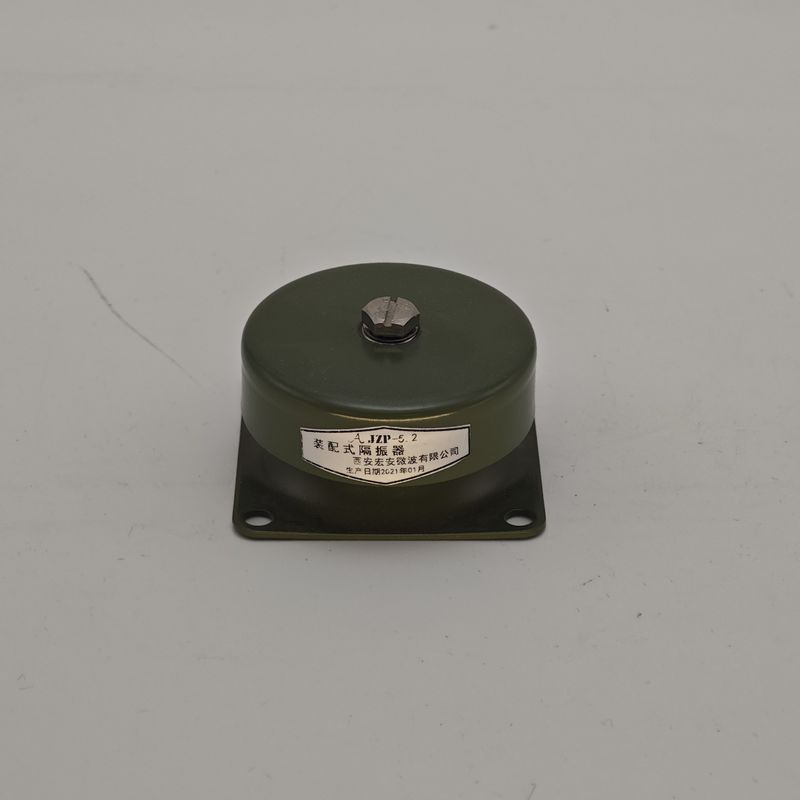

JZP-6.0-SC1 Rubber Shock Absorber The Ideal Solution for Vibration Isolation in Harsh Environments 0

Series

D

(mm)

H±1

(mm)

h

(mm)

A±0.2

(mm)

B

(mm)

dd2R

b

(mm)

h1

(mm)

JZP-SC1603621.75060M5Φ5.55283.4


Product parameters

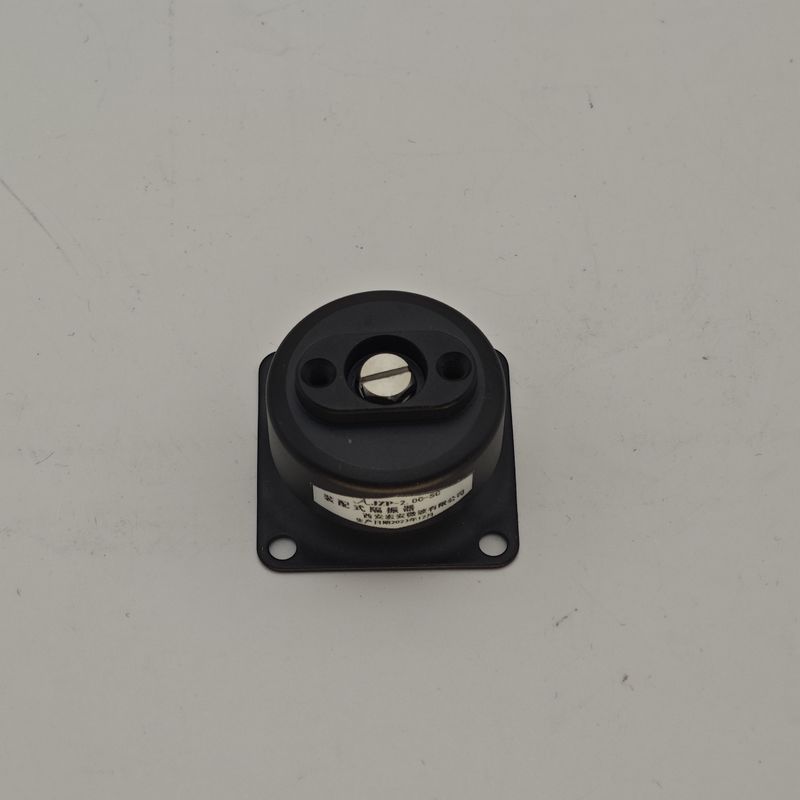

JZP-6.0-SC1 Rubber Shock Absorber The Ideal Solution for Vibration Isolation in Harsh Environments 1

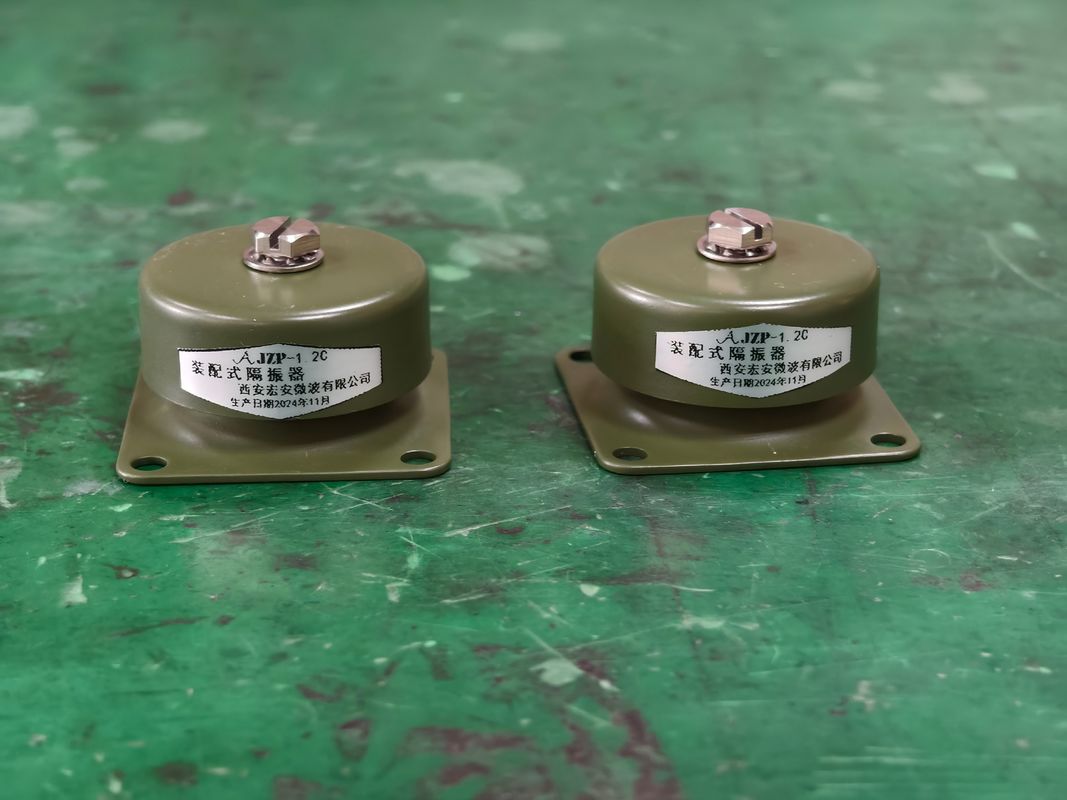

JZP-6.0-SC1 Rubber Shock Absorber The Ideal Solution for Vibration Isolation in Harsh Environments 2

Model

Nominal Load

(KG)

Deflection

Working Temperature

(℃)

Resonant Frequency

(Hz)

Damping ratioImpact test

Expiration date

(year)

JZP-3.2-SC13.2≤0.3-45~+6541.5±5≥0.13100G12次8
JZP-4.2-SC14.2
JZP-5.2-SC15.2
JZP-6.0-SC16.0
JZP-7.0-SC17.0
JZP-7.5-SC17.5
JZP-9.0-SC19.0
JZP-10.5-SC110.5
JZP-13.5-SC113.5
JZP-15-SC115
