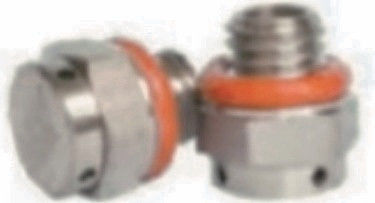

HA-12A-1 Waterproof and Breathable Valve Nanoscale Microporous Structure for Customized Products

HA-12A-1 Waterproof and Breathable Valve Nanoscale Microporous Structure for Customized Products

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

HA-12A-1

Contact Us
Request A Quote
Product Details
Shipping:
By Sea
Payment Options:
Varies Depending On Customer's Needs
Test Speed:
1 ㎜ / S ~ 6 ㎜ / S Adjustable
Core Components:
Design
Force:
20N
Material:
Varies Depending On Customer's Needs
Product Type:
Customized
Machinery Test Report:
Not Available
Durability:
Customized
Logo:
Customized
Certficate:
ISO 9001:2015
Application:
Machine, Electronics, Console, Sensor
Marketing Type:
New Product 2024
Sample Availability:
Customized
Payment & Shipping Terms
Minimum Order Quantity
4 piences
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

Waterproof and breathable valve

The waterproof and breathable valve can achieve the seemingly contradictory functions of waterproofing and ventilation, and behind this lies its ingenious working principle. This principle is based on the special physical properties of the breathable membrane and the structural design of the entire valve.



The nanoscale microporous structure of the breathable membrane is the key. Due to thermal motion, gas molecules are in a constant state of random motion. The diameter of these molecules is much smaller than the size of the micropores, and they have sufficient kinetic energy. Therefore, they can easily pass through the micropores, enabling gas exchange between the inside and outside of the equipment and achieving the purpose of ventilation.



Liquid water molecules, however, are different. On the one hand, there are strong hydrogen - bonding forces between water molecules, causing them to tend to aggregate together to form larger clusters. On the other hand, the size of these clusters is larger than the micropores of the breathable membrane, preventing them from passing through. In addition, surface tension also comes into play. When water comes into contact with the breathable membrane, the surface tension causes water to form droplets on the membrane surface, further preventing water penetration and thus achieving the waterproof function.



When the internal pressure of the equipment is higher than the external pressure due to factors such as temperature increase or chemical reactions, under the action of the pressure difference, gas is discharged from the inside through the breathable valve along the concentration gradient to balance the internal pressure. Conversely, when the external pressure is higher than the internal pressure, external gas will enter the inside. At the same time, the outer shell of the waterproof and breathable valve protects the breathable membrane, enabling it to work normally in harsh environments. This clever design based on physical principles enables the waterproof and breathable valve to reliably achieve the dual functions of waterproofing and ventilation under various complex conditions.



precision instruments

HA-12A-1 Waterproof and Breathable Valve Nanoscale Microporous Structure for Customized Products 0

L L1 H Ø MP
21 10 17 17.2 M12*1.5



Product dimensions

Air permeability

10ml/min atp=1KPa

Water - blocking pressure -120mbar(>1M)
Operating Temperature -50S℃~150℃
Protection level IP68 or IP67

FAQ

Q:Are you manufactory or trade company?

A:We are manufactory specialized in pratective vent and have the direct price!

Q:What is the price?
A:Please leave your whatsapp or email address. We will send details to you.

Q: Is there after-sales guarantee for the purchase of Xi 'an Hoan Microwave Co.,LTD?
A:Yes, we provide perfect after-sales service, if you encounter any problems in the process of use, you can contact us, there will be professionals for you to solve.

Q:How do you ship the goods and how long does it take to arrive?
A:We usually ship by DHL, UPS, FedEx or TNT if sample. It usually takes7-10 days to arrive. If big order will ship by sea.
