Name: JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-1.0B-SC
Availability: InStock

Home > Products > Rubber Shock Absorber >

JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate

M5 Mounting Hole Size Rubber Shock Absorber

1 inch Maximum Deflection Vibration Isolator

100-1000 lbs/in Spring Rate On-Vehicle Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JZP-1.0B-SC

Request A Quote

Product Details

Width:

60mm

Core Components:

Engine, Gear

Shape:

Cylindrical

Corrosion Resistance:

Resistant To Corrosion

Oem:

Yes

Mounting Hole Size:

Compatibility:

Fits Most Standard Shock Absorber Systems

Flexibility:

Flexible

Type:

SHOCK ABSORBER

Maximum Deflection:

1 Inch

Spring Rate:

100-1000 Lbs/in

Pressure Resistance:

High

High:

30mm

Vibration Frequency:

5-50Hz

Highlight:

M5 Mounting Hole Size Rubber Shock Absorber

1 inch Maximum Deflection Vibration Isolator

100-1000 lbs/in Spring Rate On-Vehicle Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Get Best Price

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Get Best Price

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Get Best Price

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Get Best Price

86-29-88292913

Contact Now

Product Description

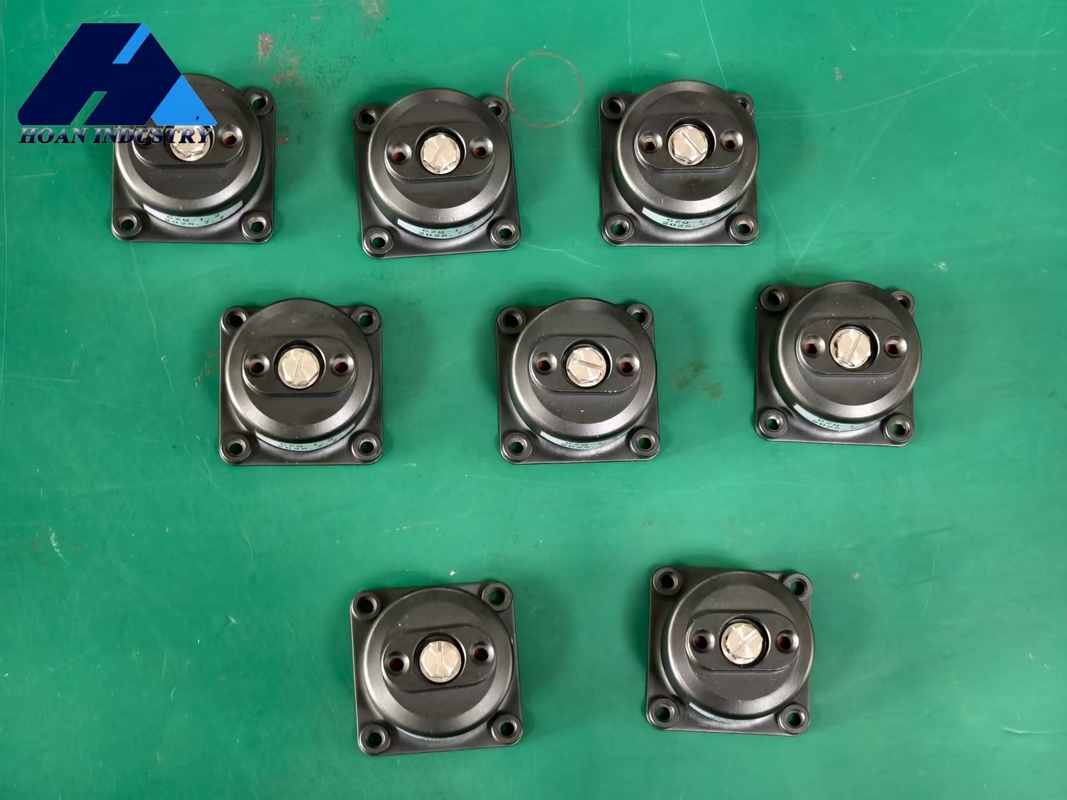

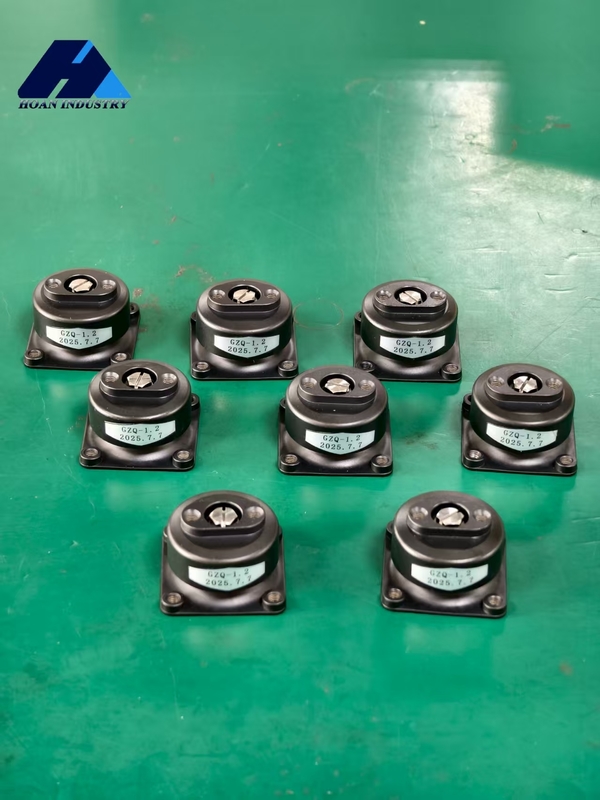

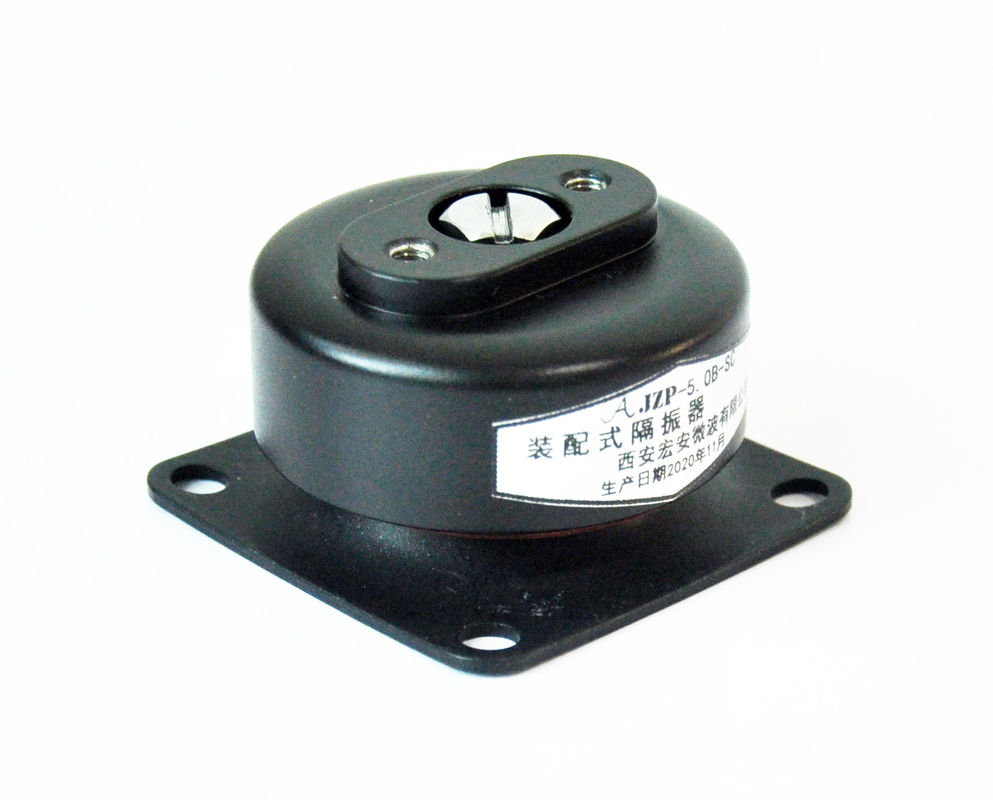

JZP-1.0B-SC On-Vehicle Modular Vibration Isolators

The Ultimate Protection and Stability Solution Rubber Shock Absorber

JZP-B-SC Series

Master Turbulence, Safeguard Core Stability: Xi'an Hoan's JZP Series Vibration Isolators redefine on-vehicle equipment stability with military-grade technology.

On moving vehicles, the greatest threat to precision electronic equipment comes from sustained vibration and impact. Drawing on military technology heritage, Xi'an Hoan Microwave Co., Ltd. developed the JZP Series as the "dynamic stability cornerstone" for on-vehicle precision equipment.

The JZP Series features an advanced modular structure combining high-damping elastic materials with precision-engineered mechanical components. This creates an efficient energy conversion system that absorbs and dissipates destructive vibrations, establishing a reliable buffer between equipment and vibration sources.

Unlike traditional shock-absorbing solutions, the JZP Series offers unparalleled adaptability. Its modular design allows flexible configuration for cabinets, servers, communication hosts, or precision sensors based on weight, center of gravity, and vibration sensitivity requirements.

Essential for military communications, emergency command, and remote sensing monitoring applications, these isolators enable high-tech equipment to maintain laboratory-grade stability even during high-speed vehicle movement.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Performance Curves

Vibration Characteristics

Impact Characteristics
