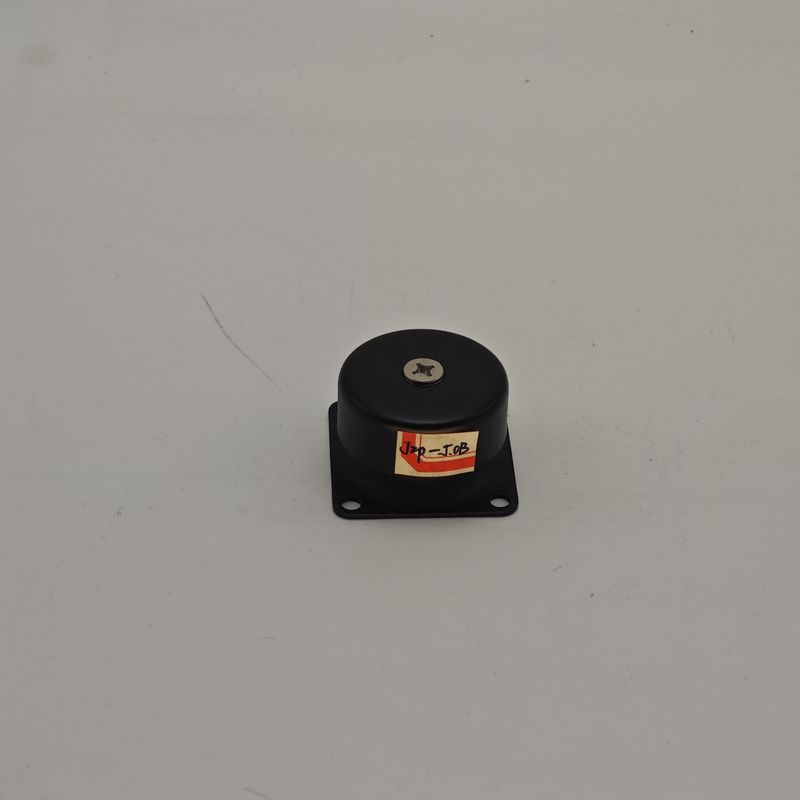

JZP-1.5B-SC Vibration Isolator with 5-50Hz Vibration Frequency 10 Hz Natural Frequency and 1.5kg Maximum Load Capacity

Name: JZP-1.5B-SC Vibration Isolator with 5-50Hz Vibration Frequency 10 Hz Natural Frequency and 1.5kg Maximum Load Capacity
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-1.5B-SC
Availability: InStock

Brand Name:	Hoan
Model Number:	JZP-1.5B-SC
MOQ:	4
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Feature:

Vibration Isolation

Pressure Range:

High

Function:

Reduce Noise And Protect Equipment

High:

30mm

Vibration Isolation Type:

Passive

Drawing Format:

DWG And PDF

Port:

Xi'an Or Specified

Vibration Reduction:

High

Vibration Frequency:

5-50Hz

Applicable Industries:

Energy & Mining

Core Components:

Engine, Gear

Resistance:

Abrasion And Tear Resistance

Design Style:

Industrial

Natural Frequency:

10 Hz

Maximum Load Capacity:

1.5kg

Highlight:

5-50Hz Vibration Frequency Vibration Isolator

10 Hz Natural Frequency Rubber Shock Absorber

1.5kg Maximum Load Capacity JZP Series Vibration Isolator

Product Description

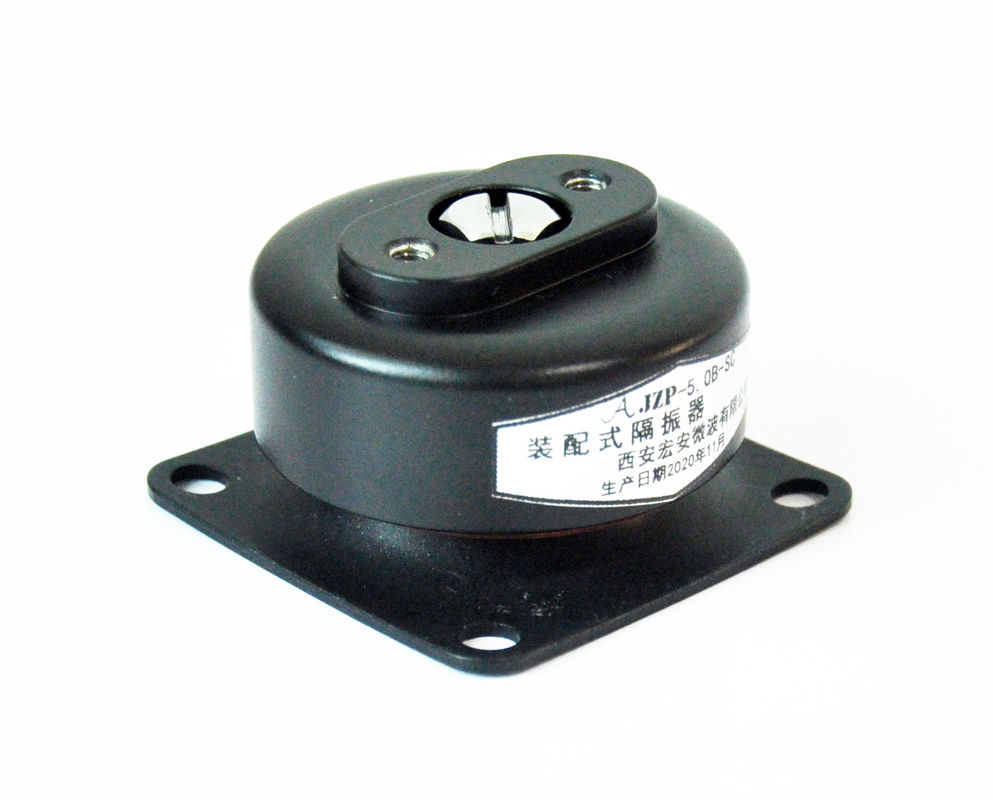

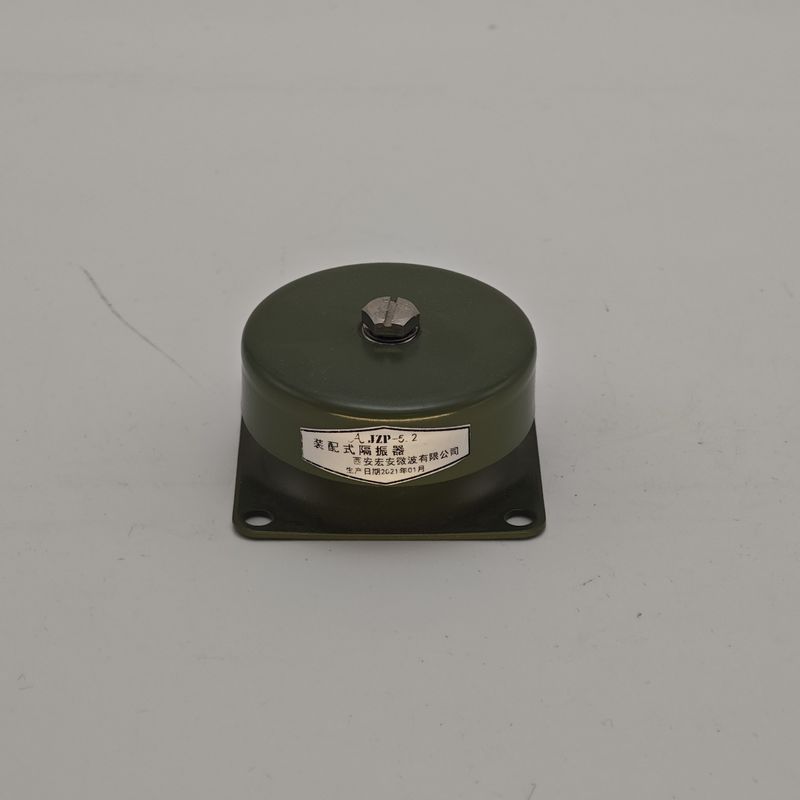

JZP-1.5B-SC Vibration Isolators

The Essential Component for Cost Reduction Efficiency Enhancement of On-Vehicle Equipment

JZP-B-SC Series

The Mobile Cornerstone of the Intelligent Era

Xi'an Hoan Microwave Co., Ltd.'s JZP Series On-Vehicle Modular Vibration Isolators are designed for seamless compatibility with intelligent on-vehicle systems in the 5G, IoT and AI technology era.

Key Features

Lightweight Design with High Load-Bearing Capacity: Adapts to various intelligent devices from edge computing gateways to server clusters with load capacity ranging from tens to hundreds of kilograms.
Electromagnetic Compatibility (EMC): Special design at metal/non-metal junctions minimizes electromagnetic interference while maintaining proper grounding.
Easy Maintenance & Upgrade: Modular design enables quick equipment maintenance or replacement without removing the entire vibration isolation system.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration

Impact

The JZP Series Vibration Isolators serve as the reliable bridge connecting traditional mechanical protection with modern intelligent equipment requirements.
