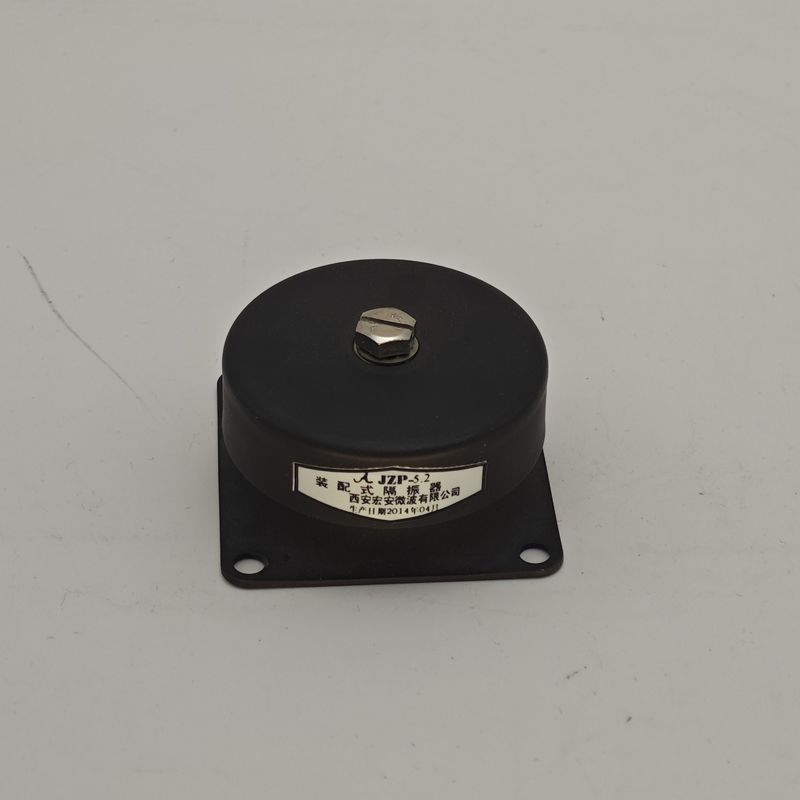

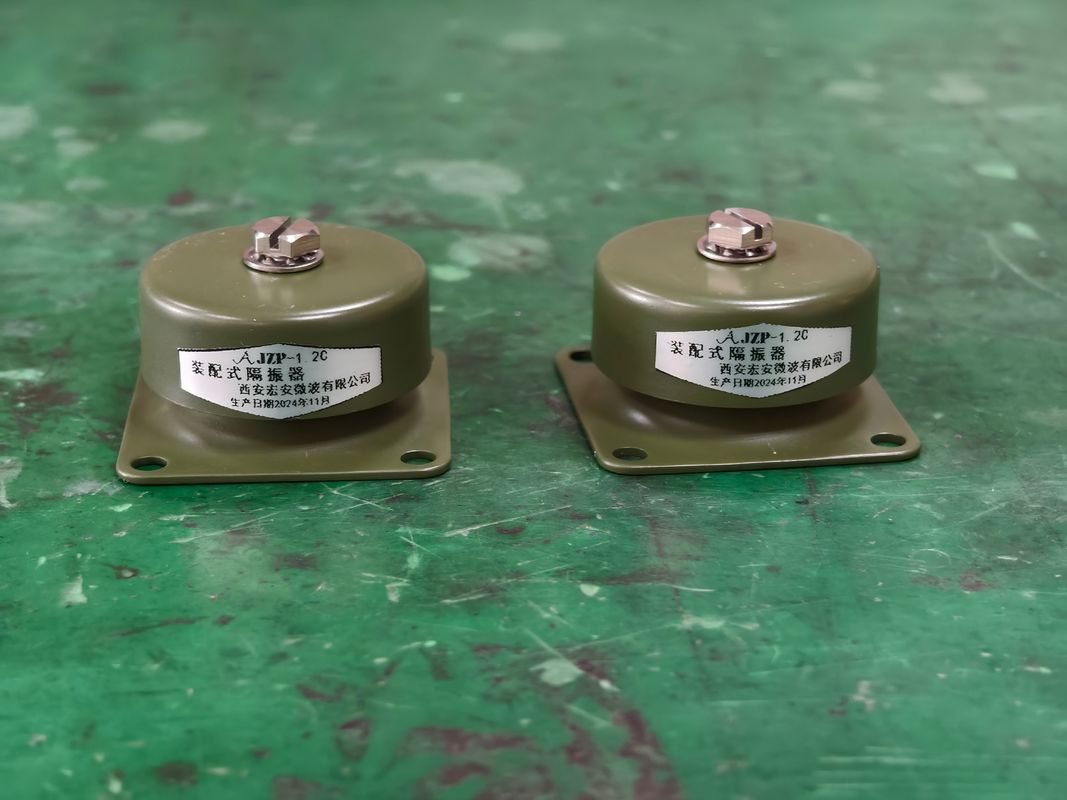

JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption

Name: JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-2.0B-SC
Availability: InStock

Brand Name:	Hoan
Model Number:	JZP-2.0B-SC
MOQ:	4
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Features:

Anchoring Holes; Oil Resistant

Characteristic:

Wide Working Frequency, Long Life Span

Working Temperature:

-55 ~ +120

Height:

30mm

Product Certification:

ISO 9001

Diameter:

0.25-2 Inches

Port:

Xi'an Or Specified

Packing:

Standard Packing

Working Temperatu:

: -55 ~ +120

Color:

Black

Accessories:

Net

Function:

Absorb Energy And Dissipate It As Heat

Highlight:

30mm Rubber Shock Absorber

Anchoring Holes Vibration Isolator

Energy Absorption JZP Series

Product Description

Rubber Shock Absorber for On-Vehicle Equipment JZP-2.0B-SC for Long-Term Cost Reduction Efficiency Enhancement

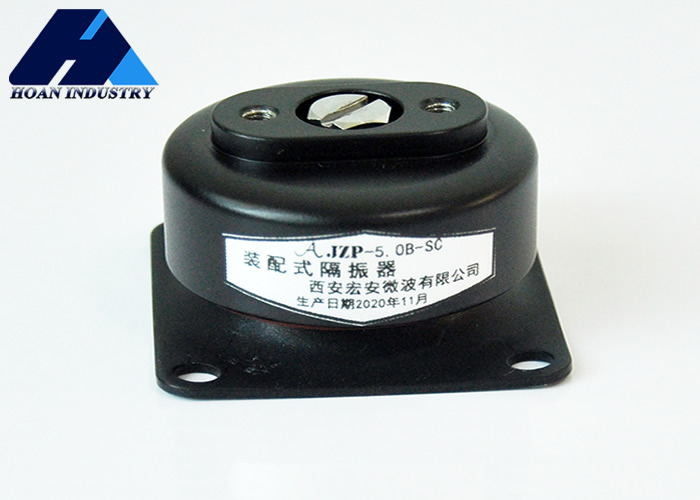

JZP-B-SC Series

Engineering Wisdom for Cost Reduction & Efficiency Enhancement: The Whole-Life-Cycle Value of Xi'an Hoan's JZP Series Vibration Isolators

When procuring on-vehicle equipment components, the initial cost is just the beginning. The JZP Series On-Vehicle Modular Vibration Isolators from Xi'an Hoan Microwave Co., Ltd. offer exceptional engineering design and long-lasting reliability, delivering outstanding whole-life-cycle value for users seeking long-term cost reduction and efficiency enhancement.

Reducing Maintenance Costs: Equipment without proper vibration isolation experiences exponentially higher failure rates. The JZP Series minimizes equipment failures through source protection, significantly reducing repair costs and downtime.
Extending Equipment Service Life: Vibration and impact are primary causes of electronic equipment failure. JZP vibration isolators provide life-extension protection for precision devices, delaying expensive replacement cycles and improving ROI.
Enhancing System Availability: For critical applications like emergency communications and operations, the JZP Series ensures continuous equipment operation during movement, where its value far exceeds its purchase price.

Choosing Xi'an Hoan's JZP Series represents a forward-looking, highly cost-effective strategic investment rather than a simple procurement decision.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Vibration and Impact Performance Curves

Vibration Performance

Impact Performance
