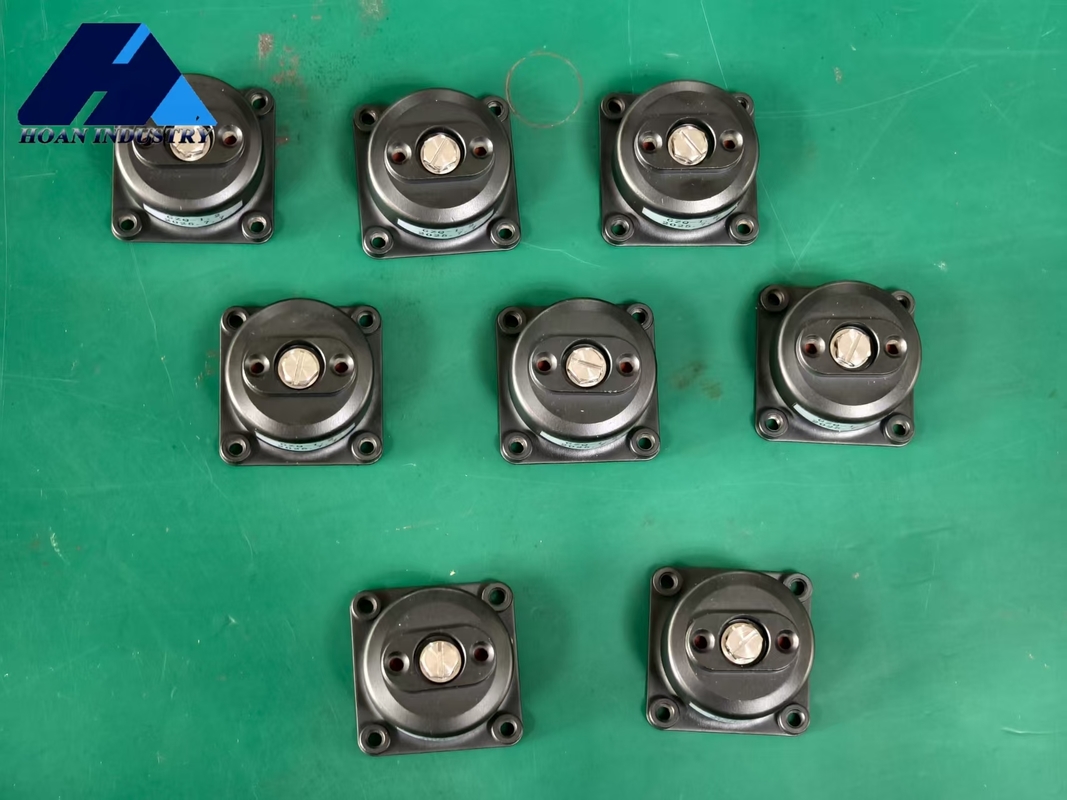

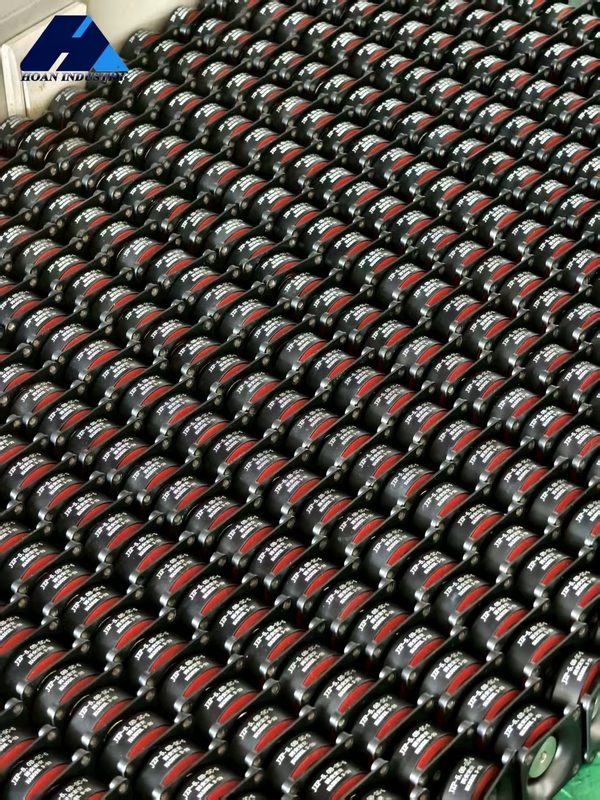

Name: JZP-6.0B-SC Hot Product 2024 Rubber Shock Absorber with 6.7KG Load Range and Condition Monitoring
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-6.0B-SC
Availability: InStock

Home > Products > Rubber Shock Absorber >

JZP-6.0B-SC Hot Product 2024 Rubber Shock Absorber with 6.7KG Load Range and Condition Monitoring

Hot Product 2024 Rubber Shock Absorber

6.7KG Load Range Vibration Isolator

Condition Monitoring Friction Damping Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JZP-6.0B-SC

Request A Quote

Product Details

Isolation Frequency:

5Hz

Durability:

High

Temperature Range:

Wide

Usage:

Absorbing Shocks And Vibrations

Color:

Black

Product Certification:

ISO 9001

Load Range:

6,7KG

Appliocation:

Autos, Machinery,Engines

Product Keywords:

Friction Damping Isolators

Installation Type:

Horizontal/Vertical

Cost:

Affordable

Marketing Type:

Hot Product 2024

Resonance Frequency:

30 Hz

Showroom Location:

None

Highlight:

Hot Product 2024 Rubber Shock Absorber

6.7KG Load Range Vibration Isolator

Condition Monitoring Friction Damping Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Get Best Price

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Get Best Price

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Get Best Price

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Get Best Price

86-29-88292913

Contact Now

Product Description

JZP-6.0B-SC High-Performance Vibration Isolation and Condition Monitoring for Rubber Shock Absorber

JZP-B-SC Series

Towards the Future: Development Prospect of the JZP Series and Intelligent Vibration Isolation Technology

Technology knows no bounds. Xi'an Hoan Microwave Co., Ltd. continues to invest heavily in R&D, focusing on emerging demands for future on-vehicle vibration isolation technology. The JZP Series platform is evolving towards smarter, more integrated, and more active solutions.

Intelligent Vibration Isolation and Condition Monitoring

Future generations of the JZP Series may integrate micro MEMS accelerometers and IoT modules, enabling real-time monitoring of vibration isolation status and equipment vibration magnitude. This data can be uploaded to cloud platforms via wireless networks, supporting predictive maintenance, fleet management optimization, and vehicle Prognostics and Health Management (PHM).

Active and Semi-Active Vibration Isolation Technologies

For ultra-high vibration isolation requirements—such as on-vehicle lithography machines and quantum communication devices—Xi'an Hoan is exploring active/semi-active vibration isolation technologies. Using sensors, controllers, and actuators, this system can achieve precise control over specific frequency vibrations, especially low-frequency ones.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Curve of JZP-B-SC Series

Vibration

Impact
