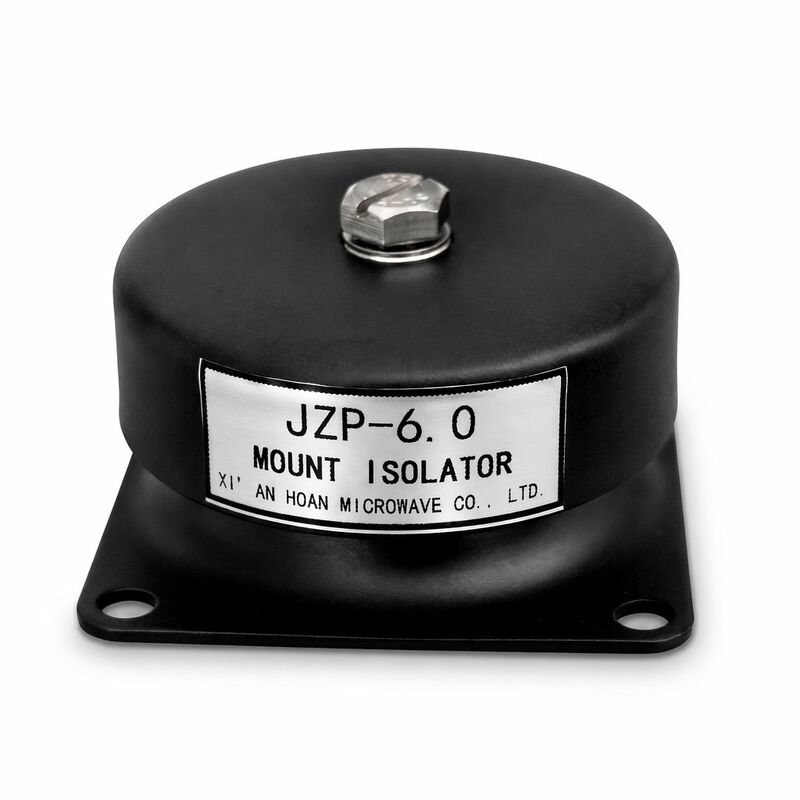

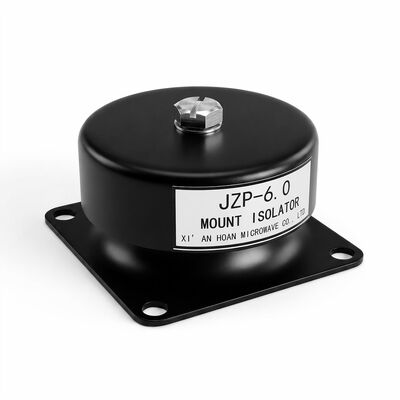

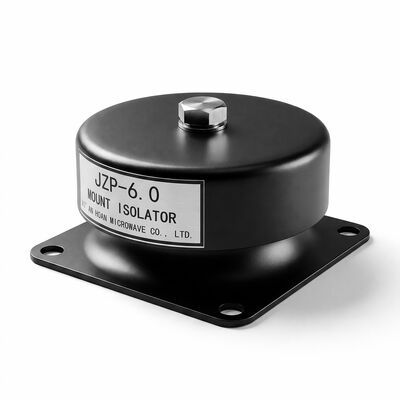

JZP-6.0 Eco-Safe Rubber Shock Absorber Squeak-Free Self-Lubricated Damper for Industrial Equipment

JZP-6.0 Eco-Safe Rubber Shock Absorber — Sustainable Vibration Control

The JZP-6.0 represents a new generation of industrial vibration isolators built around Eco-Safe & Non-Toxic Formula principles. Unlike conventional rubber mounts that rely on carbon black extenders and aromatic process oils, this unit utilizes a carefully formulated NR/SBR blend that eliminates polycyclic aromatic hydrocarbons, phthalate plasticizers, and heavy metal stabilizers from the compound. The result is a vibration damping solution suitable for indoor production floors, food-grade equipment peripherals, and enclosed machinery spaces where air quality and material safety are operational priorities.

Material Composition & Regulatory Compliance

The elastomer body is a co-vulcanized NR/SBR matrix with a silica-reinforced filler system replacing traditional carbon black. This formulation achieves Shore A 55±5 hardness while maintaining RoHS (2011/65/EU) and REACH (EC 1907/2006) compliance. Low volatile organic compound emissions make the JZP-6.0 compatible with ISO 14001-certified manufacturing environments. The zinc-plated steel base plate provides a corrosion-resistant mounting interface without chromium-VI passivation, aligning with end-of-life recycling directives.

Squeak-Free Self-Lubricated Compound Technology

Friction-induced noise at the rubber-to-metal bond interface is a persistent problem in traditional bonded mounts. The JZP-6.0 addresses this through a Squeak-Free Self-Lubricated Compound that incorporates internally migrated lubricant micro-dispersions within the rubber matrix. During cyclic loading, these lubricant domains migrate to the surface, maintaining a microscopic lubricating film that eliminates stick-slip conditions. Unlike externally applied lubricants that attract dust and degrade over time, this embedded lubrication mechanism is integral to the compound—no reapplication, no contamination risk, and no maintenance intervention required across the full service life of the mount.

Physical Dimensions & Mechanical Construction

Dynamic Performance Characteristics

Installation Recommendations

• Mounting surface flatness: ≤ 0.2 mm across base plate footprint
• Stud tightening torque: 35 ± 3 N·m (use calibrated torque wrench)
• Avoid direct exposure to ozone-generating equipment or UV radiation without shielding
• For multi-point installations, ensure ≤ 1 mm height tolerance between adjacent mounts
• Operating orientation: vertical compression preferred; lateral loading should not exceed 15% of rated axial load
• Storage: 5–35°C, ≤ 70% RH, away from direct sunlight and chemical vapors

Quality Control & Traceability

Every production batch undergoes: incoming raw material FTIR spectroscopy verification, in-process rheometer curve monitoring, 100% dimensional inspection with digital calipers, and batch-level dynamic stiffness sampling per AQL 1.0 Level II. Each mount carries a laser-etched batch code on the base plate for full raw-material-to-finished-product traceability. Third-party RoHS and REACH compliance certificates are renewed annually and available upon request.

Application Domains

The JZP-6.0 serves HVAC compressor bases, industrial fan and blower mounts, small generator set isolation, packaging machinery vibration damping, and cleanroom auxiliary equipment. Its non-toxic formulation makes it particularly valuable for pharmaceutical packaging lines, food processing support equipment, and enclosed manufacturing cells where personnel spend extended periods in proximity to machinery.
