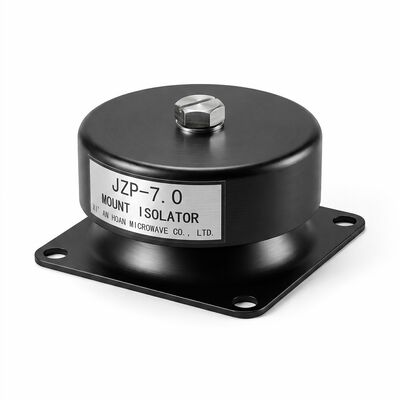

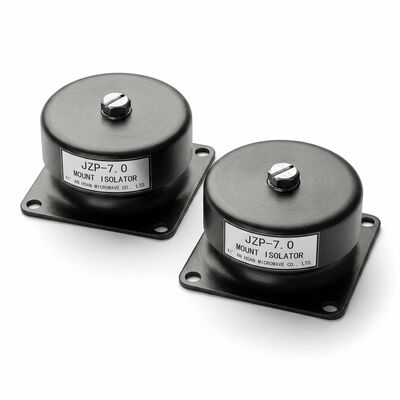

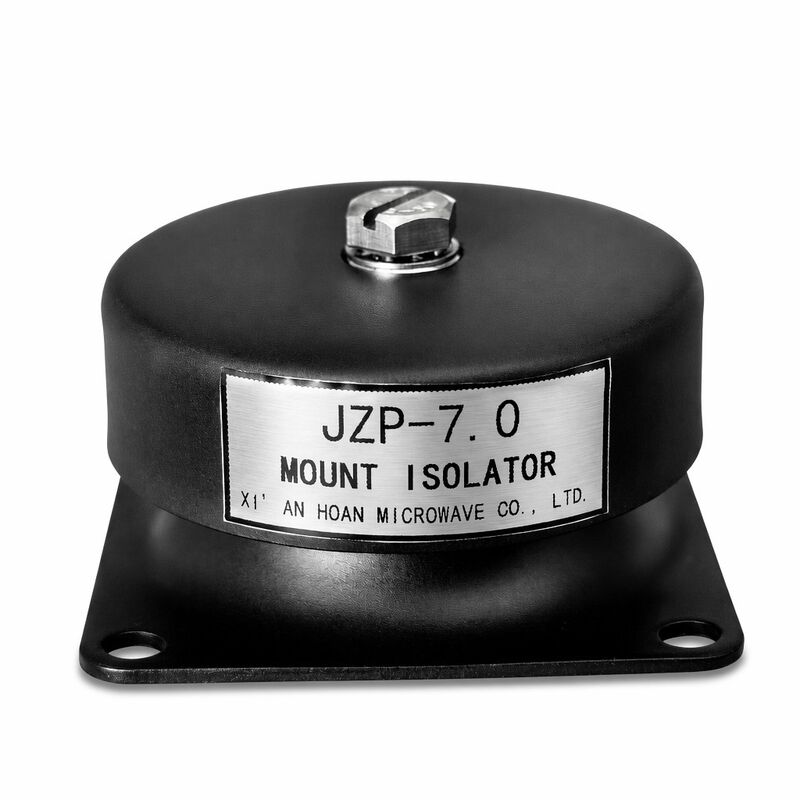

JZP-7.0 Rubber Shock Absorber 1000000+ Cycle Fatigue Tested Drop-In Retrofit Damper for Legacy Equipment

JZP-7.0 Endurance-Rated Rubber Shock Absorber — Built for Legacy Machine Retrofits

When a critical production machine is 15–25 years old and its original vibration mounts are no longer available, the maintenance team faces three unpalatable options: pay for custom fabrication with 8–12 week lead times, attempt to adapt a non-matching mount with uncertain performance, or accept degraded isolation and accelerated wear on adjacent components. The JZP-7.0 eliminates this dilemma. Validated through 1,000,000+ Cycle Fatigue Tested protocols and designed with a Drop-In Retrofit for Legacy Equipment footprint, it provides a shelf-ready replacement that matches the most common mounting interface geometries without machine modification.

Fatigue Validation — Beyond Type Approval

The JZP-7.0's million-cycle endurance rating is not a one-time qualification test on prototype samples. It is a production-lot verification: every compound batch undergoes fatigue coupon testing at 100% strain amplitude for 1,000,000 cycles at 2 Hz. The acceptance criteria are zero visible cracks under 10* magnification, ≤ 5% change in static deflection, and ≤ 3-point Shore A hardness deviation. This statistical process control approach means the fatigue rating published on the datasheet reflects ongoing production quality, not a best-case laboratory result from a single golden sample manufactured years ago.

Rubber-to-Metal Bond Integrity

The most common failure mode in stud-mount isolators is bond-line separation between the rubber body and the steel base plate or embedded stud. The JZP-7.0 uses a two-coat adhesive system: a primer coat of Chemlok 205 applied to grit-blasted steel surfaces (Sa 2.5 profile, 50–75 μm roughness), followed by a cover coat of Chemlok 220 applied within the primer's open time. This system is post-cured during vulcanization at 150°C, creating a chemical bond that exceeds the tear strength of the rubber itself. Destructive bond testing per ASTM D429 Method A is performed on sacrificial samples from each production batch; failure must occur within the rubber body—never at the adhesive interface—for the batch to be accepted.

Chemical & Environmental Resistance Profile

Acoustic Damping Contribution

Beyond structural vibration isolation, the JZP-7.0 contributes to workplace noise reduction through structure-borne sound attenuation. In a typical 4-point compressor mounting configuration, replacing rigid steel-to-concrete anchor bolts with JZP-7.0 mounts reduces structure-borne noise transmission by 8–12 dB(A) in the 100–500 Hz octave bands—the frequency range most associated with perceived machinery noise on production floors. This acoustic benefit is a secondary effect of the same damping mechanism that provides vibration isolation, requiring no additional acoustic treatment.

Retrofit Planning & Procurement

Comparative Isolation Performance

Warranty & Lifecycle Support

The JZP-7.0 carries a 24-month warranty against manufacturing defects and premature compression set exceeding 15% under rated load within normal operating conditions. For retrofit projects exceeding 50 units, a dedicated application engineer is assigned to review existing mount specifications, confirm dimensional compatibility, and provide installation sequencing recommendations. Maintenance stock holding recommendations are provided based on the customer's mean-time-between-replacement history, ensuring spares are available without excessive inventory carrying costs. A dimensional interchange guide covering the most commonly encountered legacy mount footprints is available to assist with initial compatibility screening before ordering.

Retrofit Application Examples

The JZP-7.0 has been successfully deployed in retrofits of: 1998–2008 Haas and DMG Mori CNC machining centers (M12 pedestal mounts); Carrier and Trane centrifugal chiller compressor bases (95 mm square footprint); Ingersoll Rand and Atlas Copco rotary screw compressor packages; Heidelberg and Komori printing press isolation frames; and Arburg and Engel injection molding machine mounts. In each case, the existing mount was removed, the mounting surface cleaned, and the JZP-7.0 installed in the same threaded interface within the machine base—zero drilling, zero frame modification, and verified post-installation vibration levels meeting or exceeding the original equipment specification.
