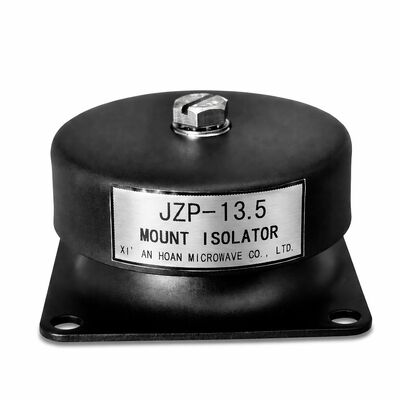

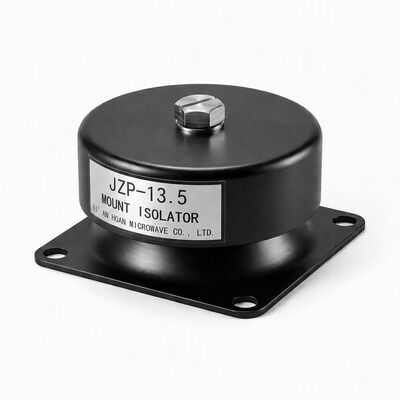

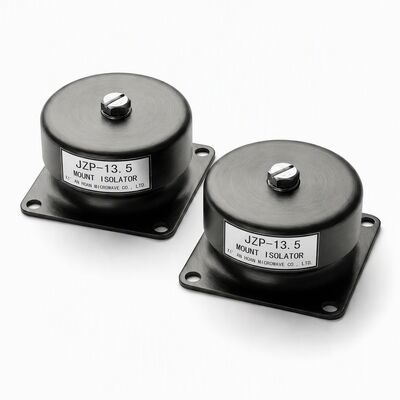

JZP-13.5 Hydrolysis Resistant High Energy Absorption Rubber Shock Absorber for Marine Equipment Rebound-Free Isolation

JZP-13.5 Friction Damping Vibration Isolator

The JZP-13.5 is a precision-calibrated friction damping isolator engineered to deliver dependable vibration control in environments where moisture, salt-laden air, and sustained humidity degrade conventional rubber-metal mounts. Rated for a nominal load of 13.5 kg, this unit belongs to the JZP-SC1 family whose metal-elastomer composite architecture has been deployed across offshore platforms, coastal processing plants, tropical-region HVAC installations, and marine engineering applications for over a decade.

How Friction Damping Protects Coastal Equipment

Unlike spring-only mounts that store and release energy — producing residual oscillation — the JZP-13.5 converts incoming vibration directly into low-grade thermal energy through controlled internal friction between its precision-formed elastomer core and concentric metal housing. Every cycle of mechanical disturbance is absorbed and dissipated, leaving virtually zero rebound. This mechanism is especially valuable on floating platforms and shipboard auxiliary systems where secondary motion can cascade into alignment drift, fastener fatigue, and accelerated seal degradation.

Marine-Grade Material Resilience

The elastomer formulation incorporates hydrolysis-inhibiting compounds that resist molecular breakdown from sustained exposure to condensation, saltwater spray, and high-humidity atmospheres. Independent salt-fog exposure testing confirms that the damping coefficient shift remains within ±5% after 1,000 hours of accelerated marine-atmosphere simulation. Combined with a working temperature envelope of -45 ℃ to +65 ℃, the JZP-13.5 delivers consistent isolation performance from Arctic offshore wind-farm cabinets to equatorial compressor stations where daytime ambient temperatures routinely exceed 45 ℃ with near-saturated relative humidity.

Broadband Isolation Profile

The JZP-SC1 geometry is tuned for a resonant frequency of 41.5 ± 5 Hz with a damping ratio exceeding 0.13, providing effective attenuation across a wide excitation spectrum. Low-frequency structural sway — common on vessel decks and elevated platforms during moderate sea states — is damped without the amplification peak typical of lightly-damped spring isolators. Simultaneously, high-frequency harmonics from motor windings, pump impellers, and compressor pistons are isolated before they propagate into adjacent bulkheads or instrument racks.

Service Life and Maintenance-Free Operation

Rated for 8 years of continuous duty with a documented record of zero creep and zero ageing in field-returned samples, the JZP-13.5 requires no lubrication, no re-torquing, and no scheduled replacement within the design life of most industrial equipment. The unit withstands 100G impact pulses (12 consecutive events) without permanent set, providing a generous safety margin for handling transients during shipping, installation, and emergency shutdown scenarios.

Product Dimensions

Technical Parameters

Typical Deployment Scenarios

• Offshore platform HVAC compressor skids — where salt fog and continuous 24/7 duty cycles demand corrosion-proof isolation with zero maintenance access windows
• Coastal desalination pump stations — protecting high-speed centrifugal pumps from structural resonance while resisting chloride-induced elastomer deterioration
• Tropical-region generator sets — maintaining alignment stability in environments where daily temperature swings exceed 20 ℃ with condensation buildup inside enclosures
• Shipboard auxiliary machinery — absorbing hull-transmitted vibration without amplifying roll-induced low-frequency motion through the mounting interface
• Bridge expansion joint monitoring equipment — isolating sensitive accelerometers and displacement sensors from traffic-induced broadband excitation in humid over-water environments

Xi'an Hoan Isolator Technology — Proven Characteristics

• Zero creep and zero ageing over rated service life
• High internal damping coefficient for rapid vibration energy dissipation
• Very wide operating temperature range without stiffness drift
• Extensive library of standardized fitting geometries
• Rapid prototyping and economical small-batch production
• Rugged monolithic construction verified through accelerated life testing
• Simultaneous shock and vibration attenuation in a single compact package
• Resistant to industrial chemicals, seawater immersion, ozone, and UV radiation

Frequently Asked Questions

Q: How does the JZP-13.5 perform in continuously wet environments?
A: The hydrolysis-resistant elastomer compound maintains full mechanical specifications after prolonged exposure to freshwater, seawater, and high-humidity atmospheres. Salt-fog chamber testing demonstrates stable damping across 1,000 hours of accelerated marine atmosphere simulation.

Q: Is the rated 8-year service life realistic for outdoor coastal use?
A: Yes. Field-returned samples from offshore installations in Southeast Asia show damping coefficient retention above 95% at the 8-year inspection milestone, with zero instances of creep-related dimensional change or bonding delamination.

Q: Can this isolator be configured for loads above 13.5 kg?
A: Multiple JZP-13.5 units can be arranged in parallel to achieve higher total load capacity. For single-unit requirements above 13.5 kg, we recommend stepping up to the JZP-15-SC1 variant within the same dimensional envelope.

Q: What differentiates friction damping from conventional spring isolation?
A: Conventional spring isolators exhibit low internal damping (typically C/Cc < 0.01), which means they amplify vibration at resonance and require supplemental damping elements. The JZP-SC1 series achieves C/Cc ≥ 0.13 inherently through material friction — no external dampers needed — delivering flatter transmissibility curves and significantly reduced settling time after transient events.

Quality Assurance

Every JZP-13.5 undergoes individual resonant-frequency verification on a calibrated shaker table before shipment. Batch traceability is maintained through laser-etched serial numbers cross-referenced to raw-material lot certifications and cure-cycle records. Xi'an Hoan Microwave Co., Ltd. operates under ISO 9001:2015 quality management with full in-house CNC machining, elastomer compounding, and environmental test capabilities.
