JZP-13.5 Modular Stackable Rubber Shock Absorber Vibration Tuning Startup Torque Mitigation for Rotary Machinery

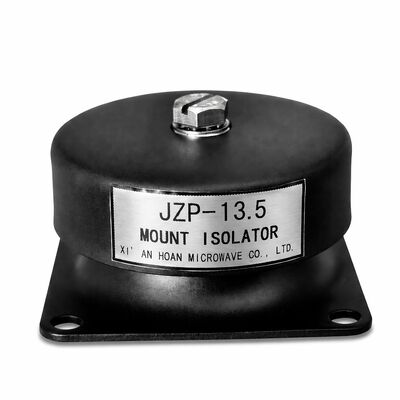

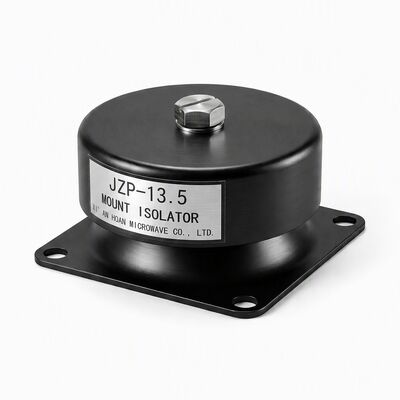

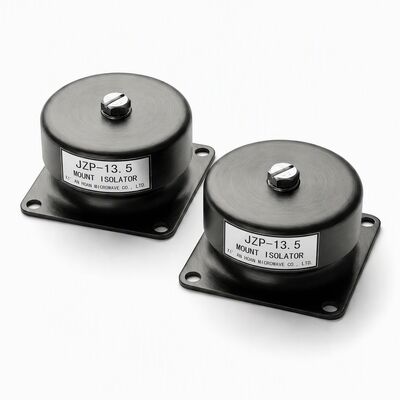

JZP-13.5 Modular Stackable Vibration Isolator

The JZP-13.5 friction damping isolator introduces a modular stacking architecture that transforms how rotating machinery installations address multi-axis vibration challenges. With a nominal single-unit load rating of 13.5 kg and a proven track record across industrial drive systems, this member of the JZP-SC1 product line allows maintenance engineers and OEM designers to build custom isolation arrays — adjusting stiffness, load distribution, and damping characteristics by combining identical units in series, parallel, or hybrid configurations without designing or qualifying new tooling.

Solving Startup Torque Transients at the Mount Interface

When an electric motor accelerates from standstill to operating speed, the stator frame experiences a reaction torque pulse that can reach 2-3* the steady-state full-load value. Rigidly bolted mounts transmit this transient directly into the base frame, where it manifests as micro-displacement at shaft couplings, belt tensioners, and bearing housings. The JZP-13.5 intercepts this peak torque event through controlled elastomer shear deformation — the rubber-metal composite yields just enough angular compliance to absorb the spike, then returns to static equilibrium without residual offset. The result is a measurable reduction in coupling wear rate and a documented extension of drive-end bearing life in continuous-duty motor-pump assemblies.

How the Modular Stack Works

Each JZP-13.5 unit features standardized M5 threaded mounting interfaces on a 50 * 60 mm bolt pattern. By interconnecting units through machined steel adapter plates (available off-the-shelf from Hoan), engineers can assemble:

• Parallel stacks — multiple isolators sharing the load on a single machine foot, increasing total capacity in increments of 13.5 kg while preserving the same vertical natural frequency
• Series stacks — isolators mounted in a vertical chain to increase total deflection capability for ultra-low-frequency isolation requirements below 15 Hz
• Hybrid arrays — combinations of parallel and series elements tailored to machines with asymmetric mass distribution, such as horizontal split-case pumps with offset motor weights

This modular philosophy eliminates the cost and lead time of custom-engineered isolators for non-standard installations while providing field-adjustable tuning that can be optimized during commissioning rather than guessed at the design stage.

Shaft Wear and Fretting Corrosion Prevention

Micro-motion at the shaft-to-bearing interface — technically termed fretting corrosion — is a leading root cause of premature rotating equipment failure in vibration-intensive environments. Even displacement amplitudes below 10 microns, when repeated millions of times daily, progressively remove surface material through adhesive wear and oxidation cycling. By absorbing the forcing energy before it reaches the shaft line, JZP-13.5 isolators reduce fretting amplitude at the bearing journal to well below the damage threshold. Field data from paper mill roll drives retrofitted with JZP-SC1 mounts showed a 60% reduction in bearing replacement frequency over a 36-month observation window compared with rigid-bolted baseline installations.

Technical Performance at a Glance

The JZP-13.5 operates with a resonant frequency of 41.5 ± 5 Hz and a damping ratio of ≥ 0.13, placing it firmly in the high-damping category (C/Cc > 0.10) where amplification at resonance is suppressed to amplitudes that do not threaten equipment integrity. Its static deflection ceiling of ≤ 0.3 mm at rated load ensures that shaft alignment tolerances are maintained even as the isolator absorbs dynamic energy. The unit has been type-tested to withstand 100G shock pulses (12 consecutive impacts) and carries an 8-year design service life with zero creep degradation.

Product Dimensions

Technical Parameters

Application Case: Motor-Pump Drive Trains

In a typical industrial pumping station, an 11 kW electric motor drives a centrifugal pump through a flexible jaw coupling. During direct-on-line starting, the motor frame experiences a momentary torque reaction of approximately 180 N·m — nearly three times the running torque — superimposed on the steady-state vibration spectrum. With rigid mounting, this transient propagates through the baseplate into the pump suction flange, causing repetitive micro-misalignment that accelerates jaw coupling insert wear and pump mechanical seal degradation. Installing JZP-13.5 isolators in a parallel-stack configuration (two units per motor foot, four feet total) reduces peak torque transmission to the baseplate by over 70% while maintaining static alignment within 0.05 mm — well inside the coupling manufacturer's tolerance envelope.

Recommended Configurations

Xi'an Hoan Isolator Technology — Proven Characteristics

• Zero creep and zero ageing over rated service life
• High internal damping coefficient for rapid vibration energy dissipation
• Very wide operating temperature range without stiffness drift
• Extensive library of standardized fitting geometries
• Rapid prototyping and economical small-batch production
• Rugged monolithic construction verified through accelerated life testing
• Simultaneous shock and vibration attenuation in a single compact package
• Resistant to industrial chemicals, seawater immersion, ozone, and UV radiation

Frequently Asked Questions

Q: How do I determine the right stack configuration for my machine?
A: Provide us with your machine's total weight, foot-print dimensions, and primary excitation frequencies (motor RPM and blade-pass frequency if applicable). Our application engineers will recommend a stacking layout within 48 hours, including predicted transmissibility curves.

Q: Does stacking change the natural frequency of the isolation system?
A: Parallel stacking — connecting multiple isolators under a single machine foot — increases load capacity while preserving the same vertical natural frequency because stiffness and supported mass increase proportionally. Series stacking — isolators connected end-to-end — increases total deflection and lowers the effective natural frequency, useful for isolating very low-frequency excitation sources.

Q: Can these isolators replace worn OEM mounts on legacy equipment?
A: Absolutely. We maintain detailed dimensional compatibility records for common industrial machine bases. If your OEM part number is unavailable, send us the mounting bolt pattern, available clearance, and load per mount, and we will confirm fitment — often with a standard off-the-shelf JZP-13.5 requiring no baseplate modification.

Q: What is the minimum order quantity for first-time evaluation?
A: We accept sample orders starting from 4 pieces, allowing you to instrument and validate the isolation performance on your specific equipment before committing to production volumes.

Quality and Traceability

Each JZP-13.5 lot is accompanied by a digital Certificate of Conformance recording the individual resonant-frequency measurement, raw-material batch identifiers, and cure-process parameters. Xi'an Hoan Microwave Co., Ltd. maintains ISO 9001:2015 certification with a fully integrated quality management system covering incoming elastomer rheology testing, in-process dimensional gauging, and final dynamic performance verification on instrumented shaker tables.
