Name: GR5-16A-A Steel Wire Rope Vibration Isolator for Low-Frequency Vibrations
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR5-16A-A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

GR5-16A-A Steel Wire Rope Vibration Isolator for Low-Frequency Vibrations

steel wire rope vibration isolator

low-frequency vibration isolator

GR5-16A-A wire rope isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

GR5-16A-A

Document:

GR series.pdf

Request A Quote

GR5-16A-A Steel Wire Rope Vibration Isolator for Low-Frequency Vibrations

Product Details

Features:

Anchoring Holes; Oil Resistant

Design Style:

Industrial

Working Temperature:

-55~120

Vibration Frequency:

10-100Hz

Structure:

Helical

Working Temperatu:

: -55 ~ +120

Vibration Frequency Range:

10Hz To 100Hz

Vibration Isolation:

Up To 90%

Shock Rsistance:

20g/11ms

Max Static Load:

20-47N(2kg-4.8Kg)

High:

76mm

Resonance Frequency:

15Hz

Installation Type:

Vertical

Highlight:

steel wire rope vibration isolator

low-frequency vibration isolator

GR5-16A-A wire rope isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

GR5-27A-A Steel Wire Rope Vibration Isolator for Aerospace and Military

Get Best Price

GR5-38A-A Steel Wire Rope Vibration Isolator 10-100Hz 53mm

Get Best Price

GR5-80A-A Steel Wire Rope Vibration Isolator 500 lbs Load Capacity

Get Best Price

GR4-6.7A-A Wire Rope Vibration Isolator for Energy & Mining

Get Best Price

86-29-88292913

Contact Now

Product Description

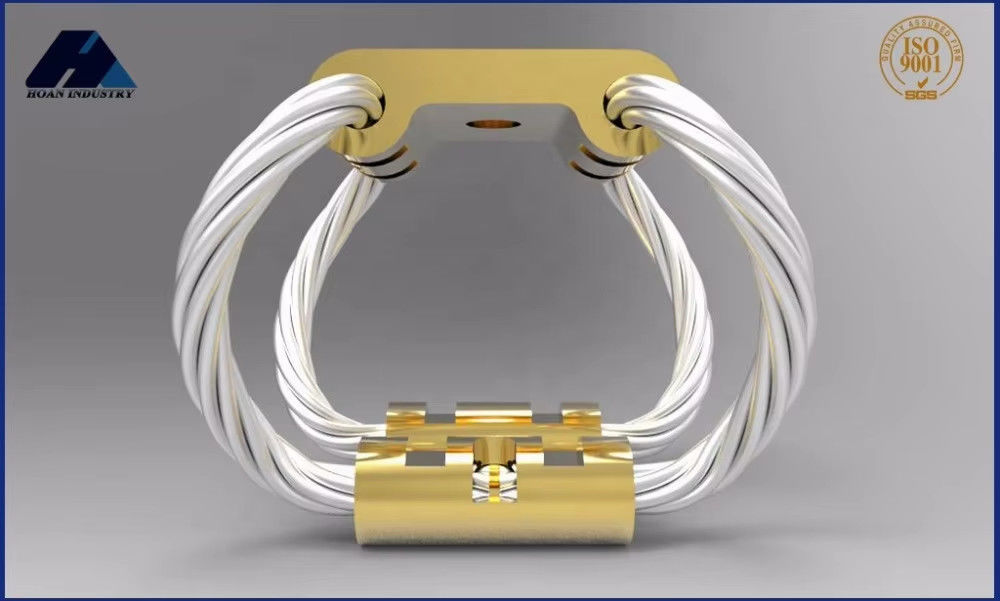

GR5-16A-A Steel Wire Rope Vibration Isolators

Adaptable to Low-Frequency Vibrations and Sudden Impacts

Features: Anchoring Holes; Oil Resistant

Design Style: Industrial

Working Temperature: -55°C to +120°C

Vibration Frequency Range: 10Hz to 100Hz

Vibration Isolation: Up to 90%

Shock Resistance: 20g/11ms

Max Static Load: 20-47N (2kg-4.8Kg)

Height: 76mm

Resonance Frequency: 15Hz

Installation Type: Vertical

GR Series Steel Wire Rope Vibration Isolators

The GR series steel wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd. provide exceptional vibration isolation for precision equipment across multiple industries. The unique helical steel wire rope structure between metal plates delivers outstanding performance.

These isolators effectively handle both continuous low-frequency vibrations and sudden strong impacts. In photographic equipment, they eliminate vibrations during mobile photography to maintain image clarity. For industrial precision processing equipment, they reduce vibrations to improve accuracy and lower defect rates.

The GR series offers flexible installation options including wall-hanging and flat-mounting configurations, allowing quick adaptation to various equipment requirements and space constraints.

Dimension Parameters

Model	Height±1.5 (mm)	Width (mm)	Weight (kg)	Mounting Options	Thru Hole(mm)	Thread (mm)	C'sink(°)
GR5-80A-A	41	48	0.72	A,B,C,D,E,S	∅7	M6*1.0	90
GR5-38A-A	53	54	0.77
GR5-27A-A	60	59	0.81
GR5-16A-A	76	67	0.9

Static-Load Curve

Material Options

Mounting splint material: Stainless Steel or Aluminum

Surface Treatment Options for Aluminum Alloy Mounting Cleats

White Anodizing: Standard surface treatment that hardens the aluminum while maintaining its natural color
Hard Anodizing: Creates a much harder surface than white anodizing, resulting in a darker finish. Recommended for complex or demanding working conditions

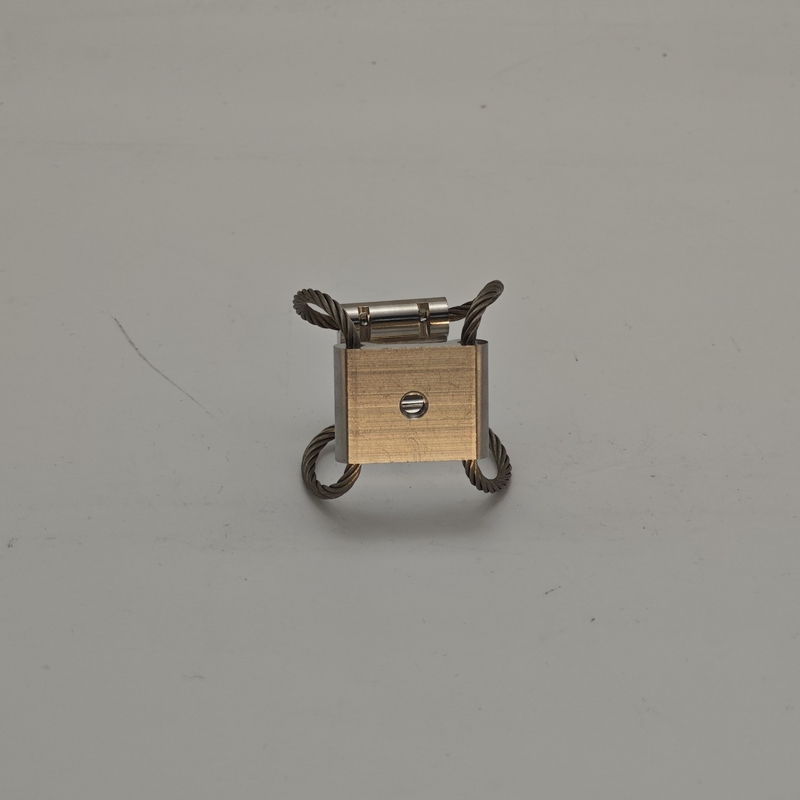

Customer Photos
