GR5-16A-A Steel Wire Rope Vibration Isolator for Low-Frequency Vibrations

Name: GR5-16A-A Steel Wire Rope Vibration Isolator for Low-Frequency Vibrations
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR5-16A-A
Availability: InStock

Brand Name:	Hoan
Model Number:	GR5-16A-A
MOQ:	4
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

GR series.pdf

Features:

Anchoring Holes; Oil Resistant

Design Style:

Industrial

Working Temperature:

-55~120

Vibration Frequency:

10-100Hz

Structure:

Helical

Working Temperatu:

: -55 ~ +120

Vibration Frequency Range:

10Hz To 100Hz

Vibration Isolation:

Up To 90%

Shock Rsistance:

20g/11ms

Max Static Load:

20-47N(2kg-4.8Kg)

High:

76mm

Resonance Frequency:

15Hz

Installation Type:

Vertical

Highlight:

Low Frequency Wire Rope Vibration Isolator

Steel Wire Rope Vibration Isolator

Product Description

GR5-16A-A Steel Wire Rope Vibration Isolators

Adaptable to Low-Frequency Vibrations and Sudden Impacts

Features: Anchoring Holes; Oil Resistant

Design Style: Industrial

Working Temperature: -55°C to +120°C

Vibration Frequency Range: 10Hz to 100Hz

Vibration Isolation: Up to 90%

Shock Resistance: 20g/11ms

Max Static Load: 20-47N (2kg-4.8Kg)

Height: 76mm

Resonance Frequency: 15Hz

Installation Type: Vertical

GR Series Steel Wire Rope Vibration Isolators

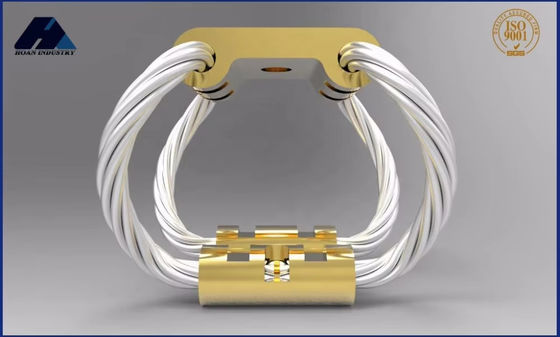

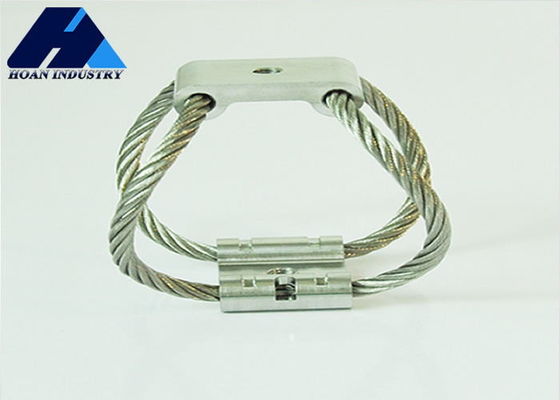

The GR series steel wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd. provide exceptional vibration isolation for precision equipment across multiple industries. The unique helical steel wire rope structure between metal plates delivers outstanding performance.

These isolators effectively handle both continuous low-frequency vibrations and sudden strong impacts. In photographic equipment, they eliminate vibrations during mobile photography to maintain image clarity. For industrial precision processing equipment, they reduce vibrations to improve accuracy and lower defect rates.

The GR series offers flexible installation options including wall-hanging and flat-mounting configurations, allowing quick adaptation to various equipment requirements and space constraints.

Dimension Parameters

Model	Height±1.5 (mm)	Width (mm)	Weight (kg)	Mounting Options	Thru Hole(mm)	Thread (mm)	C'sink(°)
GR5-80A-A	41	48	0.72	A,B,C,D,E,S	∅7	M6*1.0	90
GR5-38A-A	53	54	0.77
GR5-27A-A	60	59	0.81
GR5-16A-A	76	67	0.9

Static-Load Curve

Material Options

Mounting splint material: Stainless Steel or Aluminum

Surface Treatment Options for Aluminum Alloy Mounting Cleats

White Anodizing: Standard surface treatment that hardens the aluminum while maintaining its natural color
Hard Anodizing: Creates a much harder surface than white anodizing, resulting in a darker finish. Recommended for complex or demanding working conditions
