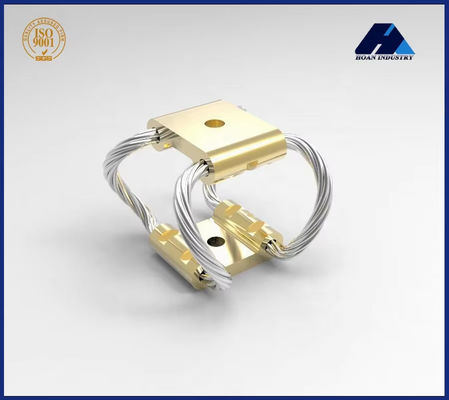

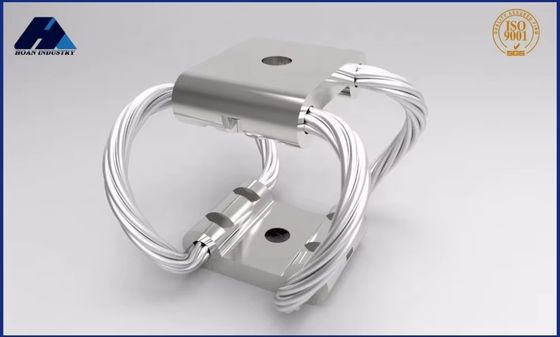

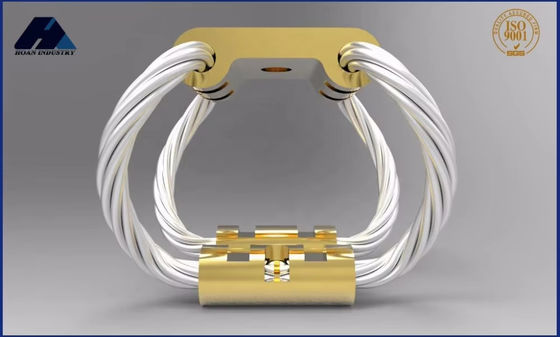

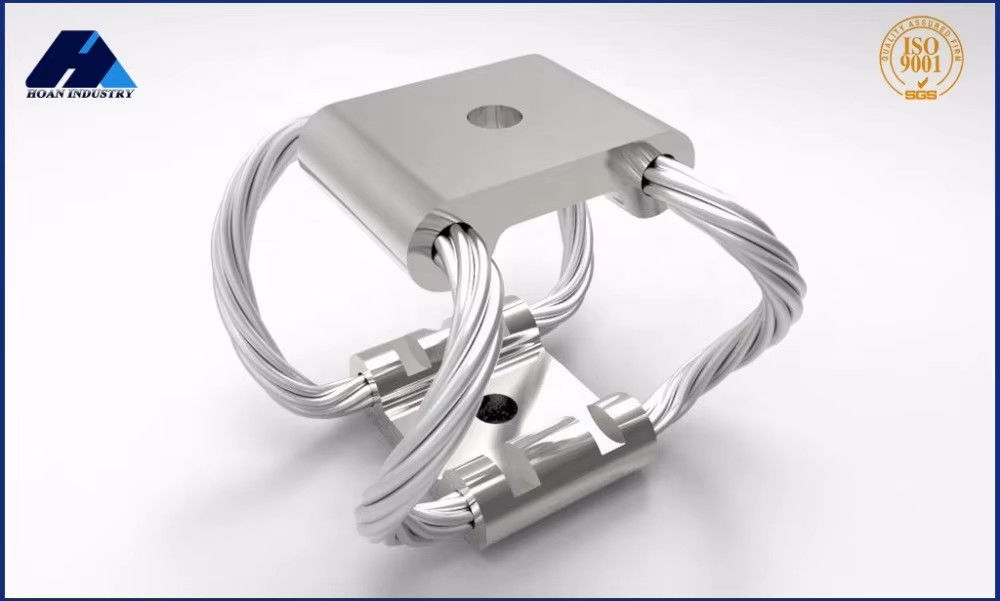

Name: GR5-38D-A Wire Rope Vibration Isolator for Drones 3.5-2000KG Load
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR5-38D-A
Availability: InStock

Home > products > Camera Vibration Isolator >

GR5-38D-A Wire Rope Vibration Isolator for Drones 3.5-2000KG Load

Drones Wire Rope Vibration Isolator

Harsh Conditions Wire Rope Vibration Isolator

Durable Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR5-38D-A

Request A Quote

Product Details

Usage:

Air Conditioning Terminal

After Warranty Service:

Online Support

Load Range:

3.5-2000KG

Mounting Hole Size:

8mm

Certifications:

ISO 9001

Characteristic:

Wide Working Frequency, Long Li

Vibration Frequency Range:

10Hz To 100Hz

Noise Reduction:

Yes

Vibration Isolation Frequency:

5-50Hz

Installation:

Wall Mounted

Design Style:

Industrial

Corrosion Resistance:

Yes

Damping Ratio:

0.5

Construction:

Braided Wire Rope

Working Temperature:

-40℃ To 80℃

Highlight:

Drones Wire Rope Vibration Isolator

Harsh Conditions Wire Rope Vibration Isolator

Durable Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

4，pience，7

GR1-3.3D-A Wire Rope Vibration Isolator Industrial Design for Dampening Unexpected Vibrations Load Range 3.5-2000KG

Get Best Price

GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support

Get Best Price

Upgrade Your Photography and Videography with GR5-27D-A Wire Rope Vibration Isolator

Get Best Price

Experience Smooth Signal Transmission with GR4-13D-A Wire Rope Vibration Isolator

Get Best Price

86-29-88292913

Contact Now

Product Description

Durable and Resistant to Harsh Conditions GR Type Wire Rope Vibration Isolator for Drones GR5-38D-A

Product Attributes

Usage	Air Conditioning Terminal
After Warranty Service	Online support
Load Range	3.5-2000KG
Mounting Hole Size	8mm
Certifications	ISO 9001
Characteristic	Wide working frequency, long lifespan
Vibration Frequency Range	10Hz to 100Hz
Noise Reduction	Yes
Vibration Isolation Frequency	5-50Hz
Installation	Wall Mounted
Design Style	Industrial
Corrosion Resistance	Yes
Damping Ratio	0.5
Construction	Braided Wire Rope
Working Temperature	-40℃ to 80℃

Product Description

GR5 Series
Xi'an Hoan's GR Type Wire Rope Vibration Isolator is a stabilized device specially designed for drones, which provides a stable shooting platform through precision wire rope design and advanced damping technology. This isolator reduces vibrations generated during flight, improving aerial image quality by reducing blur and increasing pilot productivity.

The GR type wire rope vibration isolator excels in stability, effectively absorbing and reducing vibrations in complex airflow environments or high-speed flight conditions. This ensures drone camera stability for superior image quality.

Manufactured with high-quality stainless steel and high-grade synthetics, these isolators offer exceptional durability and resistance to harsh climatic conditions and prolonged use.

Xi'an Hoan's GR type wire rope isolator has proven superior in stabilizing drone images. As technology advances and applications expand, these vibration isolators will play an increasingly important role in the UAV market.

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR5-80D-A	80	19.6	22	11
2	GR5-38D-A	38	28.7	11	4.4
3	GR5-27D-A	27	34.8	7.9	3.2
4	GR5-16D-A	16	49.3	4.4	1.4

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR5-80D-A	24	18.3	12	6.1
2	GR5-38D-A	13	28.4	5.3	2.3
3	GR5-27D-A	11	36.1	3.6	1.4
4	GR5-16D-A	6.7	53.8	1.9	0.7

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR5-80D-A	20	16.5	4.4	4.4
2	GR5-38D-A	13	25.7	2.1	2.1
3	GR5-27D-A	11	32.5	1.4	1.4
4	GR5-16D-A	6.7	48.5	0.7	0.7

Unique Characteristics of Xi'an Hoan's Vibration Isolators

No creep or ageing
High internal damping
Very wide temperature range
Wide variety of possible fittings
Rapid and economical prototyping
Extremely rugged construction and long lifespan
Excellent combined shock and vibration isolation
Not affected by chemical agents, seawater, ozone, UV rays
