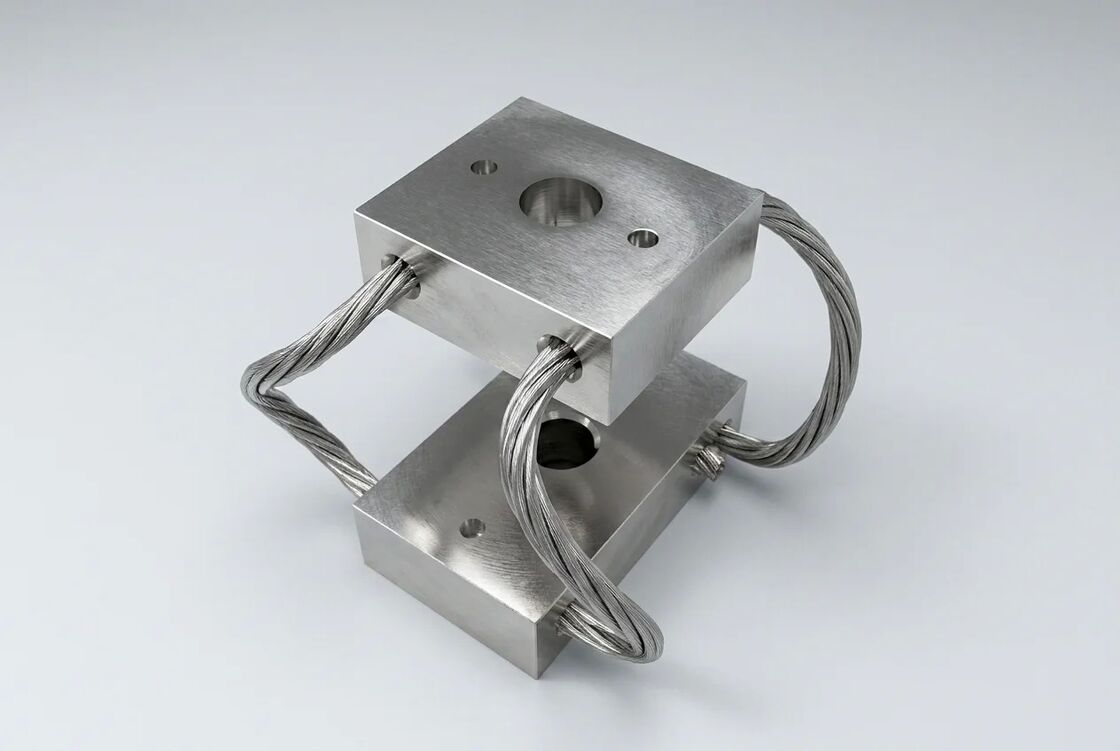

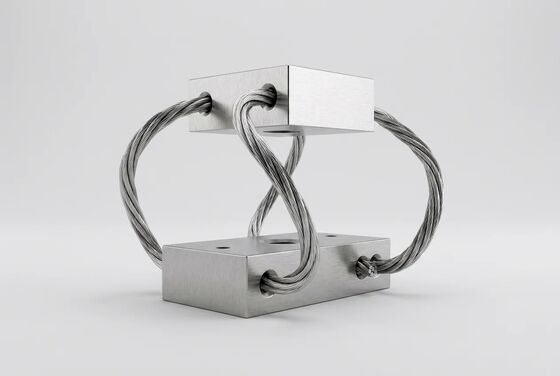

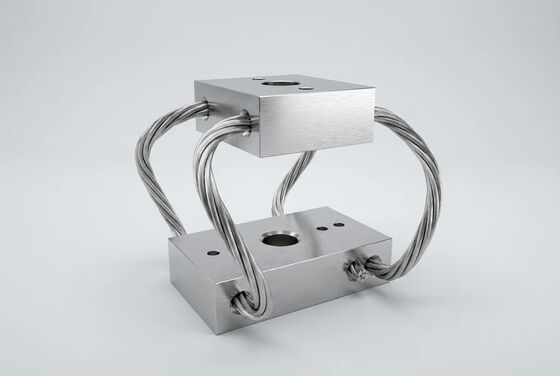

Superior Isolation for Heavy-Duty Precision Payloads

The GR3 Series Compact Wire Rope Vibration Isolator is engineered for high-performance stabilization ofmedium-to-heavy precision equipment. Featuring a reinforced 2.Omm stainless steel wire rope andaerospace-grade 6061-T6 aluminum bars, the GR3 series bridges the gap between lightweight drone
dampers and heavy industrial shock mounts.
Designed to handle static loads from 1.1kg to 3.5kg (1N - 35N), it provides exceptional multi-axis vibrationattenuation for demanding environments where reliability and structural integrity are non-negotiable-fromhigh-speed UAV cinematic captures to rugged shipborne communication systems.

1. Engineering Highlights & Benefits

Reinforced 2.Omm Cable Architecture: Increased wire diameter provides the necessary spring rate andstructural damping for heavier cinema rigs (Arri Alexa/RED) and industrial modules.
Aerospace -Grade Durability: Constructed with SUS304 stainless steel and 6061-T6 aluminum with ahard-coat anodized finish, ensuring zero corrosion in salt spray or humid maritime environments.
3-Axis Omnidirectional Isolation: Effectively mitigates high-frequency vibrations and low-frequencyshocks in compression, tension, shear, and roll, protecting sensitive sensors and optical components.
Dry Friction Damping: Leverages inter-strand friction for high energy dissipation without the leaking oraging risks associated with hydraulic or rubber-only dampers.
Wide Temperature Resilience: Operates flawlessly from -100°C to +300°C, making it the ideal choicefor high-altitude flight or engine-compartment proximity.

2. Technical Specifications (GR3 Series)

Note: Custom mounting patterns and wire rope loop configurations are available upon request.

3. High-Impact Applications

The GR3 series is the industry standard for stabilizing "Heavy-Lift" payloads where GR1/GR2 capacity ends

 Cinema-Grade UAV Gimbals: Specifically optimized for DJI Matrice 600, Freefly Alta, and customoctocopters carrying Arri Alexa Mini or RED V-Raptor.
Maritime & Shipborne Systems: Shock protection for shipborne radar antennas, communication racks,and navigation electronics against sea-state shocks.
Vehicle -Mounted Camera Rigs: Heavy-duty car mounts and pursuit vehicles requiring stabilization forhigh-speed tracking shots on uneven terrain.

Aerospace: Isolation for ruggedized servers, airborne computers, and laser rangefindermodules.

4. Why Choose Xi'an Hoan GR3?

Unlike generic dampers, the Xi'an Hoan GR3 series undergoes rigorous testing to meet MIL-STD-810standards. The combination of its compact form factor and high load density makes it the go-to solutionfor engineers who cannot compromise on space or performance.

[Contact our engineering team for a CAD model or custom damping analysis]
