Cinema Vibration Isolator Wire Rope Anti Vibration Mounts
Product Details:
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $13.00/pieces 4-99 pieces
Packaging Details: Standard export packing or as per customers' requirements.
Contact Now
Detailed Product Description
Type: SHOCK ABSORBER Material: Stainless Steel Or Aluminium, Stainless Steel Or Aluminium
Applicable Industries: Energy & Mining Model: GR1-3.3D-A
Application: Helicopter, Drone, Camera, Cinema
Highlight:

Cinema Vibration Isolator

,

wire rope anti vibration mounts

,

vibration isolator mounts

Helicopter Stabilizer Cinema UAV Camera Drone Accessories Vibration Shock Control GR1-3.3D-A Cinema Vibration Isolator

Product Description

By building your own Camera Cinema Gimbal Drone or using for your helicopter drone cameras, the GR Series cinema vibration isolators is your best choice!



The GR1-3.3D-A cinema vibration isolator is one type camera vibration isolators from the GR1 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

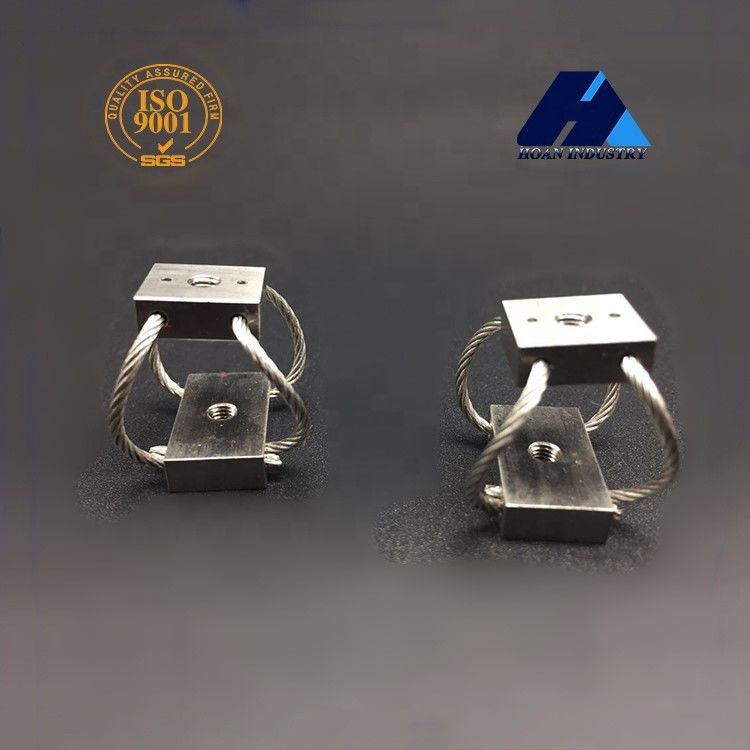

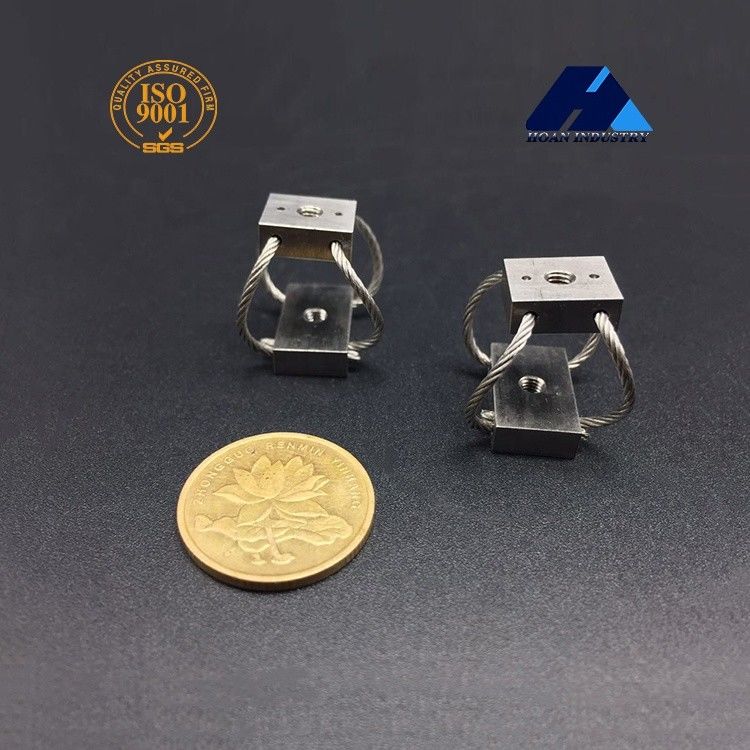

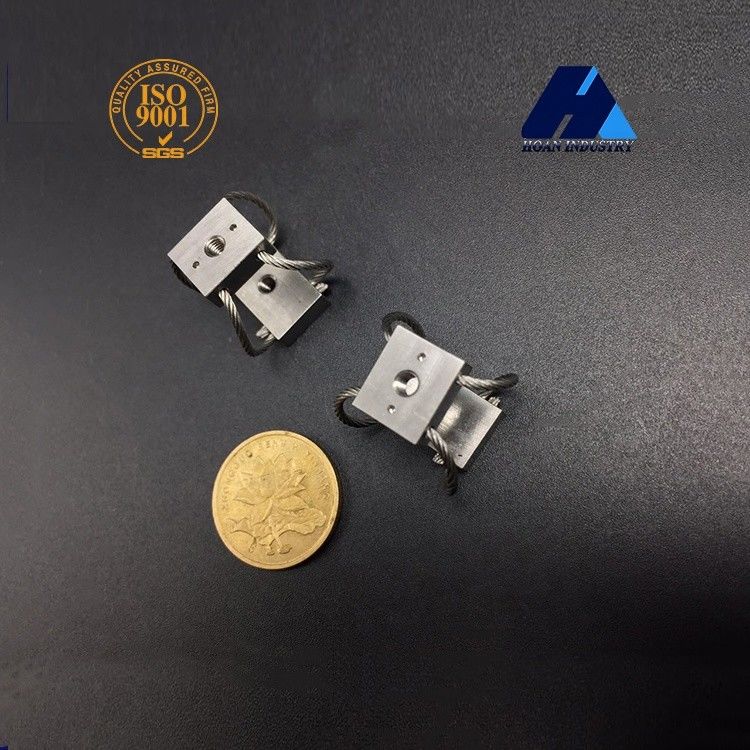

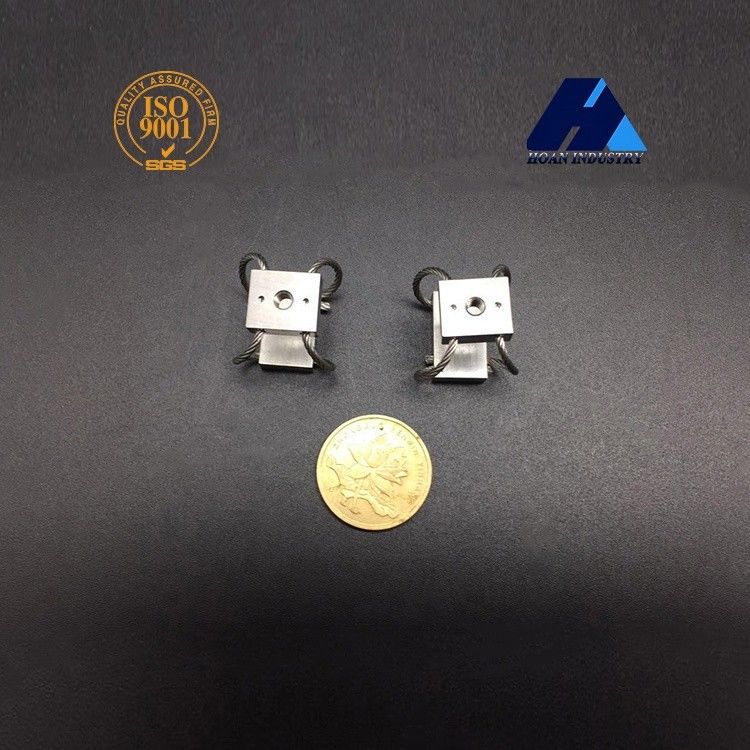

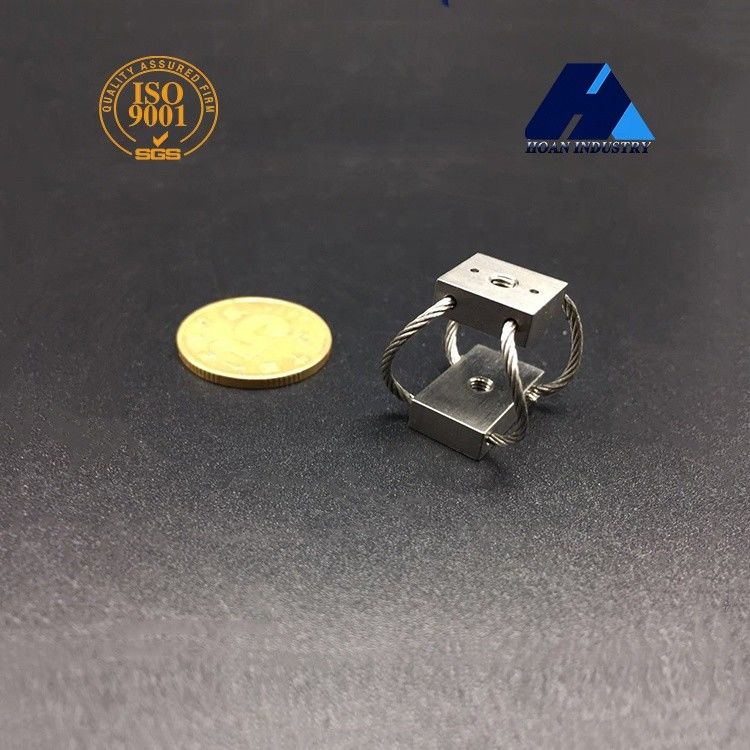

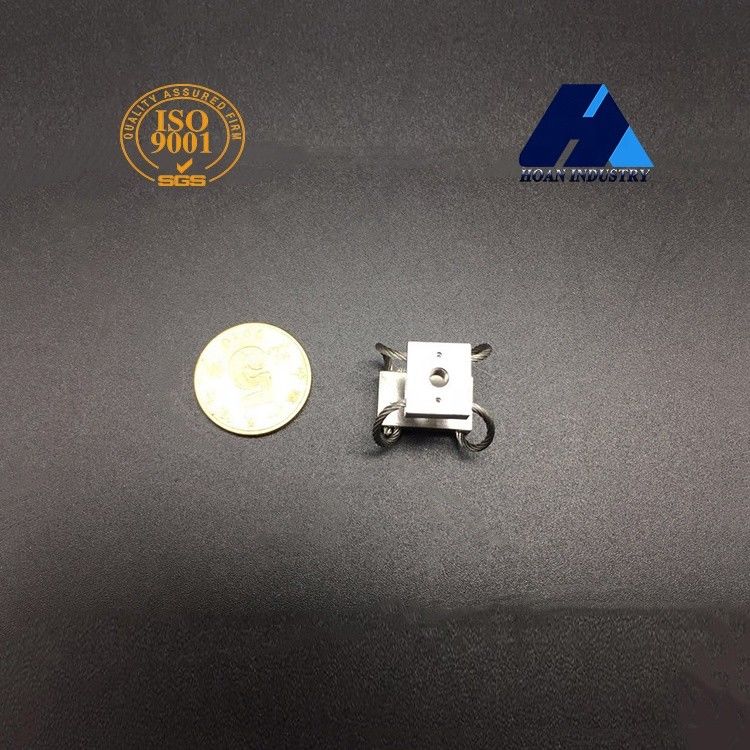

The GR1-3.3D-A helicopter drone cinema vibration isolator is made by the 1.2mm diameter stainless steel wire rope winded in the two mounting bars, with maximum static load 3.3N (0.34kg).



The GR1-3.3D-A camera vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce. With stainless steel material, the GR1-3.3D-A model has perfect performance of water-proof, anticorrosion as well as durability.



Nowadays, the GR series isolators are used widely in the field of aerial drone systems, helicopter drone gimbal, video project, drone shooting, UAV camera and camera stabilizer, etc.

Technical Parameter
  • Model Number Code Ordering of GR1-3.3D-A:Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 0
  • Structural Diagram of GR1-3.3D-A:Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 1
  • Dimension of GR1-3.3D-A:Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 2
  • Mounting Options of GR1-3.3D-A:Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 3
  • Compression of GR1-3.3D-A:Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 4
  • 45° Compression of GR1-3.3D-A:Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 5
  • Shear/Roll of GR1-3.3D-A:Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 7



Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 8



Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 9



Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 10



Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 11



Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 12



Cinema Vibration Isolator Wire Rope Anti Vibration Mounts 13
