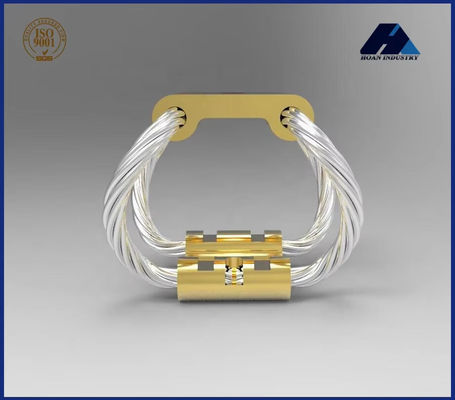

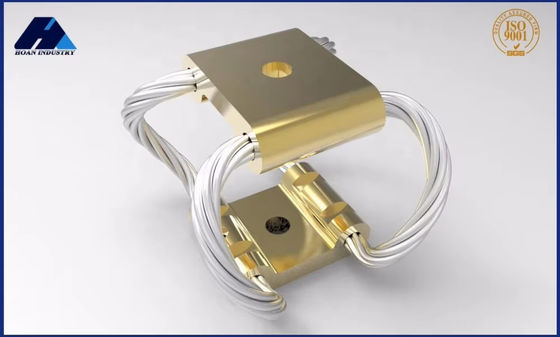

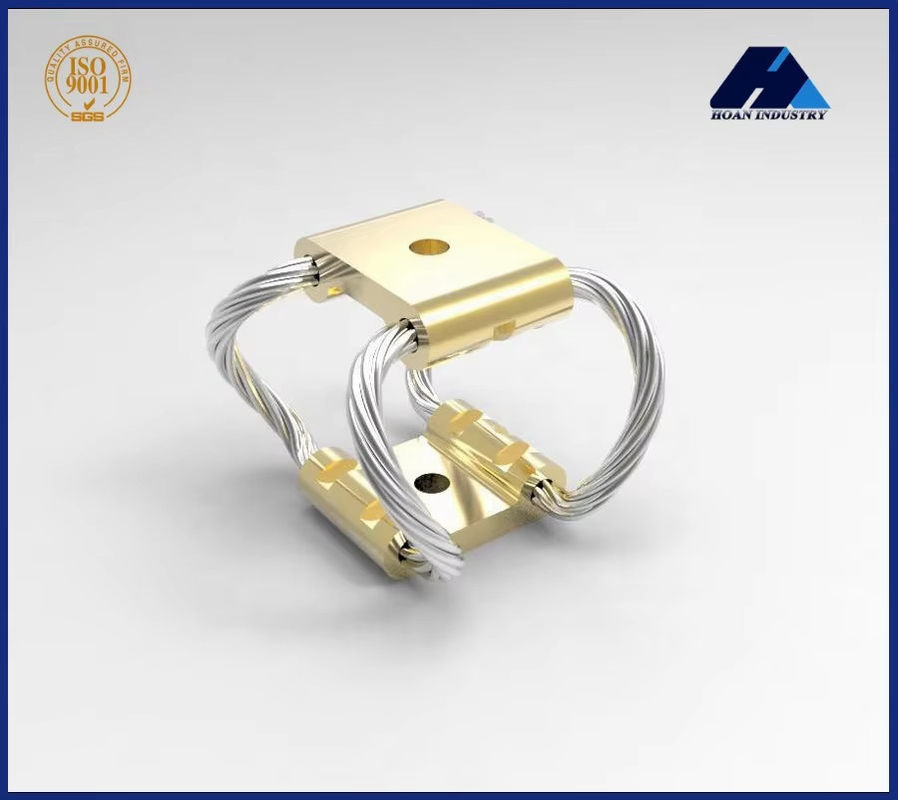

Name: GR6-67D-A Wire Rope Vibration Isolator 20-47N Load 90% Isolation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR6-67D-A
Availability: InStock

Home > products > Camera Vibration Isolator >

GR6-67D-A Wire Rope Vibration Isolator 20-47N Load 90% Isolation

GR6-67D-A Wire Rope Vibration Isolator

Superior Stability Wire Rope Vibration Isolator

Easy Install Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR6-67D-A

Request A Quote

Product Details

Shock And Vibration Resistance:

Excellent

Max Static Load:

20-47N(2kg-4.8Kg)

Vibration Isolation:

Up To 90%

Isolation Frequency:

10Hz

Natural Frequency:

7Hz-15Hz

Mounting Orientation:

Vertical

Axial Stiffness:

50N/mm

Isolation Efficiency:

90%

Installation:

Wall Mounted

Vibration Isolation Type:

Passive

Vibration Frequency Range:

10Hz To 100Hz

Mounting Type:

Threaded Stud

Shock Rsistance:

40g/11ms

Shock Resistance:

30g/11ms

Highlight:

GR6-67D-A Wire Rope Vibration Isolator

Superior Stability Wire Rope Vibration Isolator

Easy Install Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

4，pience，7

GR1-3.3D-A Wire Rope Vibration Isolator Industrial Design for Dampening Unexpected Vibrations Load Range 3.5-2000KG

Get Best Price

GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support

Get Best Price

Upgrade Your Photography and Videography with GR5-27D-A Wire Rope Vibration Isolator

Get Best Price

Experience Smooth Signal Transmission with GR4-13D-A Wire Rope Vibration Isolator

Get Best Price

86-29-88292913

Contact Now

Product Description

Superior Stability and Durability with GR6-67D-A Wire Rope Vibration Isolator

Key Features

Easy to install with no specialized tools required
Stainless steel construction for durability in all climates
Modular design for easy maintenance and component replacement
Excellent shock and vibration resistance
Up to 90% vibration isolation efficiency

Technical Specifications

Attribute	Value
Shock And Vibration Resistance	Excellent
Max Static Load	20-47N (2kg-4.8Kg)
Vibration Isolation	Up to 90%
Isolation Frequency	10Hz
Natural Frequency	7Hz-15Hz
Mounting Orientation	Vertical
Axial Stiffness	50N/mm
Installation	Wall Mounted
Vibration Isolation Type	Passive
Vibration Frequency Range	10Hz to 100Hz
Mounting Type	Threaded Stud
Shock Resistance	30g/11ms - 40g/11ms

Product Description

GR6 Series isolators effectively eliminate both small rhythmic vibrations during travel shots and sudden, intense vibrations from rough terrain. This stability is essential for photographers requiring high clarity and smooth images.

The stainless steel construction ensures durability in all climatic conditions, resisting rust in humid environments and maintaining performance through extreme temperature changes.

Designed for user convenience, GR Series Isolators feature quick installation without specialized tools and a modular design for easy maintenance and component replacement.

Xi'an Hoan's GR Series Wire Rope Isolators are the preferred choice for professional photographers and videographers across various shooting environments, offering superior stability, durability, and adaptability.

GR6 Series Performance Data (Vertical)

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR6-142D-A	142	22.1	32	16
2	GR6-93D-A	93	29.5	20	9.6
3	GR6-67D-A	67	37.6	15	5.3
4	GR6-36D-A	36	51.6	7.9	2.6

GR6 Series Performance Data (Horizontal)

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR6-142D-A	40	22.9	16	7.9
2	GR6-93D-A	33	30.5	9.6	5.3
3	GR6-67D-A	22	38.1	7.9	2.8
4	GR6-36D-A	13	53.3	3.5	1.2

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer, producing our products in our own facilities to ensure quality control and offer competitive pricing with customized solutions.

Q: Can you customize products for us?

A: Yes, we can customize products to meet your specific requirements. Contact us with your needs for a tailored solution.

Q: What is the lead time?

A: Samples typically take 2-5 days. Mass production takes 7-20 days, with faster delivery when stock is available.

Q: Can I get samples before placing an order?

A: Yes, sample orders are accepted.

Q: How is your shipping?

A: Worldwide shipping is available. Please contact us before ordering as shipping costs vary.

Q: Do you offer discounts for bulk orders?

A: Yes, we offer quantity discounts based on order volume.
