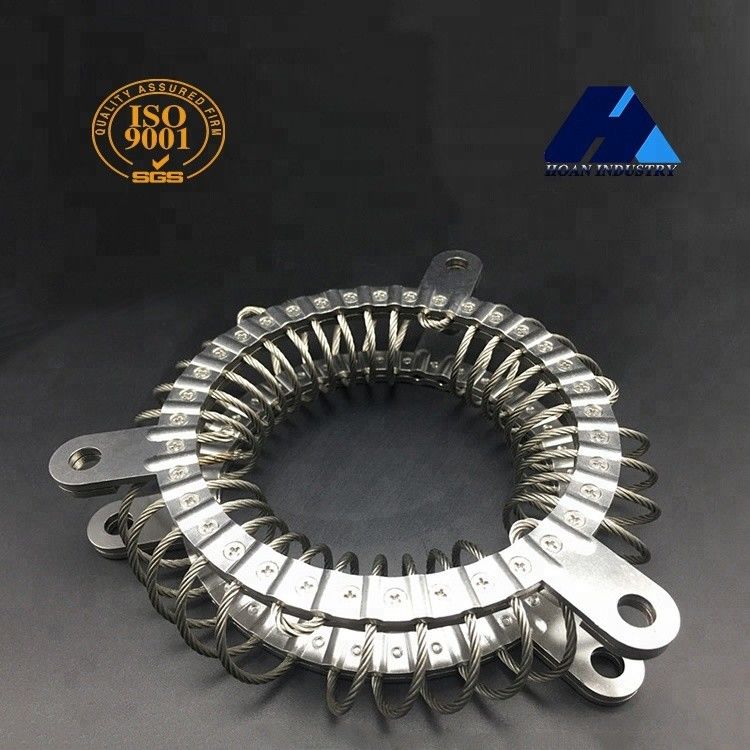

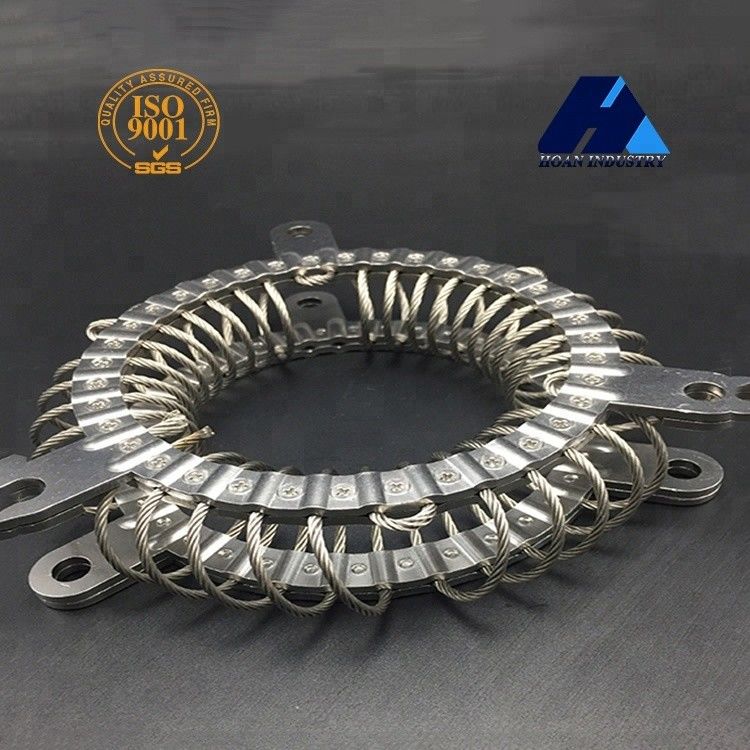

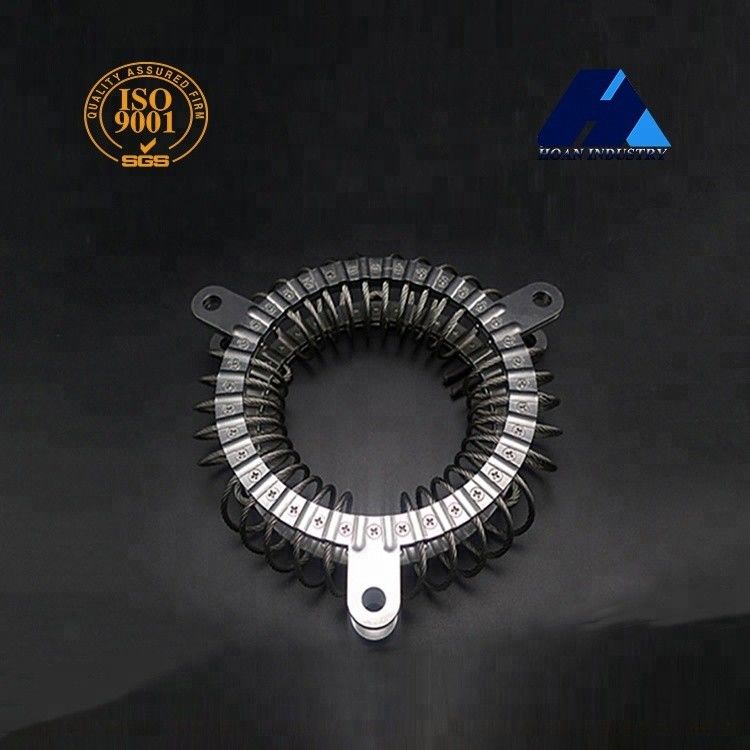

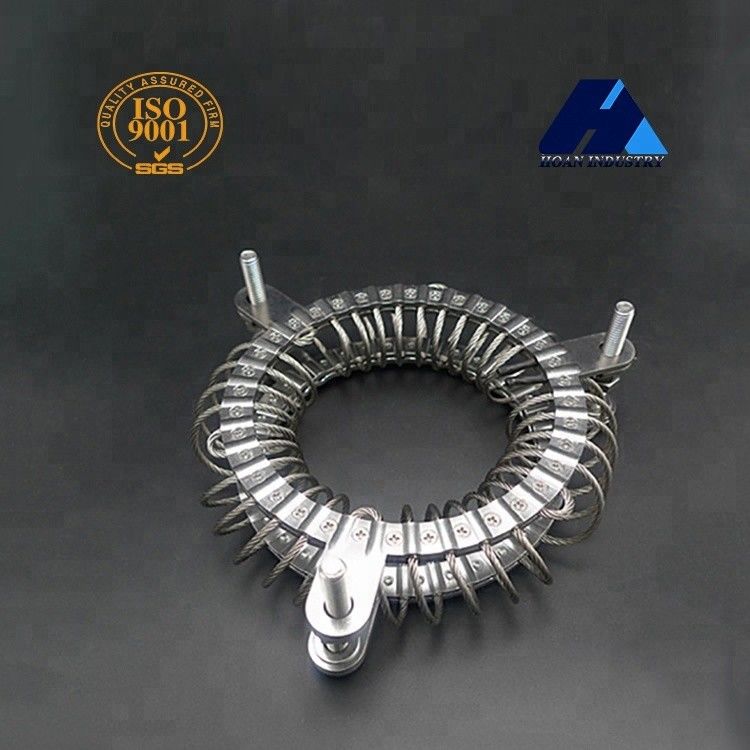

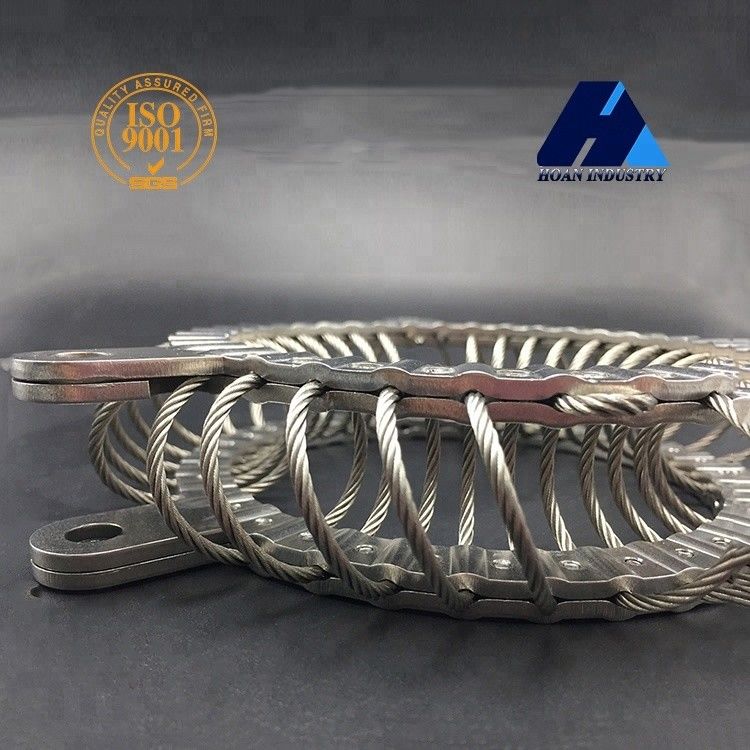

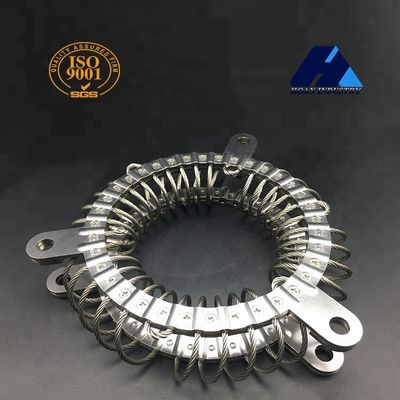

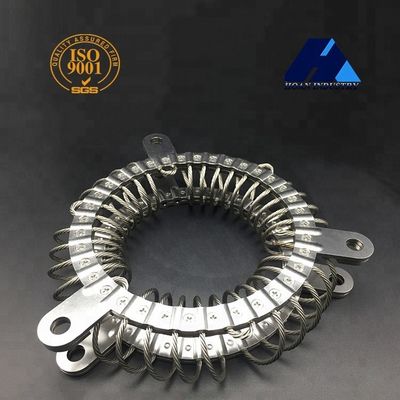

Camera Vibration Isolation Mount Engine Shock Protection
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Certification: ISO9001:2015
Model Number: GRY-100A
Payment & Shipping Terms:
Price: $175.00/pieces 1-99 pieces
Contact Now
Detailed Product Description
Material: Stainless Steel Or Aluminum Application: Marine, Shipborne, Engine
Highlight:

camera vibration isolation mount

,

camera vibration mount

,

camera vibration isolator

Smart Handmade Machine Tool Accessories Marine Shipborne Engine Shock Protection GRY-100A Wire Rope Isolator

Product Description



Wire rope isolators are comprised of stainless steel stranded cable threaded through alloy or stainless steel retaining bars that are mounted for effective shock and vibration isolation.



With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.



The maximum static load of GRY-100A is 100N (10.20 kg), which is handmade and indeed exquisite. For the special structure of the GRY-100A, this type wire rope isolator is more special and indeed unique.



The GRY-100A wire rope isolator is not the common isolators, but can be used in many needed fields. This model can be used in the field of astronavigation, helicopters, motors, defense systems, missiles, satellites, shipping, ocean and offshore platforms, high buildings, industrial systems and equipments as well as the various motive power machines for the professional vibration isolation.



The multi-functional GRY-100A wire rope isolator can provide better cost-effective, simultaneous shock and vibration attenuation than any other isolators in the market. The GRY-100A type wire rope isolator is more smarter and smaller than any other isolators, which will bring you into another news idea of the field of vibration isolation than ever.

Technical Parameter
  • Model Number Code Ordering of GRY-100A:Camera Vibration Isolation Mount Engine Shock Protection 0
  • Structural Diagram of GRY-100A:Camera Vibration Isolation Mount Engine Shock Protection 1
  • Dimension of GRY-100A:Camera Vibration Isolation Mount Engine Shock Protection 2
  • Technical Parameter of GRY-100A:Camera Vibration Isolation Mount Engine Shock Protection 3
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Main Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Camera Vibration Isolation Mount Engine Shock Protection 4



Camera Vibration Isolation Mount Engine Shock Protection 5



Camera Vibration Isolation Mount Engine Shock Protection 6



Camera Vibration Isolation Mount Engine Shock Protection 7



Camera Vibration Isolation Mount Engine Shock Protection 8



Camera Vibration Isolation Mount Engine Shock Protection 9
