Product Details:
Place of Origin: Shaanxi, China
Model Number: GH Series
Payment & Shipping Terms:
Price: $25.00 - $30.00/pieces
Packaging Details: Standard export packing or as per customers' requirements.
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Warranty: 1 Year After-sale Service: Online Technical Support
Project Solution Capability: 3D Model Design Application: Apartment, Office Building, Supermarket, Helicopter, Cabinet, Transportation
Design Style: Industrial Material: Stainless Steel Or Aluminum
Certificate: ISO9001:2015 Port: Xi'an Or Specified
Highlight:

cable mounts

,

Cable Wire Rope Shock Mounts

,

Wire Rope Shock Mounts 30G

Machine Vibration Shock Control 30G Helicopter Cabinet Transportation Use GH Series Wire Rope Isolator

Product Description

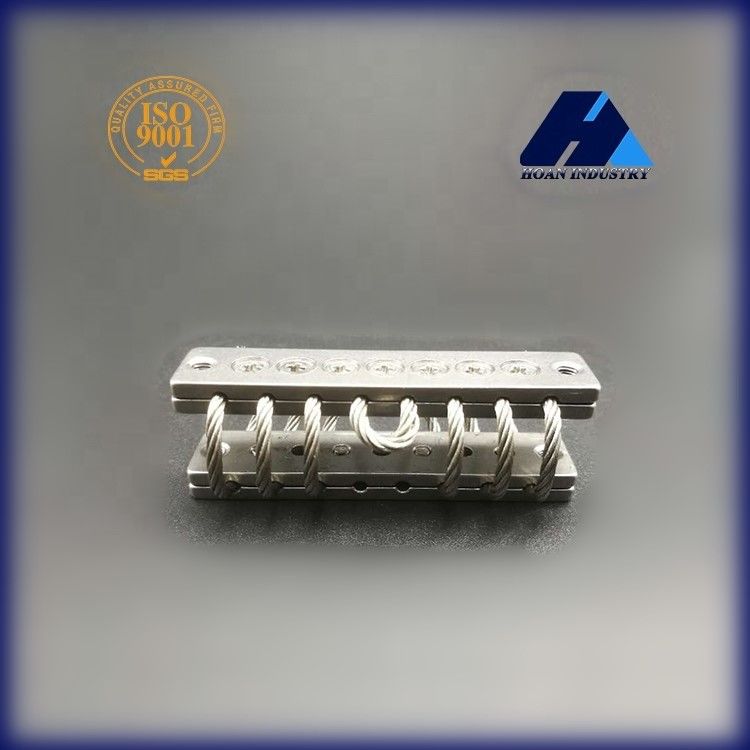

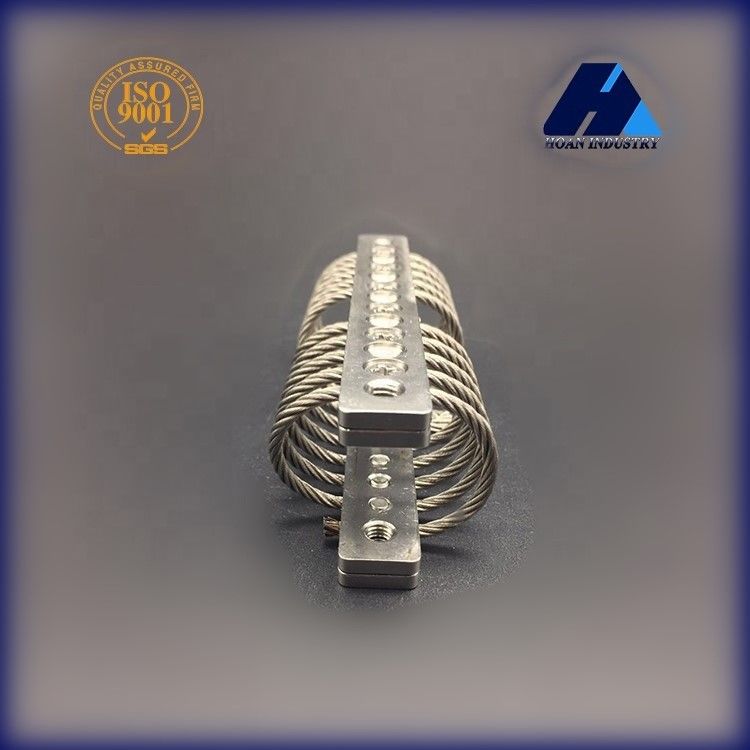

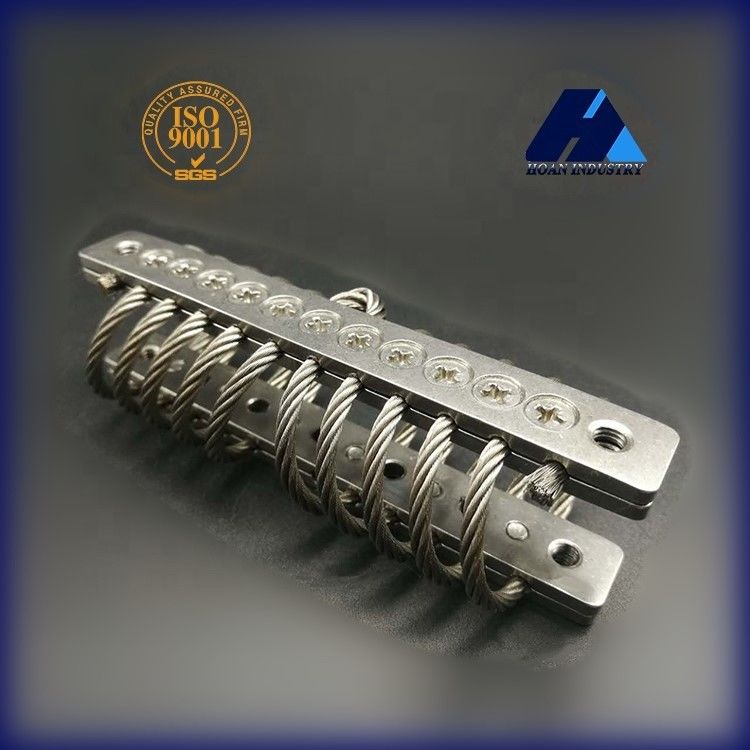

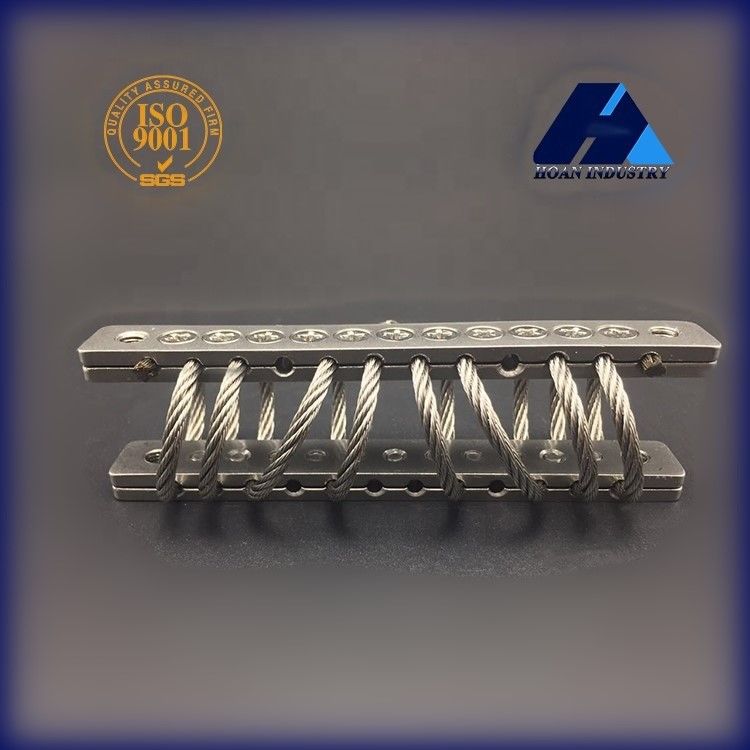

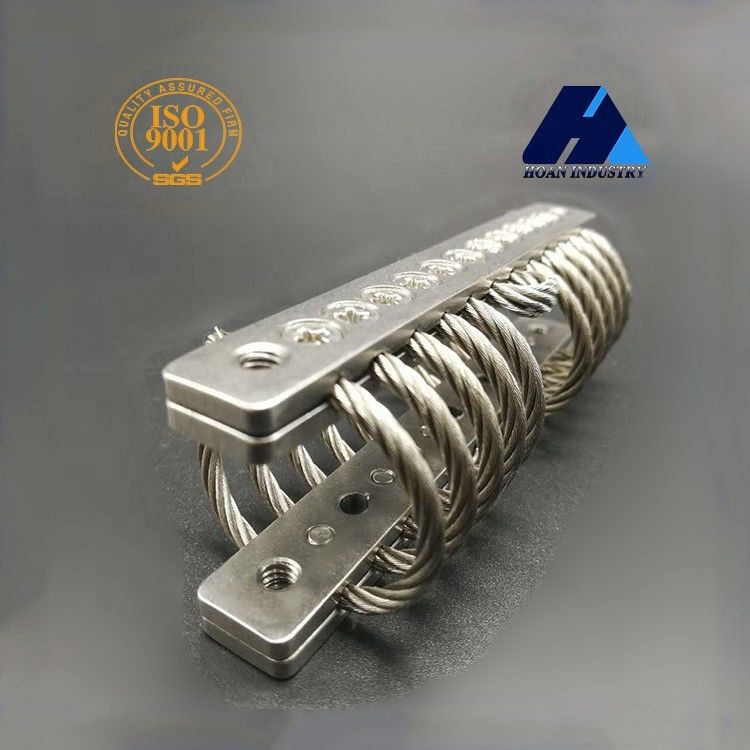

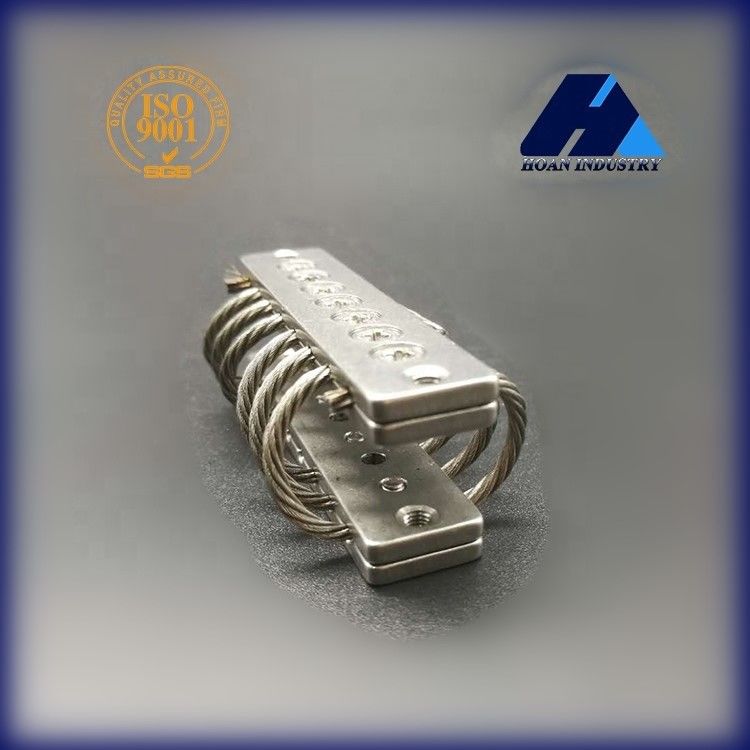

Wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.



The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosionresistanceand steady in use.
.

The max shock of the GH series is 30G, they are the new type wire rope isolators which are characterized with three-dimensional variable stiffness. This new GH wire rope isolators are designed for the special use in tanks or armored cars or any wokring conditions of strong impact.



The GH series isolators have been widely applied to the instruments of the aviation, vessel, tank and the equipments for ocean shipping to reduce the noise. Therefore, the instruments could run in the harsh mechanical environment.



The GH series vibration isolation are the ideal replacements of the traditional vibration isolators.

Technical Parameter
  • Model Number Code Ordering of GH Series:Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 0
  • Structural Diagram of GH Series:Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 1
  • Dimension of GH Series:Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 2
  • Technical Parameter of GH Series:Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 3
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



 * Applications Show *

Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 4



Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 5



Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 6



Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 7



Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 8



Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 9



Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 10



Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 11



Cable Wire Rope Shock Mounts 30G Helicopter Cabinet Transportation 12
