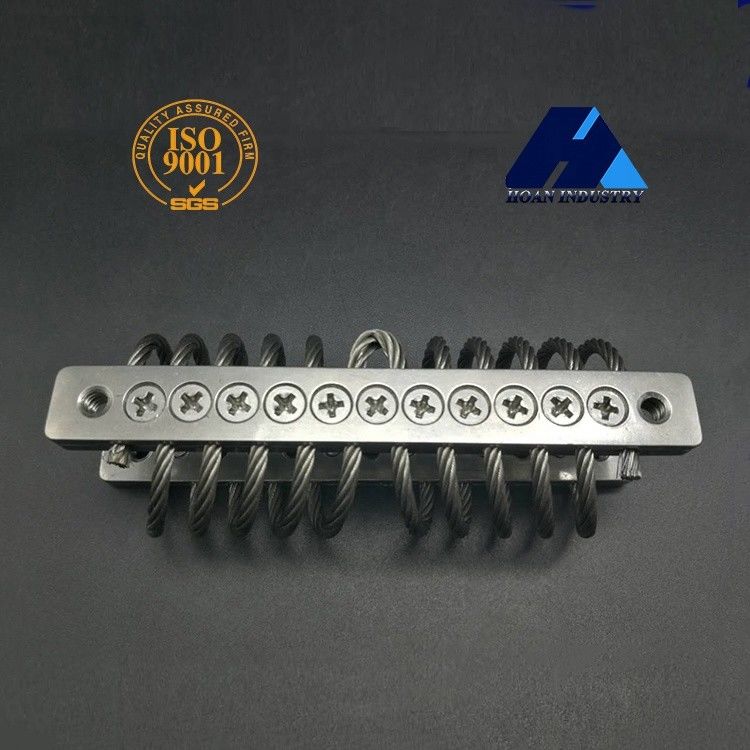

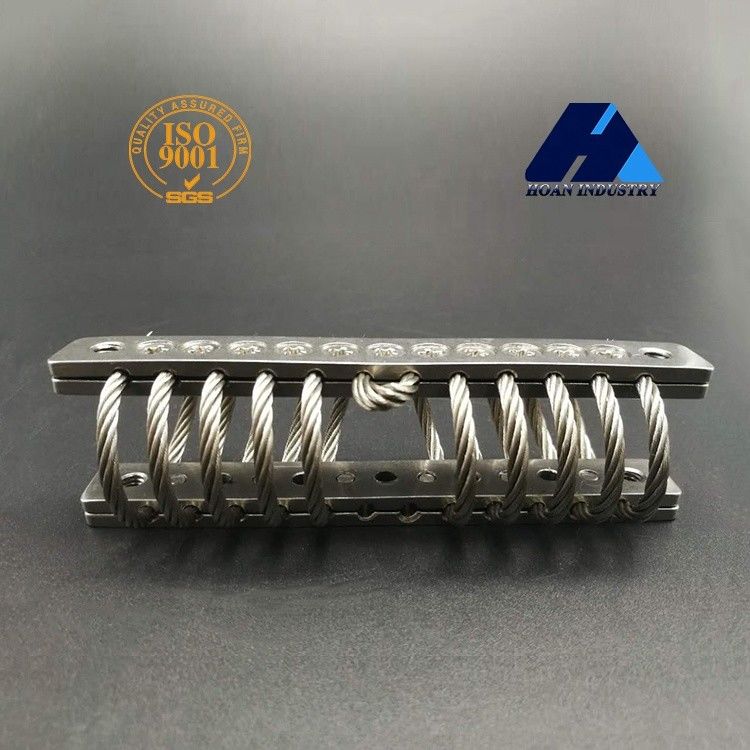

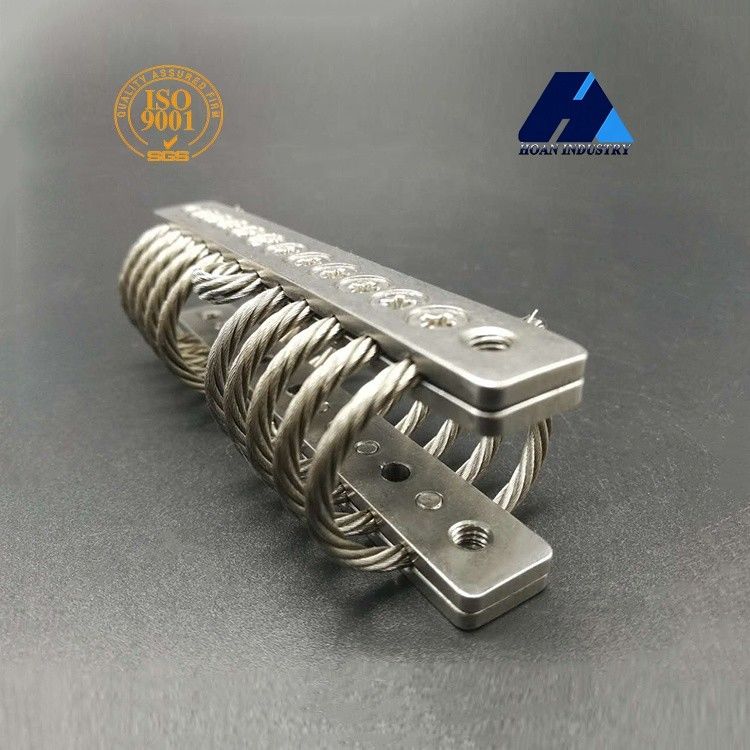

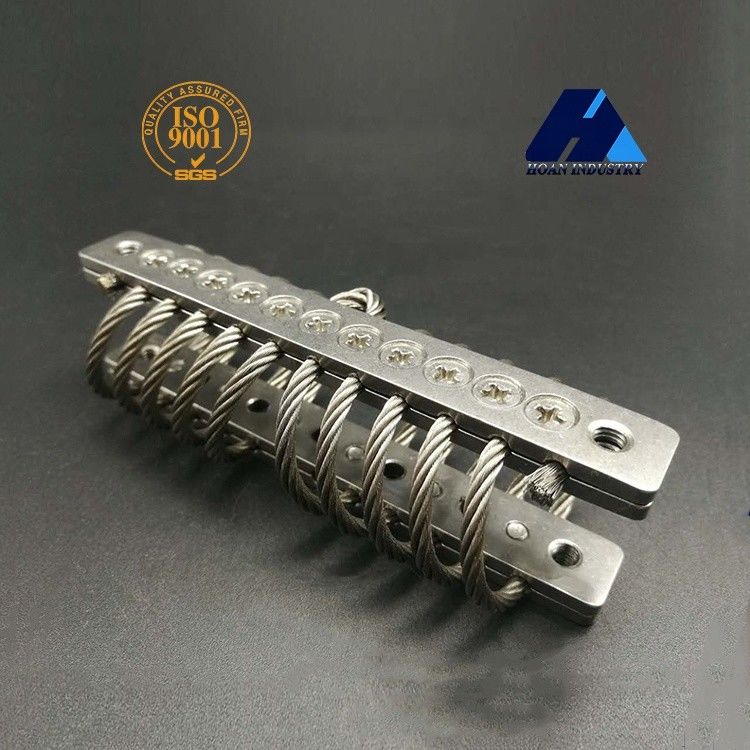

10 Loops Wire Rope Isolator 304 Stainless Steel Machine Accessories Vibration Shock Absorption

10 Loops Wire Rope Isolator 304 Stainless Steel Machine Accessories Vibration Shock Absorption

10 Loops Wire Rope Isolator

Wire Rope Isolator 304 Stainless Steel

Steel Rope Isolator

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Model Number:

GH-50A

Contact Us
Request A Quote
Product Details
Warranty:
1 Year
After-sale Service:
Online Technical Support
Project Solution Capability:
Total Solution For Projects
Application:
Other, Machine, Industry
Design Style:
Industrial
Material:
Stainless Steel Or Aluminum
Highlight:

10 Loops Wire Rope Isolator

,

Wire Rope Isolator 304 Stainless Steel

,

Steel Rope Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 pieces
Price
$38.00/pieces 4-199 pieces
Packaging Details
Standard export packing or as per customers' requirements.
Product Description

Professional Machine Accessories 30G Vibration Shock Absorption GH-50A Stainless Steel Wire Rope Shock Isolator

Product Description



Wire rope shock isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.



With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope  shock isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.



GH-50A is the new designed 10 loops wire rope isolators with Pz nominal load of 50N (5.10 kg), especially used in any instruments or systems for noise attenuation.



The max shock of the GH series is 30G. With stainless steel material, this isolators have perfect performance of water-proof, anticorrosion as well as durability.



Nowadays, the GH-50A series isolators are used widely in the field of photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.



Technical Parameter
  • Model Number Code Ordering of GH-50A:10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 0
  • Structural Diagram of GH-50A:10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 1
  • Dimension of GH-50A:10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 2
  • Technical Data of GH-50A:10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 3
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Shock Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 4



10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 5



10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 6



10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 7



10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 8



10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 9



10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 10



10 Loops Wire Rope Isolator 304 Stainless Steel  Machine Accessories Vibration Shock Absorption 11



Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 15 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
