Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Certification: ISO9001:2015 Certificate
Payment & Shipping Terms:
Price: $38.00/pieces 1-199 pieces
Contact Now
Detailed Product Description
Condition: New Applicable Industries: Building Material Shops, Manufacturing Plant, Food Shop, Food & Beverage Shops
Weight (KG): 0.25 Showroom Location: None
Video Outgoing-inspection: Not Available Machinery Test Report: Not Available
Marketing Type: New Product 2020 Warranty: 1 Year
Core Components: Bearing, Pump Material: Stainless Steel Or Aluminum
Application: Electric, PC, Video, UAV Camera, Drone RC Car
Highlight:

vibration isolators buildings

,

Spring mounts

,

Spring Cable vibration isolators

Electric PC Video UAV Camera Drone RC Car Used Vibration Shock Absorption JGX-0320D-13.5A Stainless Steel Wire Rope Isol

Product Description

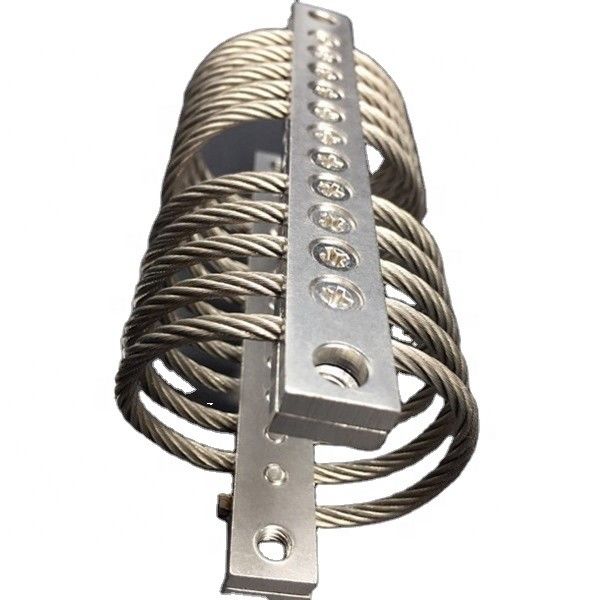

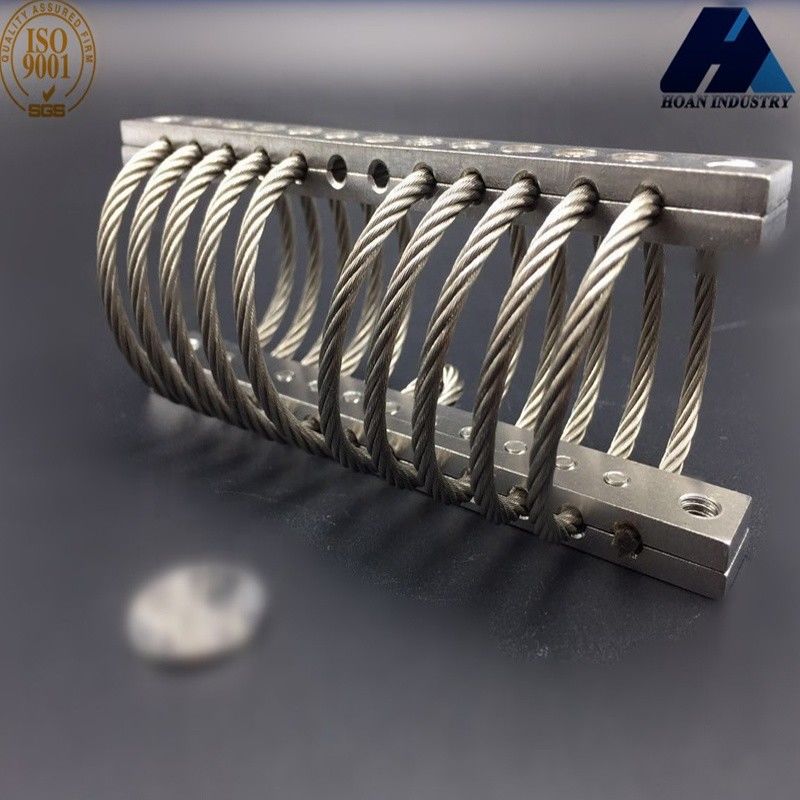

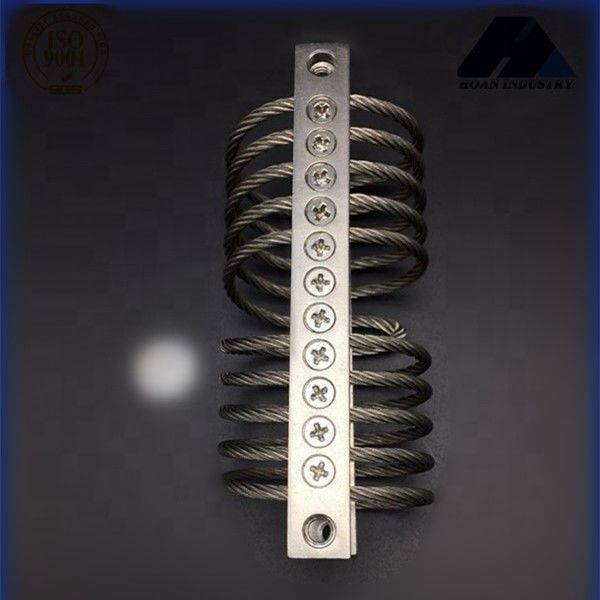

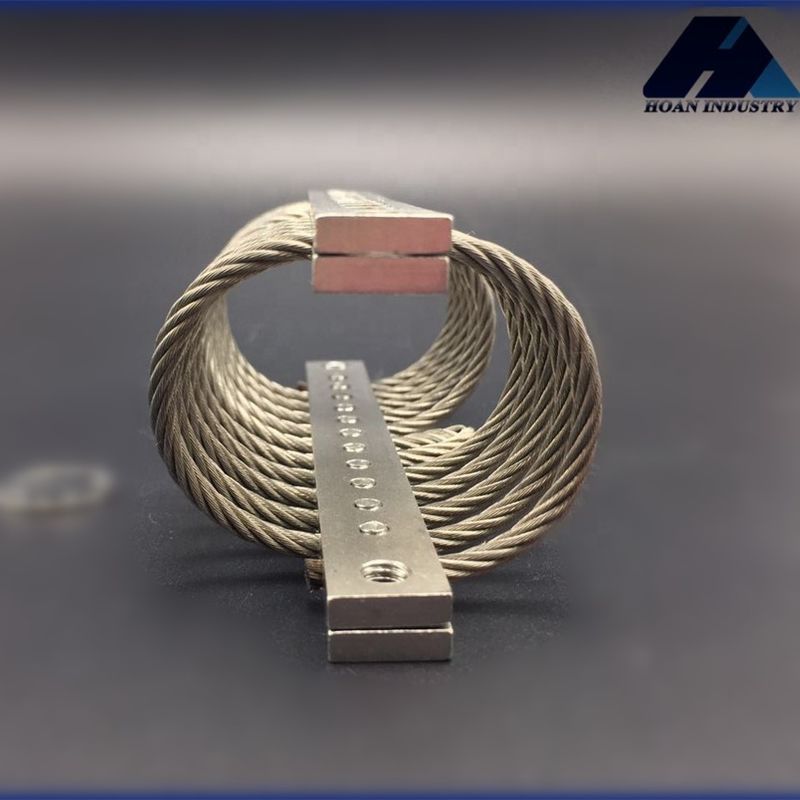

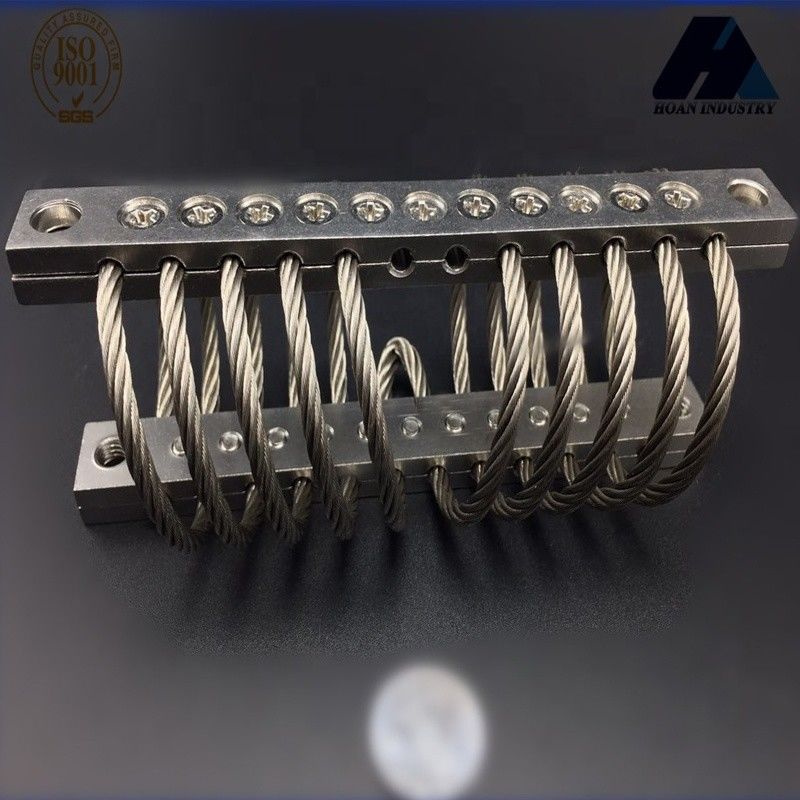

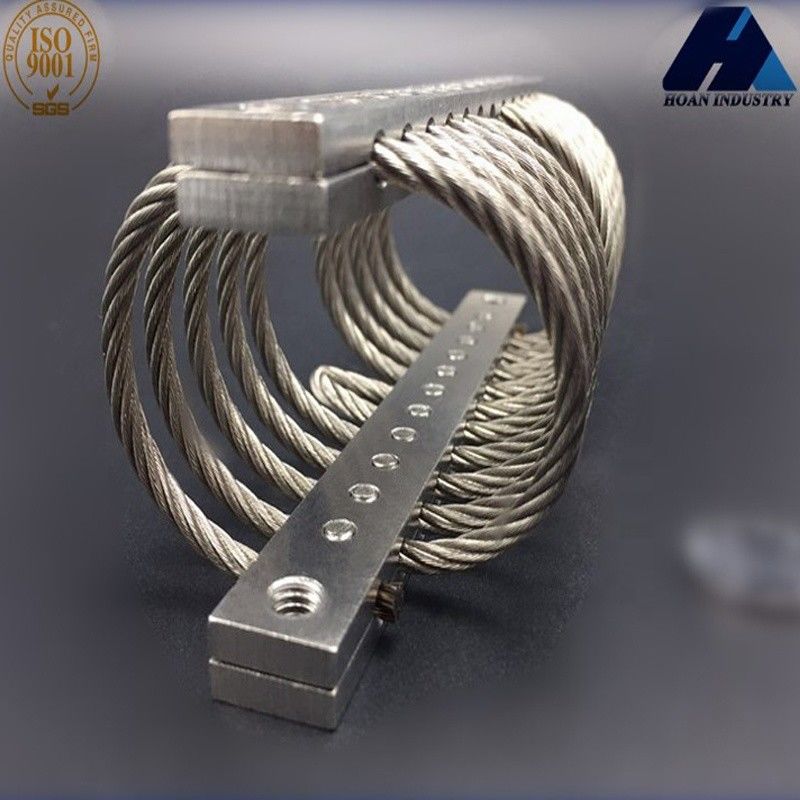

Wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.



With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.



JGX-0320D-13.5A is the new designed 10 loops 3.2mm diameter model with max static load of 13.5kg, especially used in the precise instruments for the noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.



Now the JGX-0320D-13.5A isolators are widely used in the field of  vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter
  • Model Number Code Ordering of JGX-0320D-13.5A:Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 0
  • Structural Diagram of JGX-0320D-13.5A:Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 1
  • Dimension of JGX-0320D-13.5A:Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 2
  • Mounting Options of JGX-0320D-13.5A:Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 3
  • Compression of JGX-0320D-13.5A:Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 4
  • 45° Compression of JGX-0320D-13.5A:Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 5
  • Shear/Roll of JGX-0320D-14A:Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 7



Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 8



Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 9



Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 10



Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 11



Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 12



Spring Cable Vibration Isolators Buildings Engine Isolator Mounts 13
