Water Pipe Vibration Line Isolator With Damping Engine Armored Car

Water Pipe Vibration Line Isolator With Damping Engine Armored Car

vibration isolator with damping

vibration line isolator

water pipe vibration isolators

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9000:2018

Contact Us
Request A Quote
Product Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other
Weight (KG):
0.5
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2023
Warranty:
1 Year
Core Components:
Bearing
Material:
Stainless Steel Or Aluminium
Application:
Machine, Industry, Engine, Armored Car
Highlight:

vibration isolator with damping

,

vibration line isolator

,

water pipe vibration isolators

Payment & Shipping Terms
Minimum Order Quantity
4 pieces
Price
$30.00/pieces 4-99 pieces
Packaging Details
Standard export packing or as per customers' requirements.
Product Description

Machine Tools Accessories Industry Engine Armored Car Vibration Shock Protection JGX-0480 Stainless Steel Wire Rope Isol

Product Description

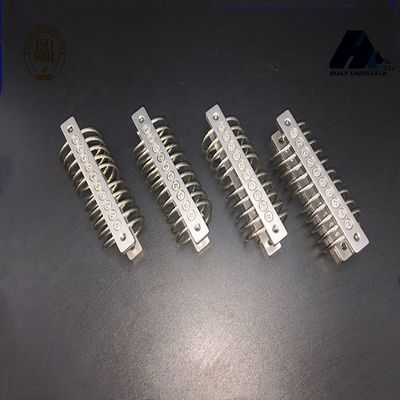

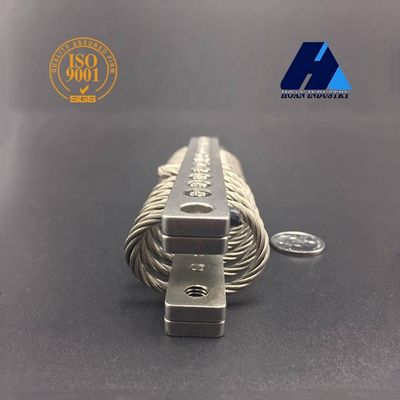

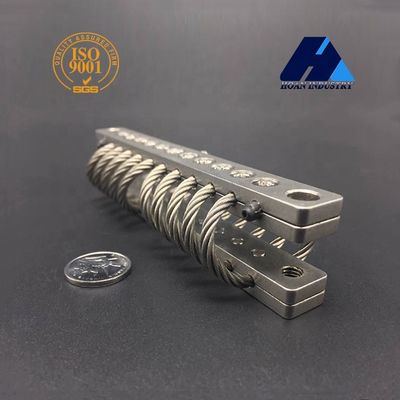

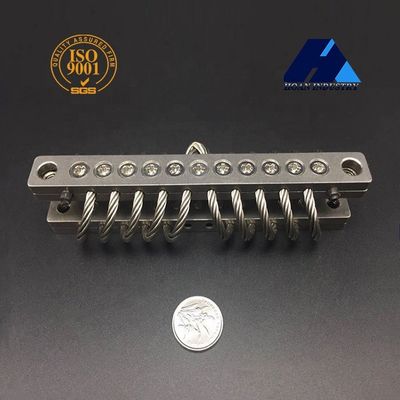

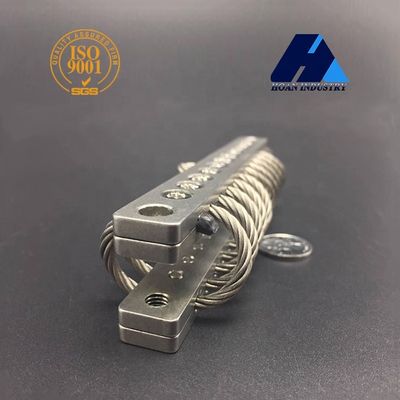

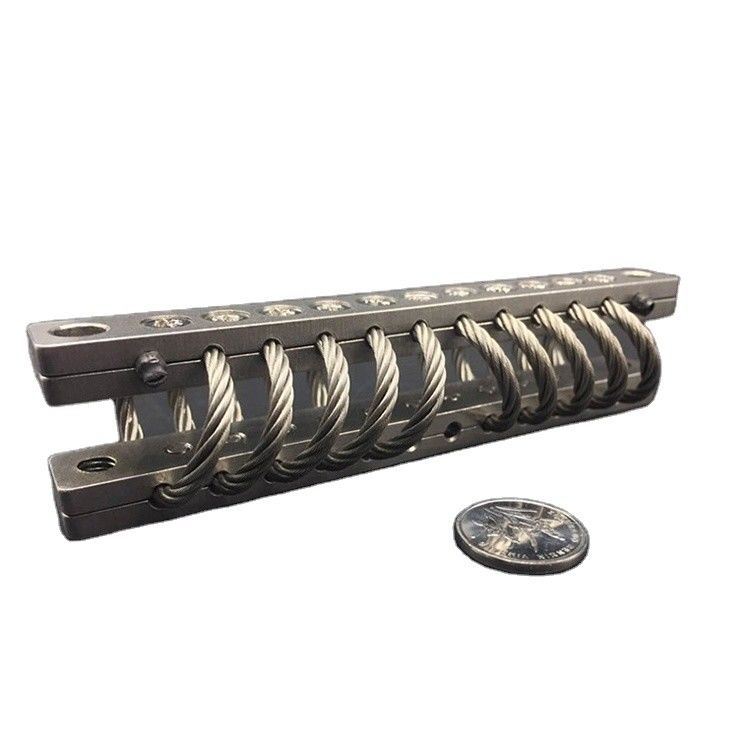

The JGX-0480 series wire rope isolators are the smaller type isolators with 10 loops 4.8mm diameter wire rope which can absorb shock and vibration in small spaces.  The single point mountings of the JGX-0480 series wire rope isolators offer flexibility for integration into existing products. The max static load of the JGX-0480 series wire iolators is from 12kg to 75kg.



With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.



The wire rope isolators are now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.



What’s more, the JGX-0480 series is also well unaffected by oil, chemicals, abrasives, ozone, and temperature extremes, and they can be used in any needed rough working conditions.

Technical Parameter
  • Model Number Code Ordering of JGX-0480 Series:Water Pipe Vibration Line Isolator With Damping Engine Armored Car 0
  • Structural Diagram of JGX-0480 Series:Water Pipe Vibration Line Isolator With Damping Engine Armored Car 1
  • Dimension of JGX-0480 Series:Water Pipe Vibration Line Isolator With Damping Engine Armored Car 2
  • Mounting Options of JGX-0480 Series:Water Pipe Vibration Line Isolator With Damping Engine Armored Car 3
  • Compression of JGX-0480 Series:Water Pipe Vibration Line Isolator With Damping Engine Armored Car 4
  • 45° Compression of JGX-0480 Series:Water Pipe Vibration Line Isolator With Damping Engine Armored Car 5
  • Shear/Roll of JGX-0480 Series:Water Pipe Vibration Line Isolator With Damping Engine Armored Car 6
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Water Pipe Vibration Line Isolator With Damping Engine Armored Car 7



Water Pipe Vibration Line Isolator With Damping Engine Armored Car 8



Water Pipe Vibration Line Isolator With Damping Engine Armored Car 9



Water Pipe Vibration Line Isolator With Damping Engine Armored Car 10



Water Pipe Vibration Line Isolator With Damping Engine Armored Car 11



Water Pipe Vibration Line Isolator With Damping Engine Armored Car 12



Water Pipe Vibration Line Isolator With Damping Engine Armored Car 13





Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
