Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet
Product Details:
Place of Origin: Shaanxi, China
Certification: ISO9001:2015
Model Number: JGX-0320D-12A
Payment & Shipping Terms:
Price: $38.62/pieces 1-199 pieces
Contact Now
Detailed Product Description
Warranty: 1 Year After-sale Service: Online Technical Support
Project Solution Capability: Others Application: Apartment, Industry, Embedded, Electronics, Camera, Compressor, Cabinet
Design Style: Industrial Material: Stainless Steel Or Aluminum
Highlight:

rope isolator

,

wire rope isolator damping

,

wire rope isolator for camera

Industry Embedded Electronics Camera Compressor Cabinet Shock Absorption JGX-0320D-12A Wire Isolation Mount

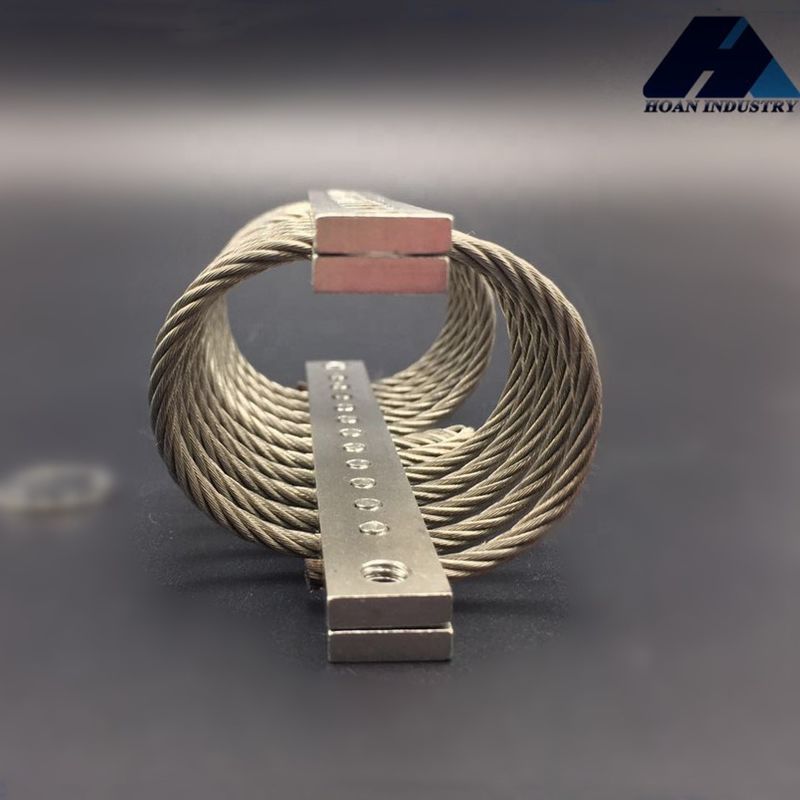

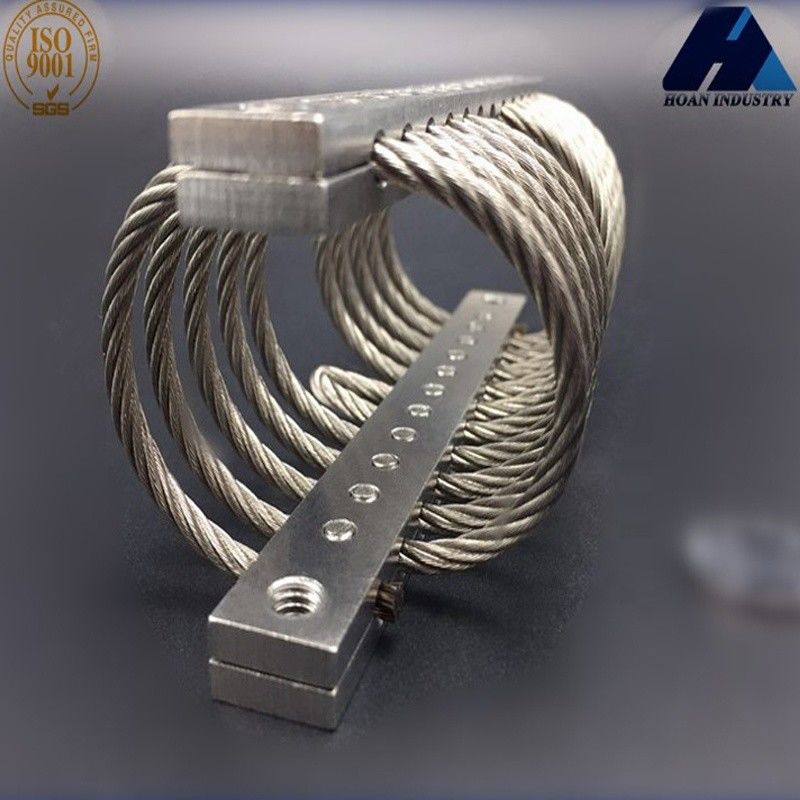

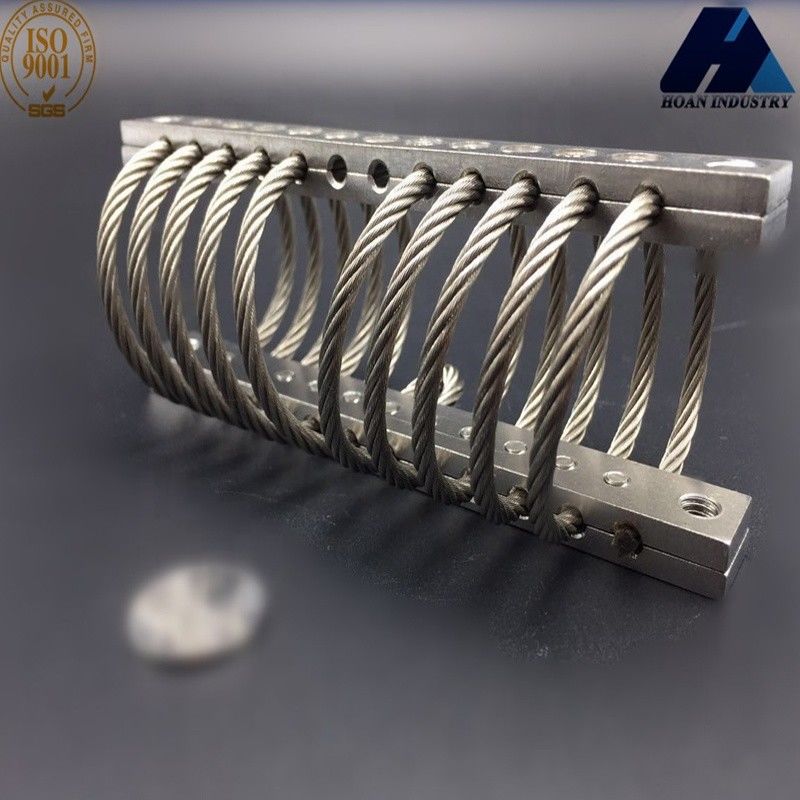

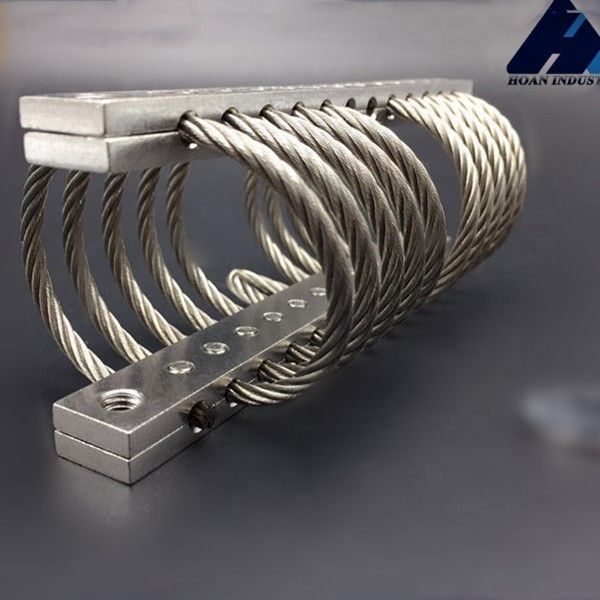

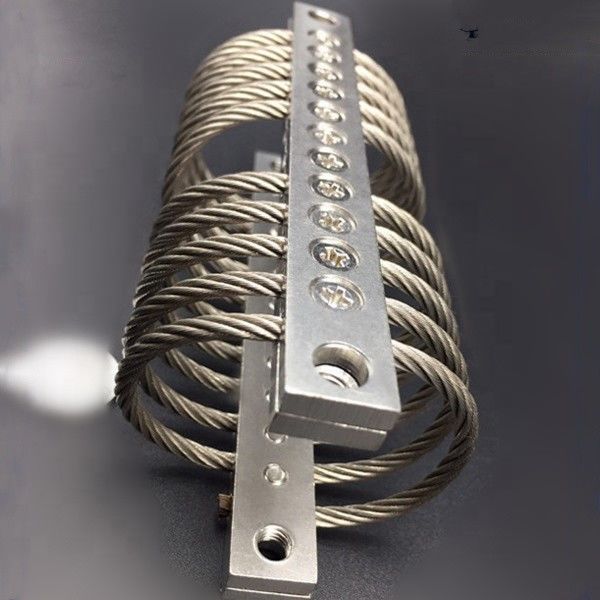

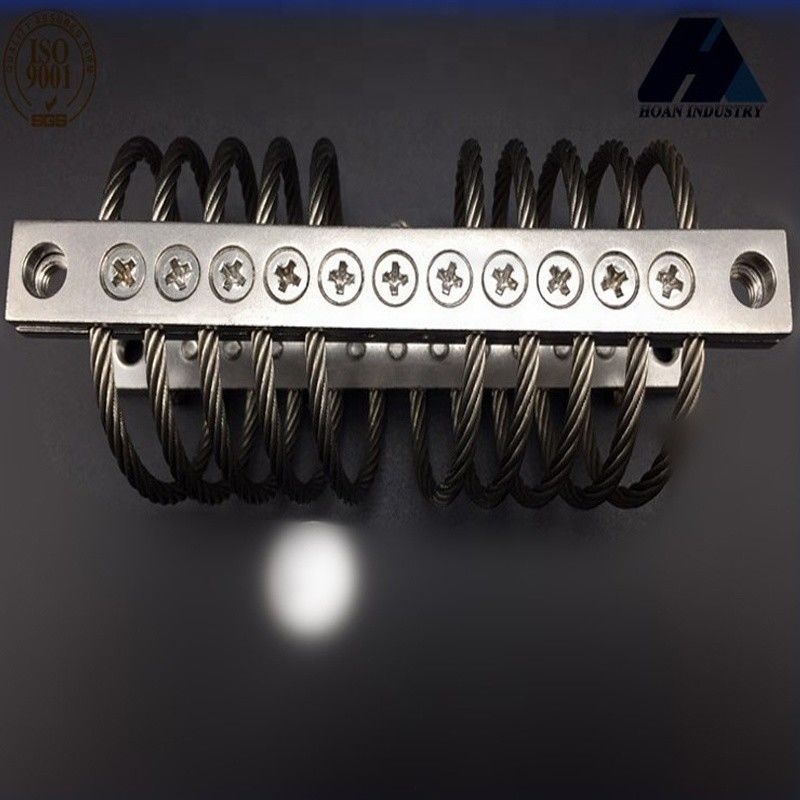

Wire isolation mounts are also named of wire rope isolators, which are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.



With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire isolation mounts are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.



JGX-0320D-12A is the new designed 10 loops 3.2mm diameter model with max static load of 12kg, especially used in the precise instruments for the noise attenuation.



With stainless steel material, this kind wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.



The wire isolation mounts are now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter
  • Model Number Code Ordering of JGX-0320D-12A:Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 0
  • Structural Diagram of JGX-0320D-12A:Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 1
  • Dimension of JGX-0320D-12A:Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 2
  • Mounting Options of JGX-0320D-12A:Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 3
  • Compression of JGX-0320D-12A:Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 4
  • 45° Compression of JGX-0320D-12A:Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 5
  • Shear/Roll of JGX-0320D-12A:Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Isolation Mounts *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 7



Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 8



Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 9



Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 10



Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 11



Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 12



Wire Rope Isolator Anti-Vibration Mount Damping For Camera Compressor Cabinet 13
