Product Details:
Certification: ISO9001:2015
Payment & Shipping Terms:
Price: $21.27/pieces 1-199 pieces
Contact Now
Detailed Product Description
Type: SHOCK ABSORBER Material: Stainless Steel Or Aluminum, Stainless Steel Or Aluminum
Applicable Industries: Transport Weight (KG): 0.119
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2023
Model: JGX-0240D-7.7A Warranty: Unavailable
Core Components: Wirerope Application: Embedded Electronics, Camera, Drone, Video Surveillance
Highlight:

Camera Vibration Isolator

,

cable vibration isolators

,

vibration isolator and absorber

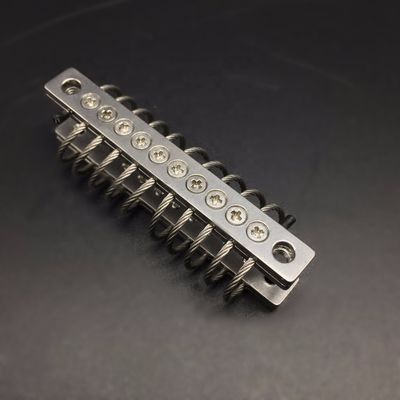

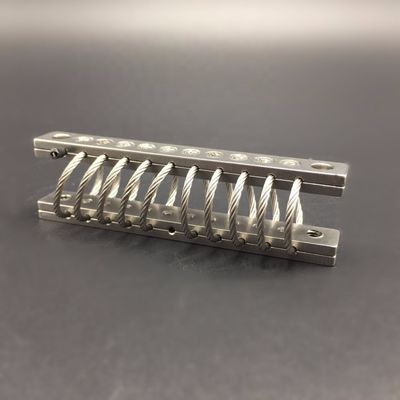

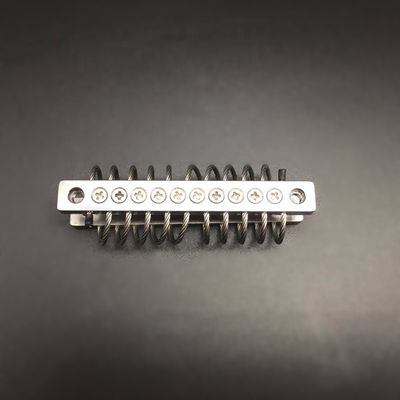

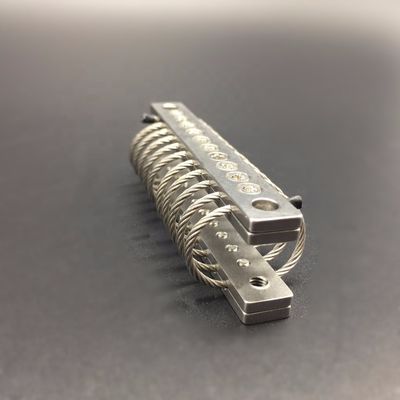

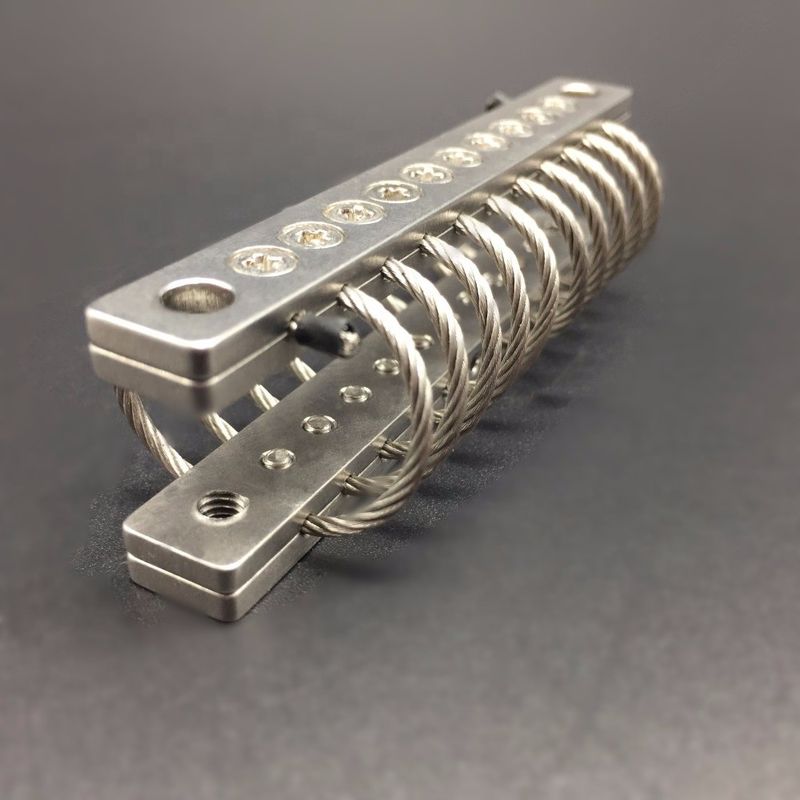

Machine Accessories Embedded Electronics Camera Drone Shock Vibration Insulation JGX-0240D-7.7A Wire Isolation Mount

Product Description



Wire isolation mount is also called wire isolators, which are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.



With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire isolation mounts are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.



JGX-0240D-7.7A is the new designed 10 loops 2.4mm diameter model with max static load of 7.7kg, especially used in the precise instruments for the noise attenuation.



Nowadays, the JGX-0240 series isolators are used widely in the field of vehicles, armored cars,  launcher, highway transportation, shipbuilding, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter
  • Model Number Code Ordering of JGX-0240D-7.7A:Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 0
  • Structural Diagram of JGX-0240D-7.7A:Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 1
  • Dimension of JGX-0240D-7.7A:Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 2
  • Mounting Options of JGX-0240D-7.7A:Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 3
  • Compression of JGX-0240D-7.7A:Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 4
  • 45° Compression of JGX-0240D-7.7A:Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 5
  • Shear/Roll of JGX-0240D-7.7A:Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Dampers *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Dampers *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



* Applications Show *

Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 7



Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 8



Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 9



Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 10



Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 11



Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 12



Camera Cable Vibration Isolators And Absorber Electronics Camera Drone Shock Vibration Insulation 13
