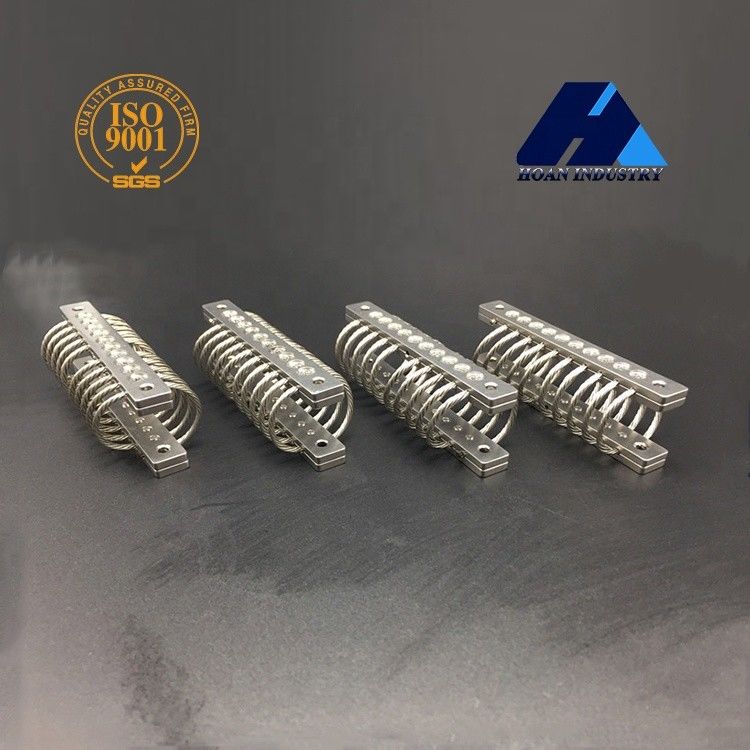

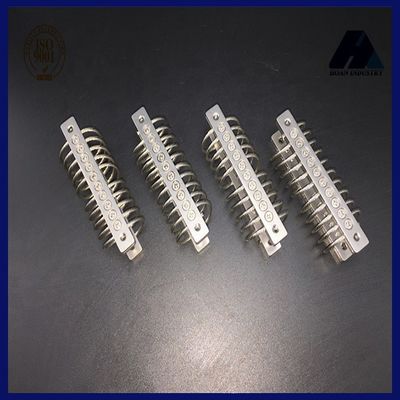

Wire Rope Helical Vibration Shock Isolator Vibration Damping Mounts

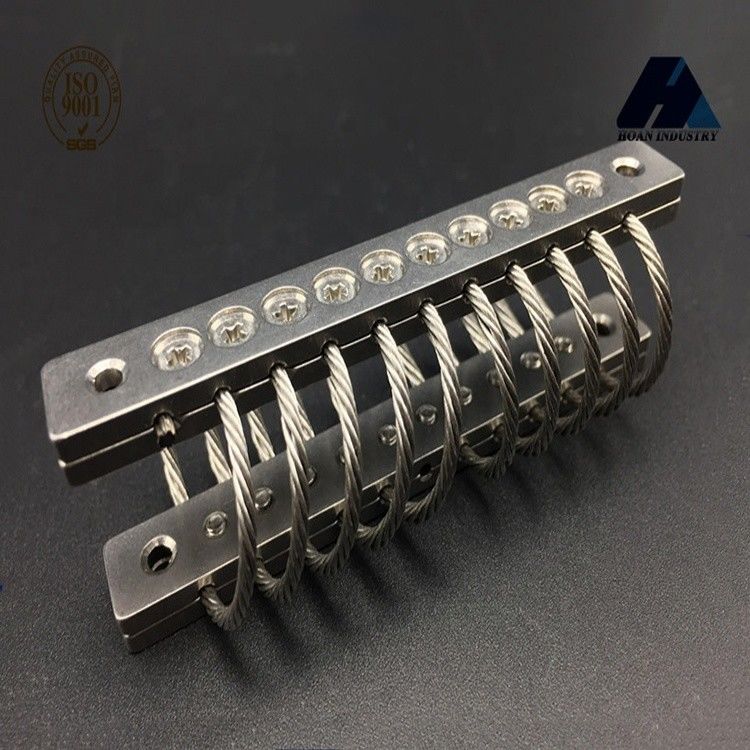

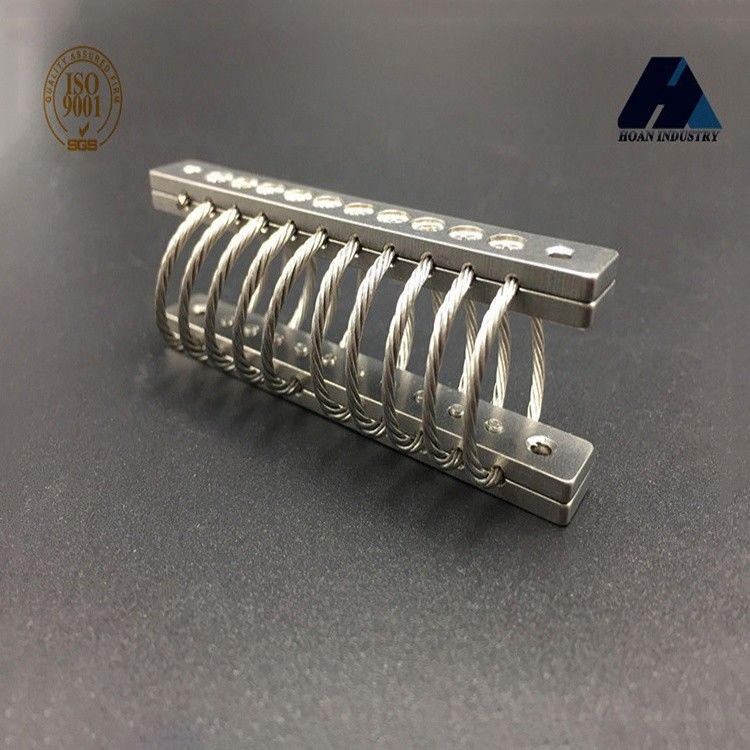

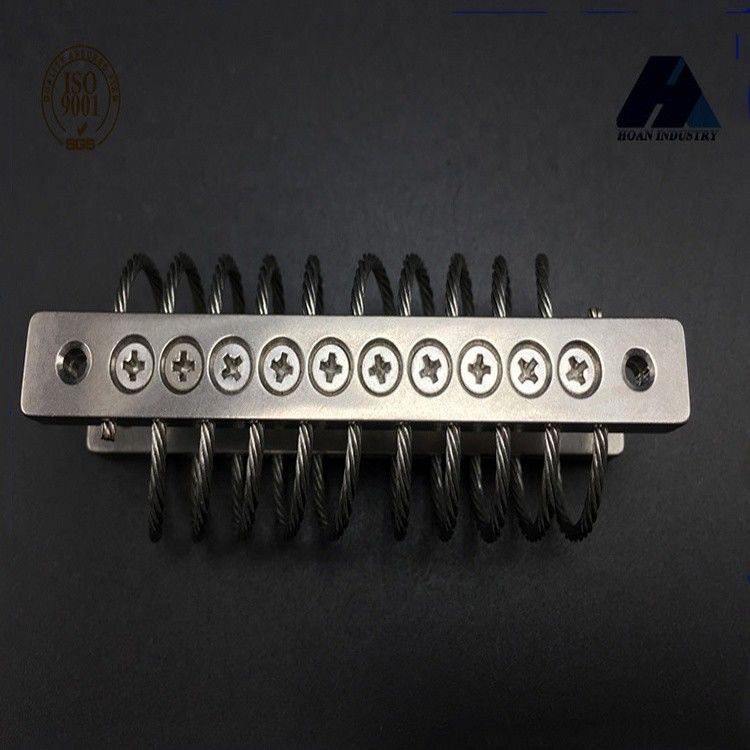

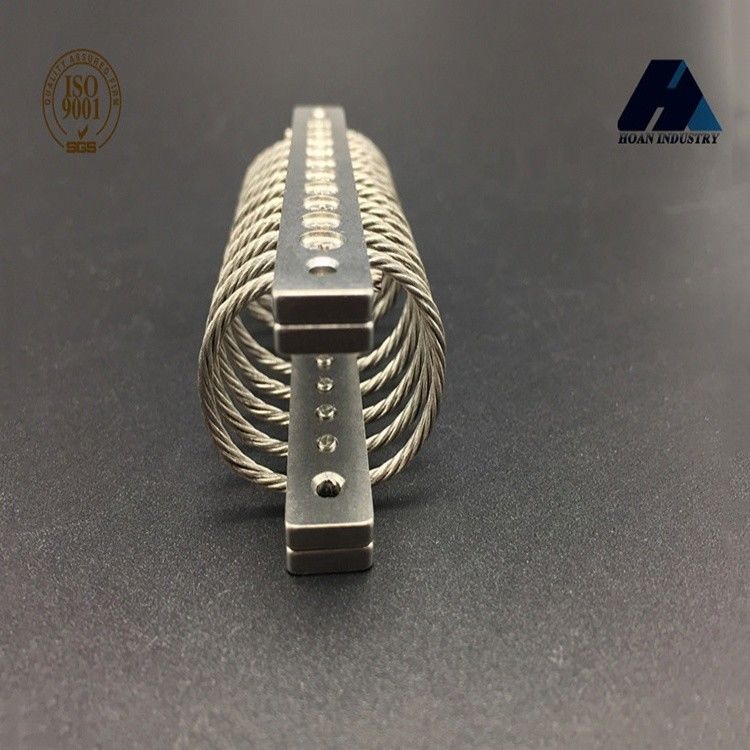

Wire shock mounts are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s shock absorbers are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

JGX-0160 seires is the new designed 10 loops 1.6mm diameter model with max static load from 2kg to 3.6kg, especially used in the precise instruments or systerms for noise attenuation.

The wire shock mounts are now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, generators, cameras or any other needed working conditions.

• Model Number Code Ordering of JGX-0160 Series:
• Structural Diagram of JGX-0160 Series:
• Dimension of JGX-0160 Series:
• Mounting Options of JGX-0160 Series:
• Compression of JGX-0160 Series:
• 45° Compression of JGX-0160 Series:
• Shear/Roll of JGX-0160 Series:

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Applications of Wire Shock Mounts *

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of shock absorbers and vibration mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.

Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.

Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.

We, Xi'an Hoan Mirowave Co. Ltd will always commits to provide the qualified products and superior service to all of our worldwide customers!
