Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR4-13D-A
GR4 Series
In industrial production, vibration often comes from the operation of equipment, such as motor operation, machining, etc. If left unchecked, these vibrations can affect the accuracy of the equipment, reduce productivity, and may even lead to safety incidents. The GR4 series isolators effectively reduce these adverse effects by absorbing and isolating vibrations. For example, in precision machining, the GR4 series isolators can be installed in key parts of the machine tool, such as between the headstock and the table, to reduce the vibration generated during machining, thereby improving machining accuracy and product quality.
In addition to machining, the GR4 series isolators are also used in a wide range of other industrial applications. In the aerospace industry, the stability of equipment is extremely high due to the complex vibration environment experienced by aircraft during take-off, flight and landing. GR4 series isolators can be used in key components such as avionics systems, navigation systems, etc., to ensure the reliability of these systems under extreme conditions. In the communications industry, the stable operation of base stations is essential for signal transmission. GR4 series isolators can be installed in the antenna, feeder and other parts of the base station to reduce the vibration caused by wind, earthquake and other factors, and ensure the stable transmission of signals.

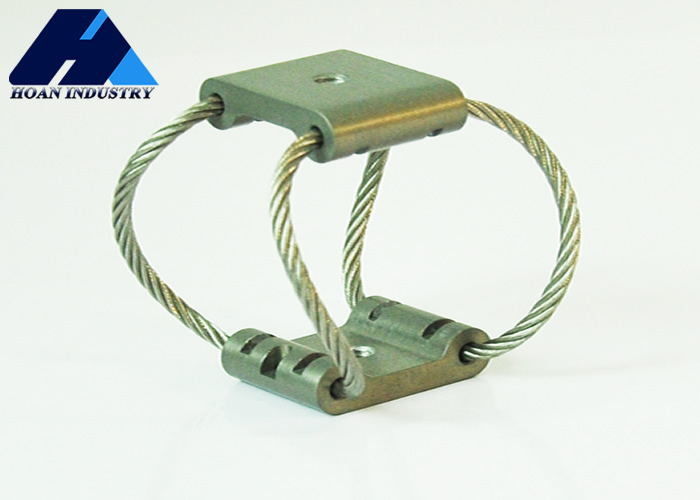

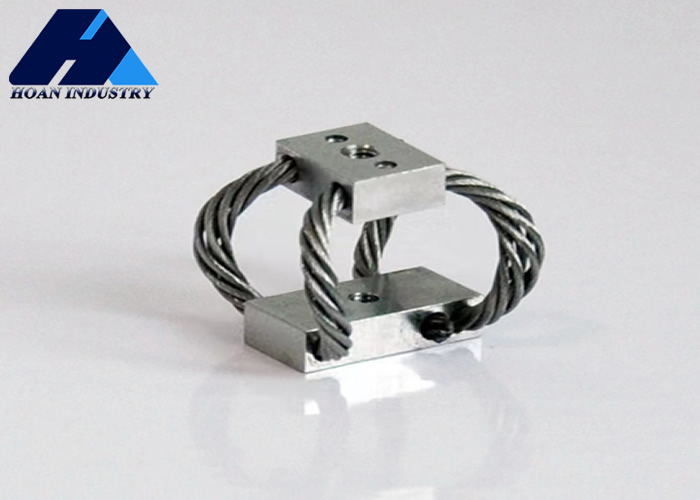

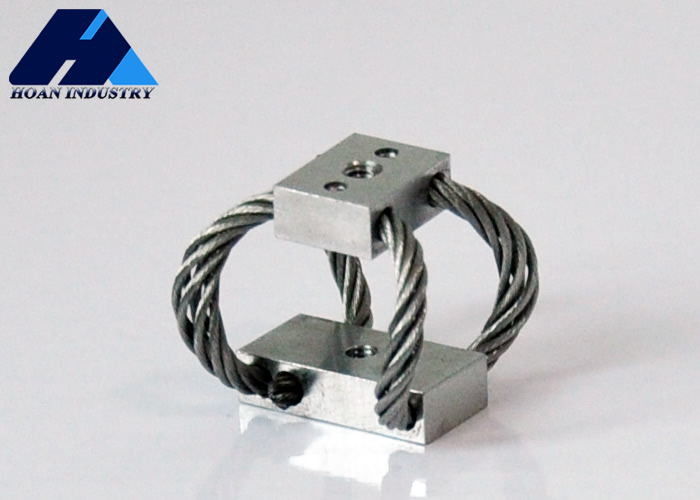

The GR4 series of compact wire rope isolators play an important role in the industrial field due to their excellent performance and wide applicability. From precision machining to aerospace, from communication base stations to chemical production, to automotive manufacturing, the GR4 series isolators can find their application stage. It not only improves the stability of the equipment, prolongs the service life of the equipment, but also guarantees the continuity and safety of production to a large extent. With the continuous advancement of industrial technology, it is believed that the GR4 series isolators will play an even more important role in future industrial applications.
| No. | Nodel |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR4-24D-A | 24 | 19.6 | 12 | 5.8 |
| 2 | GR4-18D-A | 18 | 29.7 | 6 | 2.5 |
| 3 | GR4-13D-A | 13 | 35.8 | 4.4 | 1.6 |
| 4 | GR4-6.7D-A | 6.7 | 49.3 | 2.2 | 0.7 |
| No. | Nodel |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR4-24D-A | 11 | 19.3 | 6.4 | 2.8 |
| 2 | GR4-18D-A | 6.7 | 29.5 | 3.1 | 1.1 |
| 3 | GR4-13D-A | 5.3 | 37.1 | 2.2 | 0.7 |
| 4 | GR4-6.7D-A | 3.6 | 52.3 | 1.1 | 0.4 |
| No. | Nodel |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR4-24D-A | 8.5 | 17.3 | 1.9 | 1.9 |
| 2 | GR4-18D-A | 7.1 | 26.4 | 1.1 | 1.1 |
| 3 | GR4-13D-A | 5.3 | 33.3 | 0.7 | 0.7 |
| 4 | GR4-6.7D-A | 3.3 | 47 | 0.4 | 0.4 |
