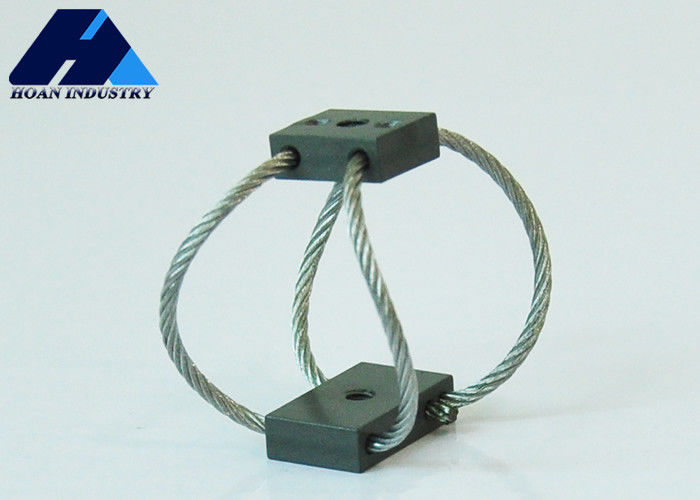

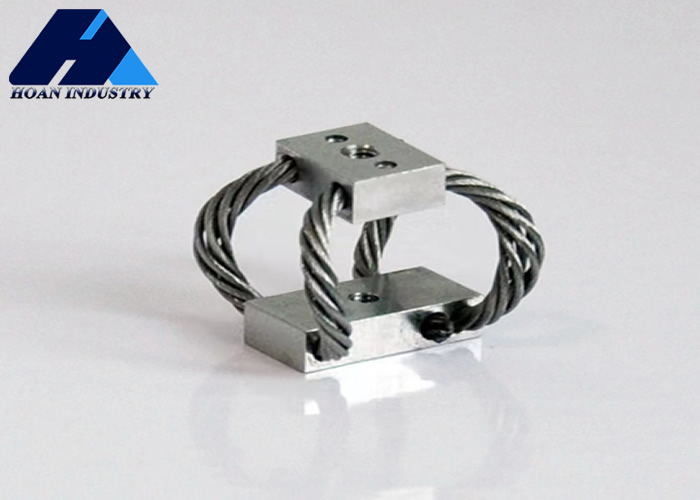

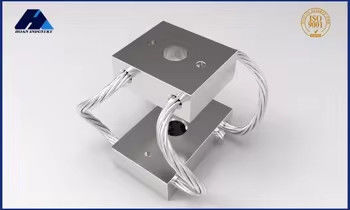

GR1-3.3D-A Adjustable Steel Wire Rope Vibration Isolator for Cameras

Name: GR1-3.3D-A Adjustable Steel Wire Rope Vibration Isolator for Cameras
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR1-1.3A-A
Availability: InStock

Brand Name:	Hoan
Model Number:	GR1-1.3A-A
MOQ:	4
Payment Terms:	L/C,D/A,T/T,D/P,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015

Document:

GR series.pdf

Model:

GR1-3.3D-A

Marketing Type:

Hot Product 2019

Adjustable:

Yes

Adjustability:

Can Be Adjusted For Different Camera Weights

Function:

Reduces Camera Vibrations For Smoother Footage

Warranty:

1 Year Limited Warranty

Durability:

Made With High-quality Materials For Long-lasting Use

Condition:

New

Machinery Test Report:

Not Available

Flexibility:

Can Be Used With Various Types Of Cameras

Material:

Steel Wire Rope

Application:

Aerial, Camera,

Design Style:

Industrial

Core Components:

Gear

Highlight:

adjustable camera vibration isolator

steel wire rope isolator for cameras

GR1-3.3D-A camera vibration dampener

Product Description

GR1-1.3A-A Butterfly-Shaped Vibration Isolator

The ultimate choice for high-load environments with -grade reliability and innovative butterfly-wing design.

Product Specifications

Attribute	Value
Model	GR1-3.3D-A
Material	Steel wire rope
Adjustability	Yes - can be adjusted for different camera weights
Function	Reduces camera vibrations for smoother footage
Application	Aerial, Camera
Core Components	Gear
Warranty	1 year limited warranty

Product Overview

With innovative butterfly wings bearing the responsibility of safety, the GR1 series vibration isolator serves as the reliable foundation for industrial and technological equipment. The butterfly-shaped steel wire rope structure provides:

Excellent vibration isolation and buffering performance
No mechanical friction components
Integral structure for ultra-long service life
Maintenance-free operation
Consistent performance in extreme environments

Dimension Parameters

Model	Height(mm) ±1.5	Width(mm)	Weight(kg)	Mounting Options	Thru Hole(mm)	Thread(mm)	C'sink(°)
GR1-3.3A-A	17	19	0.05	A,B,C,D,E,S	∅3.3	M3*0.5	90
GR1-2.4A-A	19	20	0.05
GR1-1.8A-A	23	23	0.05
GR1-1.3A-A	26	26	0.05

Static-Load Performance

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR1-3.3A-A	3.3	6.4	3.9	1.9
2	GR1-2.4A-A	2.4	8.4	2.8	1.2
3	GR1-1.8A-A	1.8	11.9	1.8	0.6
4	GR1-1.3A-A	1.3	15	1.3	0.4

Mounting Options

Mounting Bar Materials

Stainless Steel - Standard corrosion resistance
Aluminum - Lightweight option with surface treatment choices:
- White Anodizing - Standard surface hardening
- Hard Anodizing - Enhanced hardness for demanding conditions

Application Examples
