Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR5-38D-A
GR5 Series

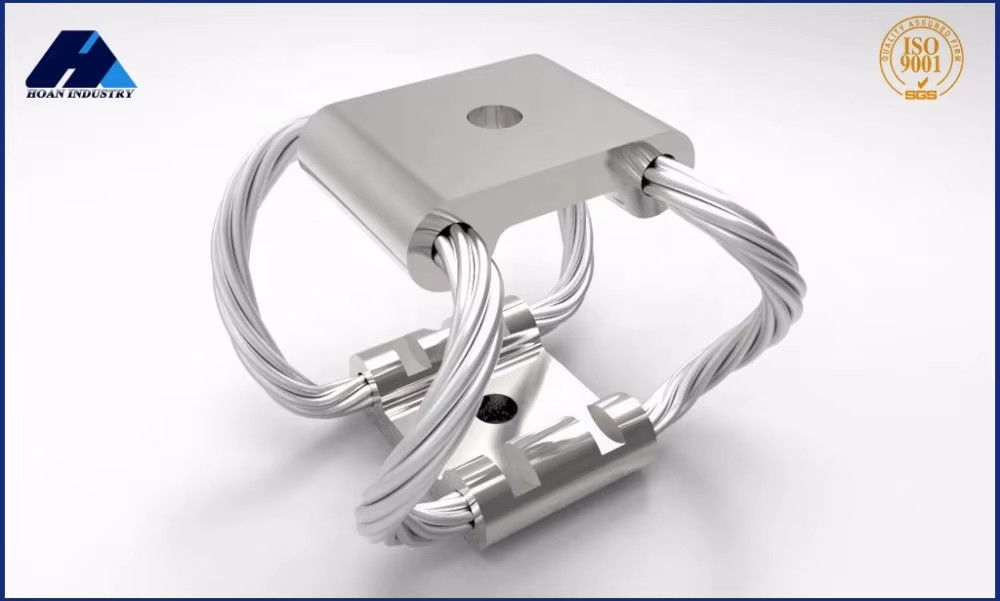

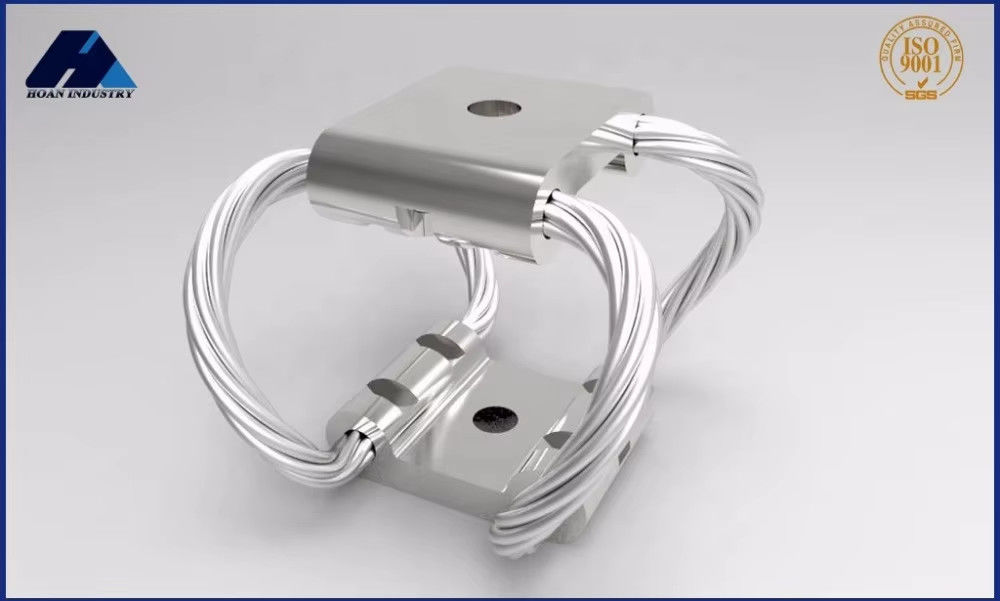

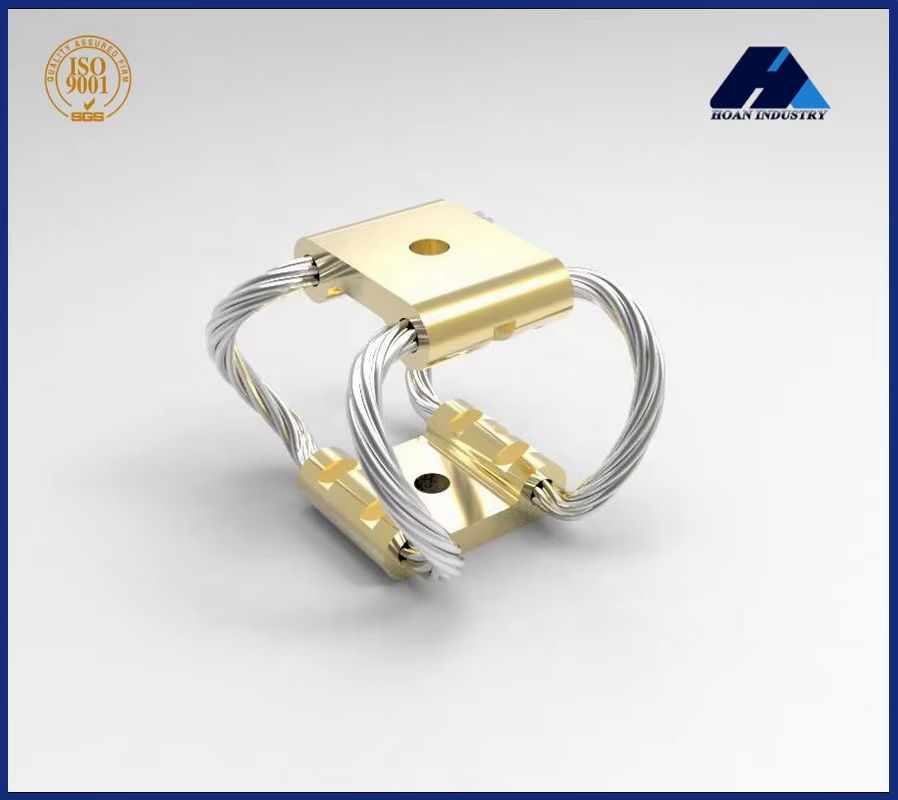

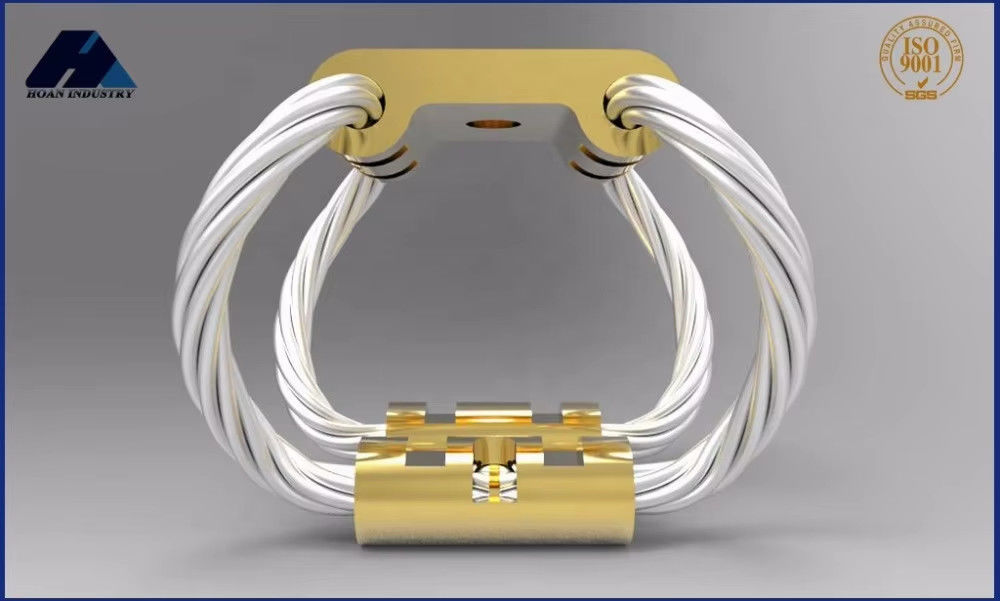

Xi'an Hoan's GR Type Wire Rope Vibration Isolator is a stabilized device specially designed for drones, which provides a stable shooting platform for drones through precision wire rope design and advanced damping technology. This isolator is designed to reduce the vibrations generated by the drone during flight, thereby improving the quality of aerial images, reducing blur and out-of-focus, and increasing pilot productivity.
The most significant advantage is its excellent stability. GR type wire rope vibration isolator can effectively absorb and reduce the vibration generated by the drone during flight, whether it is in a complex airflow environment or when flying at high speed, it can keep the drone camera stable, so as to improve the image quality.
GR wire rope isolators are manufactured with high-quality materials, including stainless steel and high-grade synthetics, which not only guarantee the durability of the isolators, but also make them resistant to harsh climatic conditions and prolonged use.
The application of Xi'an Hoan's GR type wire rope isolator in drones has proven its superiority in stabilizing images. With the continuous progress of technology and the expansion of application fields, we have reason to believe that GR wire rope vibration isolator will play a more important role in the future UAV market, bringing more possibilities for UAV shooting and application.
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR5-80D-A | 80 | 19.6 | 22 | 11 |
| 2 | GR5-38D-A | 38 | 28.7 | 11 | 4.4 |
| 3 | GR5-27D-A | 27 | 34.8 | 7.9 | 3.2 |
| 4 | GR5-16D-A | 16 | 49.3 | 4.4 | 1.4 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR5-80D-A | 24 | 18.3 | 12 | 6.1 |
| 2 | GR5-38D-A | 13 | 28.4 | 5.3 | 2.3 |
| 3 | GR5-27D-A | 11 | 36.1 | 3.6 | 1.4 |
| 4 | GR5-16D-A | 6.7 | 53.8 | 1.9 | 0.7 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR5-80D-A | 20 | 16.5 | 4.4 | 4.4 |
| 2 | GR5-38D-A | 13 | 25.7 | 2.1 | 2.1 |
| 3 | GR5-27D-A | 11 | 32.5 | 1.4 | 1.4 |
| 4 | GR5-16D-A | 6.7 | 48.5 | 0.7 | 0.7 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
