Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR5-16D-A
GR5 Series

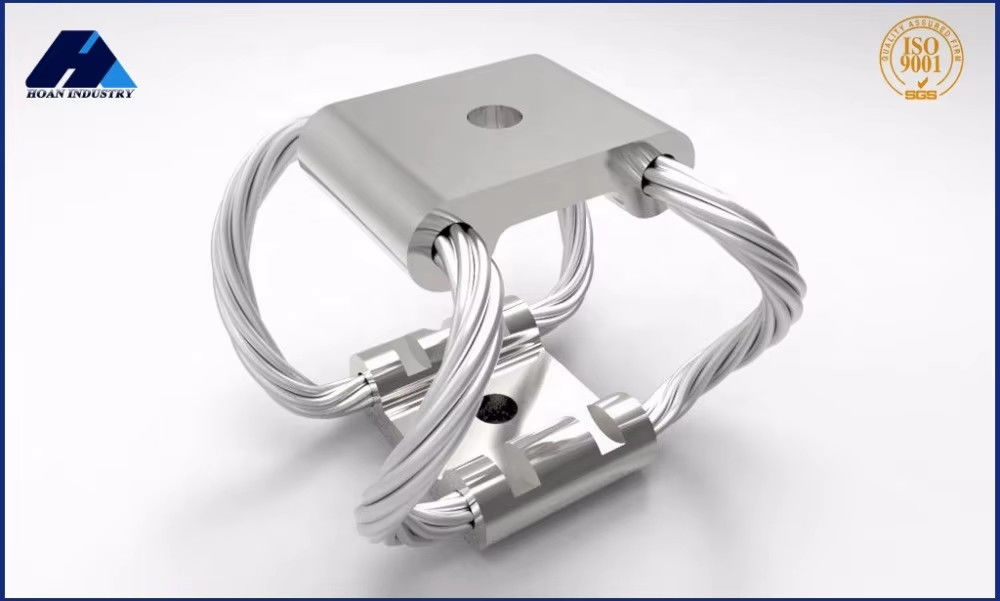

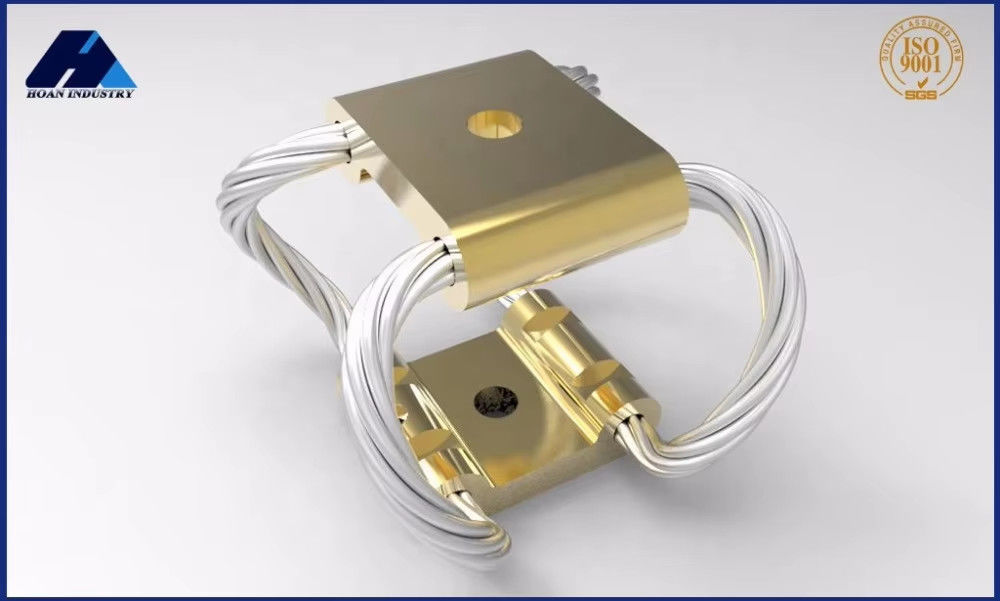

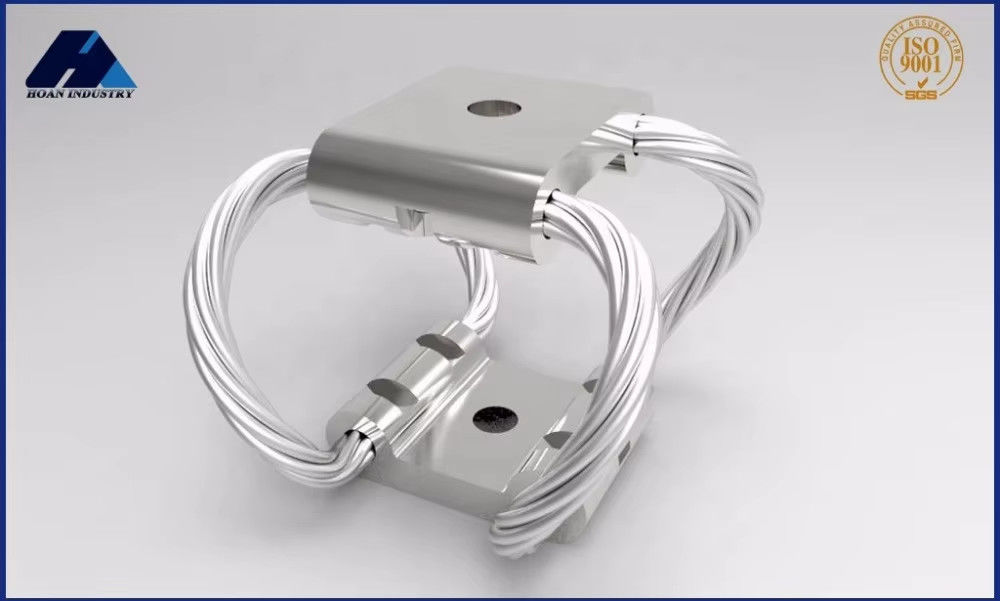

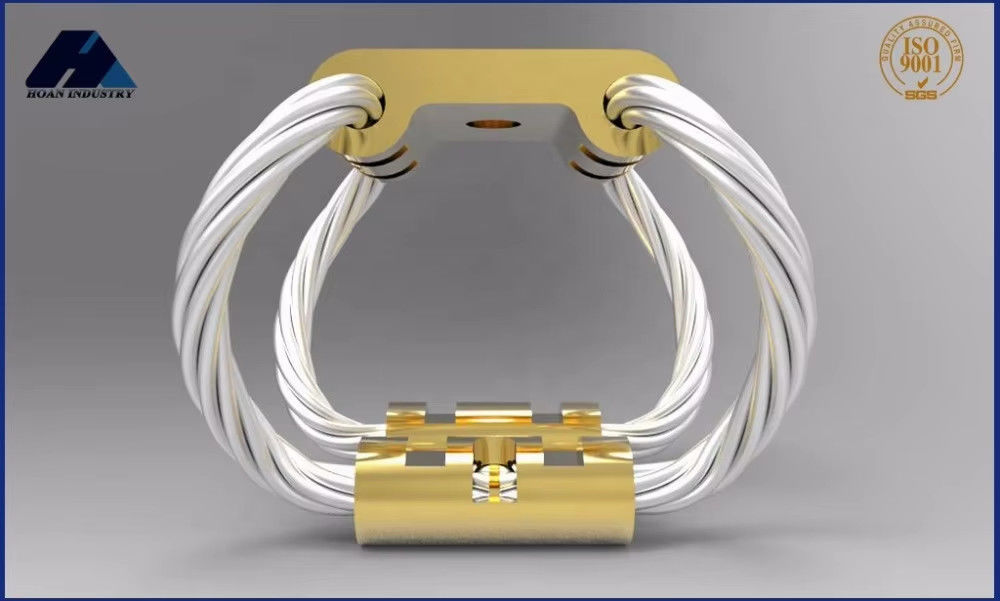

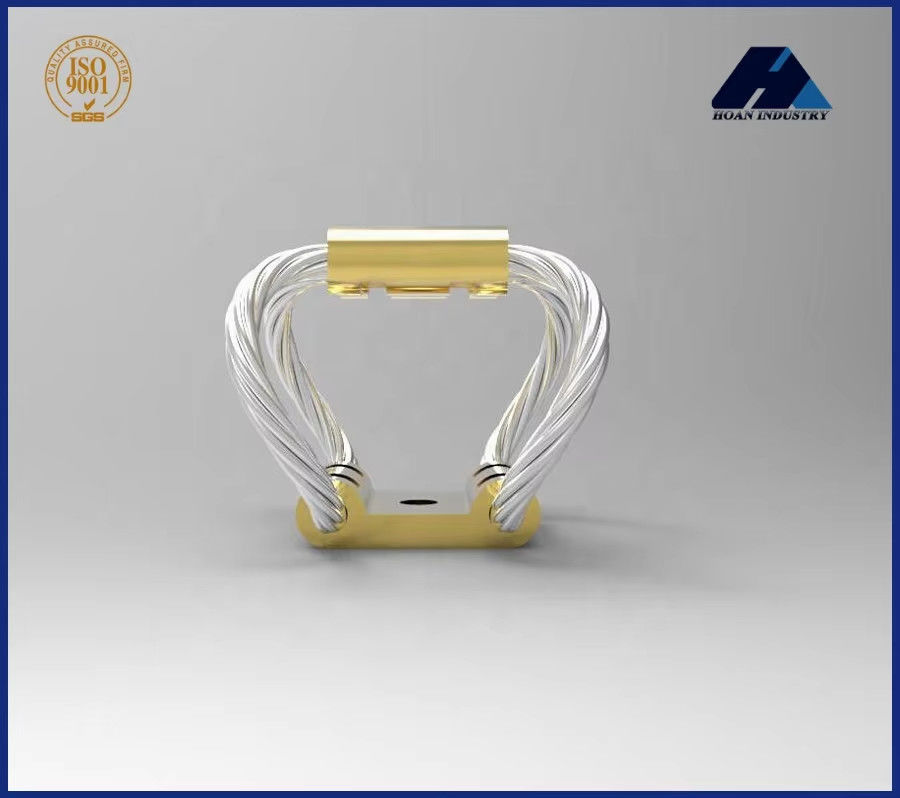

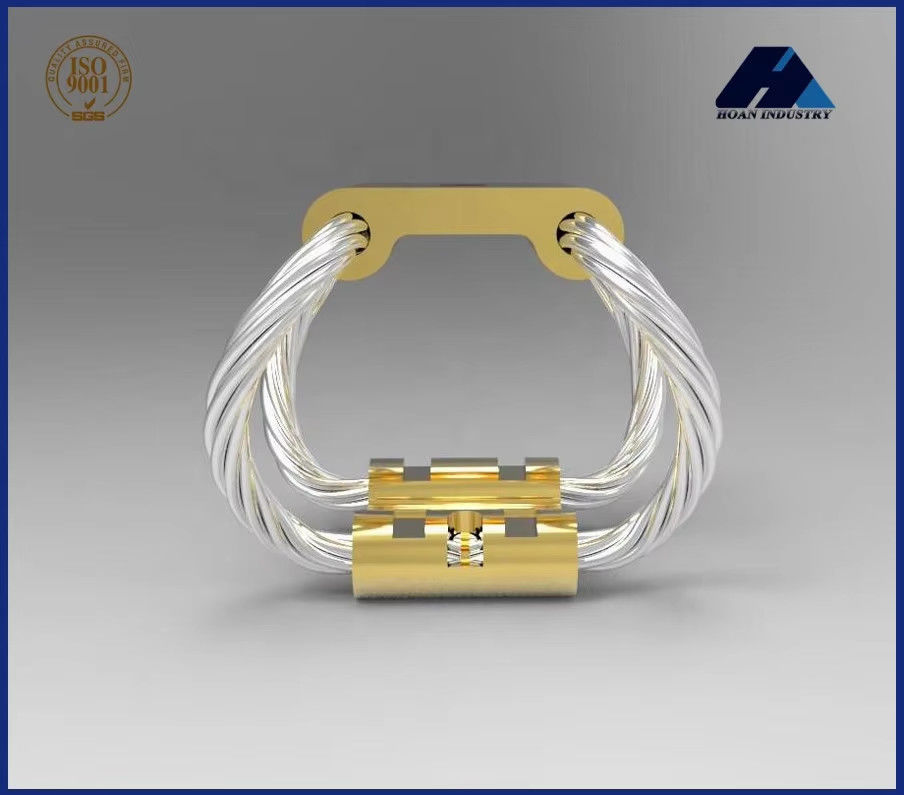

Xi'an Hoan's GR Type Wire Rope Vibration Isolator is a stabilized device specially designed for drones, which provides a stable shooting platform for drones through precision wire rope design and advanced damping technology. This isolator is designed to reduce the vibrations generated by the drone during flight, thereby improving the quality of aerial images, reducing blur and out-of-focus, and increasing pilot productivity.
The GR type wire rope isolator is designed to take into account the diversity and complexity of the UAV, so it is highly adaptable. It is compatible with many models of drones and can be adjusted according to the size and weight of the drone to suit different shooting needs.
The installation and use process of GR type wire rope vibration isolator is very simple. Most models are equipped with a quick-install system, which allows the pilot to mount the isolator to the drone in a short time and quickly adjust it to the right position.
The application of Xi'an Hoan's GR type wire rope isolator in drones has proven its superiority in stabilizing images. With the continuous progress of technology and the expansion of application fields, we have reason to believe that GR wire rope vibration isolator will play a more important role in the future UAV market, bringing more possibilities for UAV shooting and application.
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR5-80D-A | 80 | 19.6 | 22 | 11 |
| 2 | GR5-38D-A | 38 | 28.7 | 11 | 4.4 |
| 3 | GR5-27D-A | 27 | 34.8 | 7.9 | 3.2 |
| 4 | GR5-16D-A | 16 | 49.3 | 4.4 | 1.4 |
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR5-80D-A | 24 | 18.3 | 12 | 6.1 |
| 2 | GR5-38D-A | 13 | 28.4 | 5.3 | 2.3 |
| 3 | GR5-27D-A | 11 | 36.1 | 3.6 | 1.4 |
| 4 | GR5-16D-A | 6.7 | 53.8 | 1.9 | 0.7 |
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR5-80D-A | 20 | 16.5 | 4.4 | 4.4 |
| 2 | GR5-38D-A | 13 | 25.7 | 2.1 | 2.1 |
| 3 | GR5-27D-A | 11 | 32.5 | 1.4 | 1.4 |
| 4 | GR5-16D-A | 6.7 | 48.5 | 0.7 | 0.7 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
