Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR6-67D-A
GR6 Series

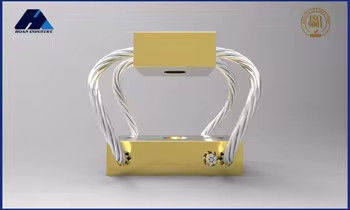

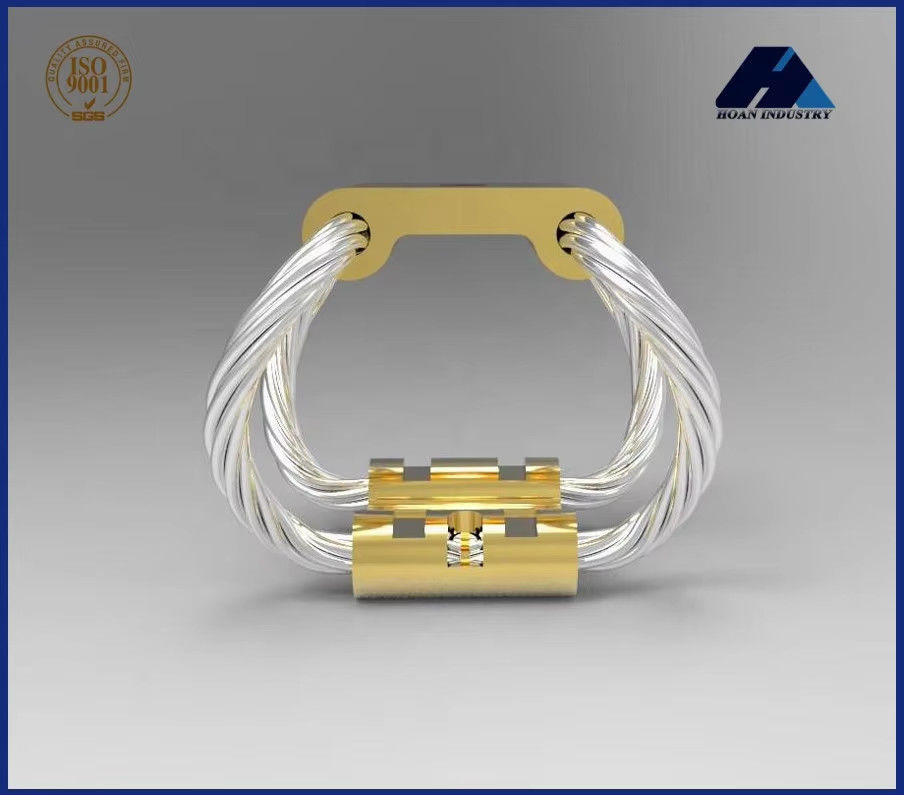

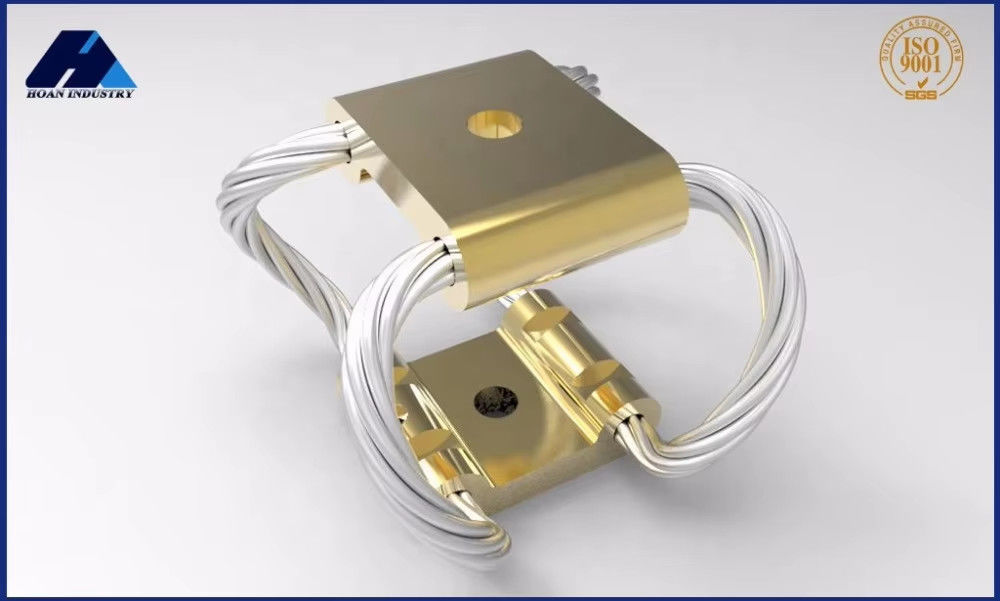

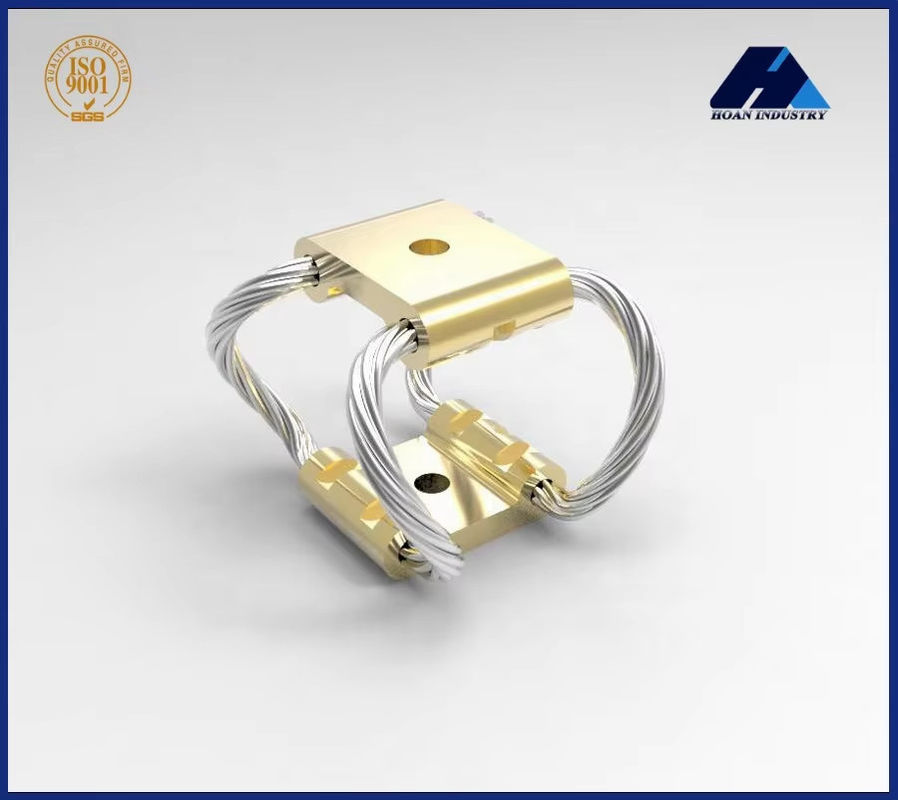

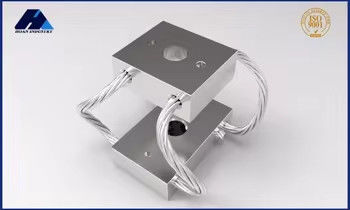

GR Series isolators excel at eliminating small vibrations, whether they are small rhythmic vibrations during travel shots, or sudden, intense vibrations such as stones or potholes when traversing rough terrain. This stability is essential for photographers who are looking for high clarity and smooth images.
The stainless steel material of the vibration isolator ensures its durability in all climatic conditions. Whether it's a humid environment or extreme temperature changes, the GR Series isolators maintain their performance and are not prone to rust, which is especially important for outdoor shooting.
GR Series Isolators are designed with the user experience in mind, and the installation process is quick and easy, without the need for specialized tools or complex setup. In addition, its modular design facilitates later maintenance and replacement of components.
Xi'an Hoan's GR Series Wire Rope Isolators have become the stabilizing device of choice for professional photographers and videographers in a variety of shooting environments due to their superior stability, durability and adaptability. With the continuous expansion of application fields, the GR series vibration isolators will continue to play their leading role in the field of stabilized image technology to provide users with a better shooting experience.
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR6-142D-A | 142 | 22.1 | 32 | 16 |
| 2 | GR6-93D-A | 93 | 29.5 | 20 | 9.6 |
| 3 | GR6-67D-A | 67 | 37.6 | 15 | 5.3 |
| 4 | GR6-36D-A | 36 | 51.6 | 7.9 | 2.6 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR6-142D-A | 40 | 22.9 | 16 | 7.9 |
| 2 | GR6-93D-A | 33 | 30.5 | 9.6 | 5.3 |
| 3 | GR6-67D-A | 22 | 38.1 | 7.9 | 2.8 |
| 4 | GR6-36D-A | 13 | 53.3 | 3.5 | 1.2 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR6-142D-A | 40 | 20.6 | 7.9 | 7.9 |
| 2 | GR6-93D-A | 31 | 27.4 | 4.4 | 4.4 |
| 3 | GR6-67D-A | 22 | 34.3 | 2.6 | 2.6 |
| 4 | GR6-36D-A | 16 | 48.0 | 1.6 | 1.6 |
