Name: JMZ-TK-6A New Product 2025 Long-lasting Vibration Isolator Spring Isolator Fits Most Standard Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK-6A
Availability: InStock

Home > Products > Spring Isolator >

JMZ-TK-6A New Product 2025 Long-lasting Vibration Isolator Spring Isolator Fits Most Standard Equipment

New Product 2025 Vibration Isolator

Long-lasting Spring Isolator

Fits Most Standard Equipment Friction Damping Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JMZ-TK-6A

Request A Quote

Product Details

Durability:

Long-lasting

Marketing Type:

New Product 2025

Compatibility:

Fits Most Standard Equipment

After Warranty Service:

Online Support

Core Components:

Bearing

Resilience:

High

Shock Absorption:

High

Dimensions:

Varies Depending On Model

Machinery Test Report:

Not Available

Product Keywords:

Friction Damping Isolators

Noise Reduction:

Effective

Product Load Capacity:

Customizable

Load Capacity:

Varies Depending On Model

Design Style:

Industrial

Application:

Industrial, Commercial, Residential

Highlight:

New Product 2025 Vibration Isolator

Long-lasting Spring Isolator

Fits Most Standard Equipment Friction Damping Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Get Best Price

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Get Best Price

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

Get Best Price

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Get Best Price

86-29-88292913

Contact Now

Product Description

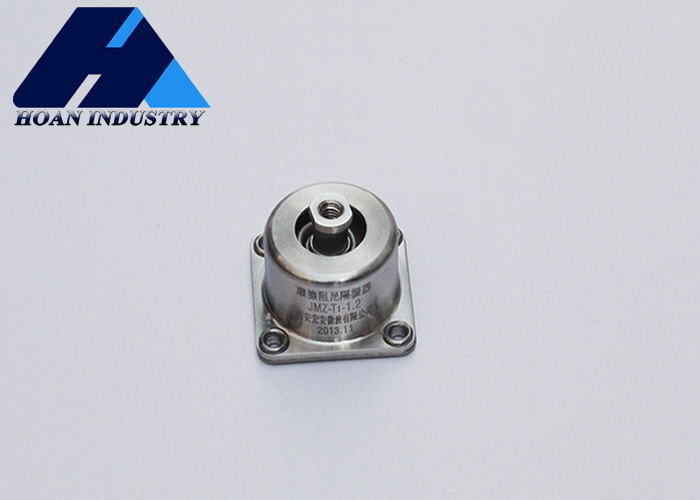

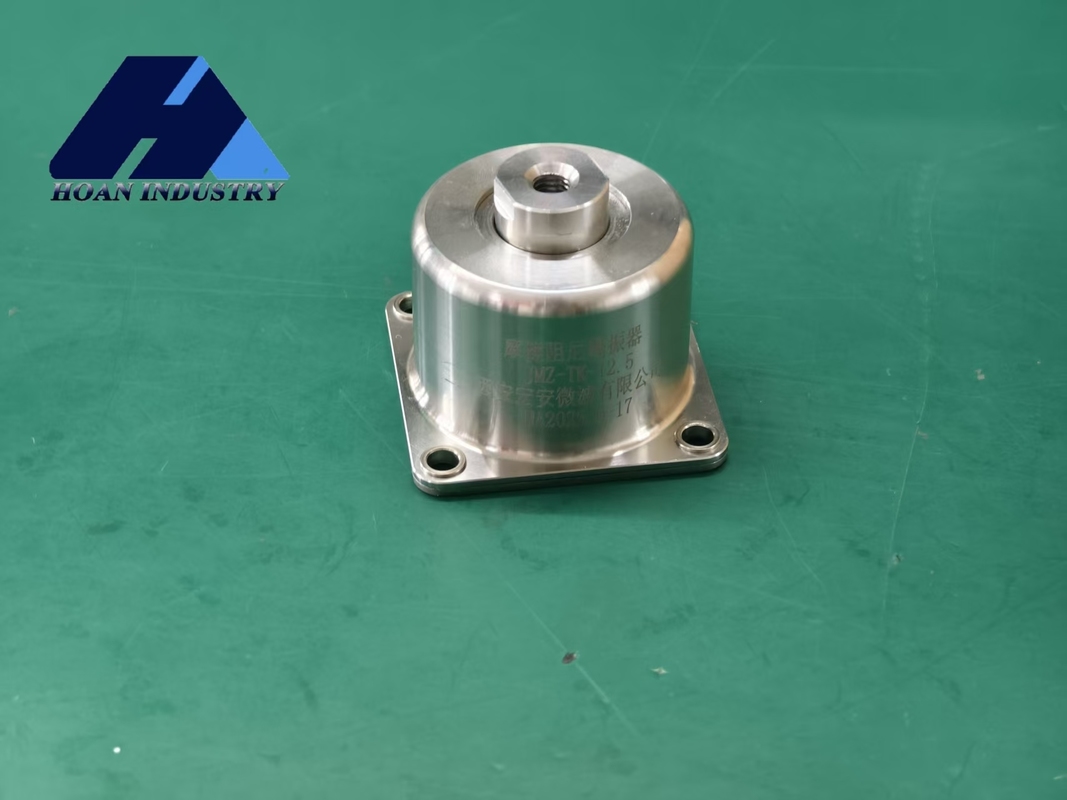

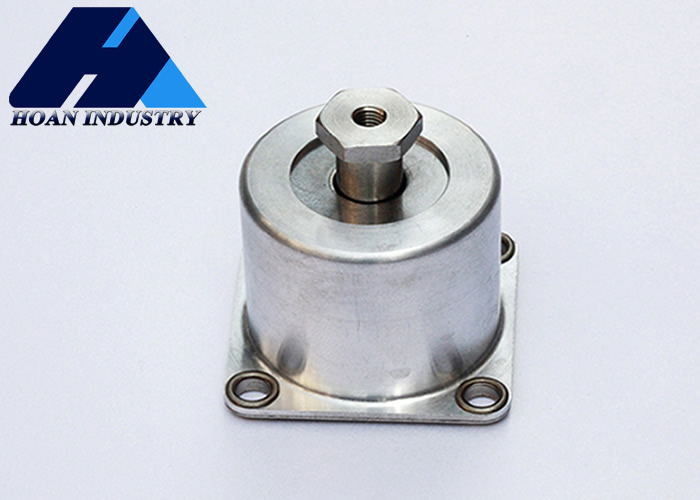

JMZ-TK-6A Vibration Isolators

The Perfect Combination of Durability and Reliability in Harsh Conditions

JMZ-TK Series

Robust and Durable, Undaunted by Harsh Environments -- The Reliability Engineering of JMZ-TK Vibration Isolators

Engineered to withstand severe real-world conditions, JMZ-TK series friction damping vibration isolators maintain stable operation in challenging environments including humidity, salt spray, extreme temperatures, and dust. Designed with reliability as the core principle by Xi'an Hoan Microwave Co., Ltd.

Material-Level Reliability Assurance

Key friction pair components constructed from high-performance wear-resistant composite materials and special alloys
Rigorously tested materials feature low creep, anti-aging, and corrosion-resistant properties
Maintains stable mechanical performance and precise friction coefficients under long-term loads
Housing and connecting parts made of galvanized steel or stainless steel with multi-layer protection
Meets IP rating protection requirements and resists moisture and corrosive gas erosion

Structural-Level Reliability Design

Compact structure eliminates complex moving joints and vulnerable flexible membranes
Finite element analysis optimizes structural stress to prevent plastic deformation
Unique locking mechanism prevents detachment during transportation or installation
Enhanced system safety through robust engineering design

Process-Level Reliability Control

Xi'an Hoan's comprehensive quality management system ensures strict control from raw materials to finished products. Precision tooling and equipment handle critical processes including:

Friction pair preload application
Damping force calibration

Guaranteeing every JMZ-TK vibration isolator delivers consistent, reliable performance.

Structural Dimension Diagram

Model	B	M	d	A	C	∅1	∅2	H1	H2
JMZ-TK-2.5A～8A	46	6	4.1	58	20	55	22	36	3.6
JMZ-TK1-25A/40A/50A	63	12	8.2	78	20	70	22	56	6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Limit Displacement			Maximum Vibration Transmissibility ηv≤	Impact Resistance Test	Service Life (year)
					up(δ1)	down(δ2)	horizontal (δ3)
JMZ-TK-2.5A	25	20～30	33	42	4	4	4	3	100g	10
JMZ-TK-4A	40	30～50	33	42	4	4	4	3	100g	10
JMZ-TK-5A	50	40～60	33	42	4	4	4	3	100g	10
JMZ-TK-6A	60	50～70	33	42	4	4	4	3	100g	10
JMZ-TK-7A	70	60～80	33	42	4	4	4	3	100g	10
JMZ-TK-8A	80	70～90	33	42	4	4	4	3	100g	10
JMZ-TK1-25A	250	200～300	20	70	7	8	7	3	60g	10
JMZ-TK1-40A	400	300～480	20	70	7	8	7	3	60g	10
JMZ-TK1-50A	500	400～600	20	70	7	8	7	3	60g	10
